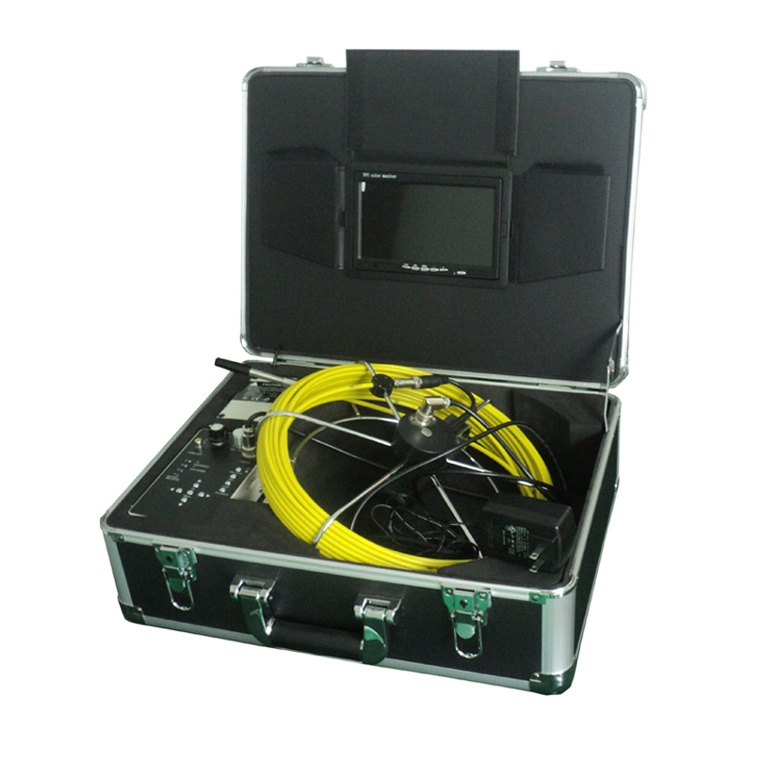

Mini-Pipe Camera for Wall Inspection (V7-35)

Name: Mini-Pipe Camera for Wall Inspection (V7-35)
Brand: ibuyautoparts.com
SKU: 716698795
Availability: InStock
Rating: 4.8 (33 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V7-35
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof CCTV Inspection Camera:	Fixed Focus Lens Camera
Certification:	UL, FCC

Product Description

Mini-Pipe Camera for Wall Video Inspection

Wall Inspection Camera Head
* Camera size Φ 12mm
* Sensor size 1/5 inch
* View angle 60°
* Camera work current 100mA
* Camera power supply DC 3.3V
* Camera light 4 PCS white LEDs
* Total Pixels PAL 720× 576; NTSC 720× 480
* Camera glass material sapphire glass
* Camera shell material alumina

Monitor
*7 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V DC work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery pack power supply (18650 X 6 PCS 4400mAh)
* Charging time 5 hours, working time 7 hours

Cable Reel
* Cable size Φ 320mm× 110 (h)
* Wire material fiberglass rod
* Fiberglass length 20m (standard)
* Fiberglass rod cable diameter Φ 5.2mm

Carrying case
* Aluminum Carrying case size: 460X 340 X 190mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
