Metal Honeycomb Catalyst /Substrate
| Price: |
US $ 20/Piece |
| Trade Terms: |
CFR,CIF,DAT |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our main products: Honeycomb metal catalyst for auto, motorcycle, universal engine exhaust system, including gasoline engine and diesel engine. Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications .
Product Description :
| Brand | WISDOM |
| Material | metal meterial |
| Size | more sizes and Spec. Can be customized to your engine |

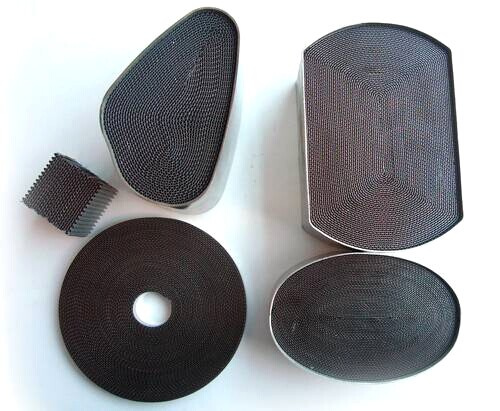

| Shape | Round/ Racetrack/Oval
"T" series(one hole)/ "S" series (Two holes) |
| Certification | ISO9001 |
| MOQ | 1 Piece |
| Packaging | all product package can be customized based on your requirements |
| Payment terms | L/C, T/T, Money Gram, Western Union |
| Conversion Rate | CO≥96,HC≥95,NO≥90 |
| Coating losing rate | ≤3 |
| Scope | apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Advantage | Low initiation temperature |
| Low pressure drop |
| High mechanical strength |
| Excellent thermal and coking resistance |
| Reliable braze welding intensity |
| Durable heat-resisting impact performance |
| Perfect catalyst coating binding force |
| Good anti-shock |
| Service life | Above 120,000 KM |
| Price | The price is different in different specifications between USD1 and USD100. |
Specifications: Material | Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
or Austenitic heat resistant stainless steel
(SUS304) |
Dimension and Cell Densitities| Dimensions, mm | Cell densities,CPSI | Foil thickness,mm |
| round shape with diameter more than 10mm, length up to 800mm | 50, 100, 200,250,300,400,500,600,800,1000 | 0.03,0.04, 0.05,0.06,0.08,0.10 |
| Oval shape |
| Others (Rectangle etc.) |
| Mantle, mm | Matrix, mm | Density, CPSI | Material of mantle | Material of Matrix |

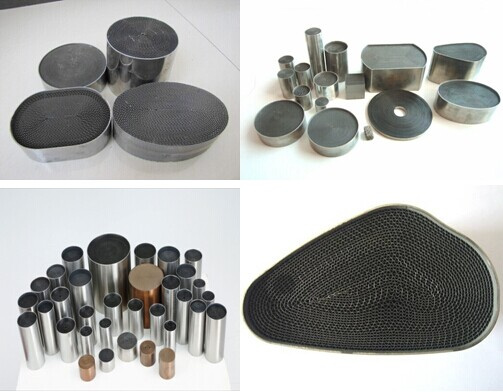

| Round Metallic Substrate |
|
|
|
|
| 30x22 | 28X20 | 100/200/300/400 | 441 | FeCrAl |
| 35x20 | 33X20 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø35 x 70/100/130 | Ø33 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø42 x 70/100/130 | Ø40 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø45 x 70/100/130 | Ø43 x 60/90/120 | 100/200/300/400 | 444/441 | FeCrAl |
| Ø63.5 x 85/100/130 | Ø60.5 x 74.5/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø73 x 70/100/130 L | Ø70 x 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø93 x 70/100/130 | Ø90 x 60/90/120 | 200/300/400 | 444/441 | FeCrAl |
| Ø420 x 100/130 | Ø416 x 90/120 | 300/400 | 444/441 | FeCrAl |
| Ø100.3 x 100/130 | Ø98.3 x 90/120 | 600 | 444/441 | FeCrAl |
| Oval Metallic Substrate |
|
|
|
|
| 123x63x 85 | 120x60 x 75 | 200/300 | 304/441 | FeCrAl |
| 123x63)x 100 | 120x60 x 90 | 200/300 | 304/441 | FeCrAl |
| 78.5x52x104 | 76.5x50x90 | 200/300 | 304/441 | FeCrAl |
Why metallic?A metal-based monolith substrates offers many advantages in comparison with a ceramic one, for instance :Shorter light off timeLess risk of overheatingLess back pressureLarger effective areaGreater catalytic capacitySmaller and more flexible designThinner wallsHigher mechanical strengthBetter resistance to thermal shockMark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.
More information you may interested:
WISDOM Technologies is a founder and leader in Research and development,manufacturing of metallic substrate in China.more than 10 years of experience and constant further developments ensure that our products are of the highest quality and always competitive.We can customize according to specification metal honeycomb from you.
Our product lines include honeycomb seal for turbine machines, such as aero engines, steam turbines, gas turbines and industrial turbo machines, metallic honeycomb products including aerospace quality honeycomb core materials, honeycomb flow straightened and honeycomb rolls for nonwoven, products and metallic catalytic converter for automobile, Infrared Gas Stove, etc.
Quality Assurance. According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality.manages to make sure the products keep updated, and be well received by users.

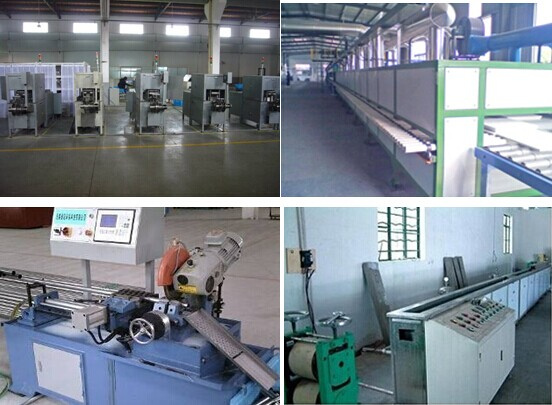

Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and corrugated machine, foil wash machine,etc.
Principle. "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.
Welcome. We warmly welcome friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.
For more information on metal honeycomb, go to http://www.metalhoneycomb.com/about.html
| Prod Model: |
WISDOM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Wisdom |
| Substrate: |
Metal Substrate |
| Size: |
More Sizes |
| Shape: |
Can Be Customized to Your Requirement |
| Durability: |
Above 120,000 Km |
| Car Make: |
Universal |
| Place Of Origin: |
Shanghai, China (Mainland) |
| Warranty: |
12 Months |
| Scope: |
Apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
| Certification: |
ISO9001 |
| Component: |
Catalytic Converter |
| Body Material: |
Ss/Fecral |
| Discharge Standard: |
Euro III.Euro IV, Even Higher Standard |
| Main Market: |
Global |
