Medium Pressure 21 MPa Hydraulic Line Filter Housing

Medium Pressure 21 MPa Hydraulic Line Filter Housing
Price: US $ 70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: 030, 060, 110, 160
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Oil Filter
Material: Fiber
Structure: Hydraulic Filter
Application: Liquid
Brand: Tianrui

Product Description

DESCRIPTION
It is installed in the hydraulic pressure system to filter solid particle and slimes in medium and effectively control cleanliness.

Differential pressure indicator and by-pass valve can be assembled according to actual requirement.

Filter element adopts many kinds of materials, such as inorganic fiber,

Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.

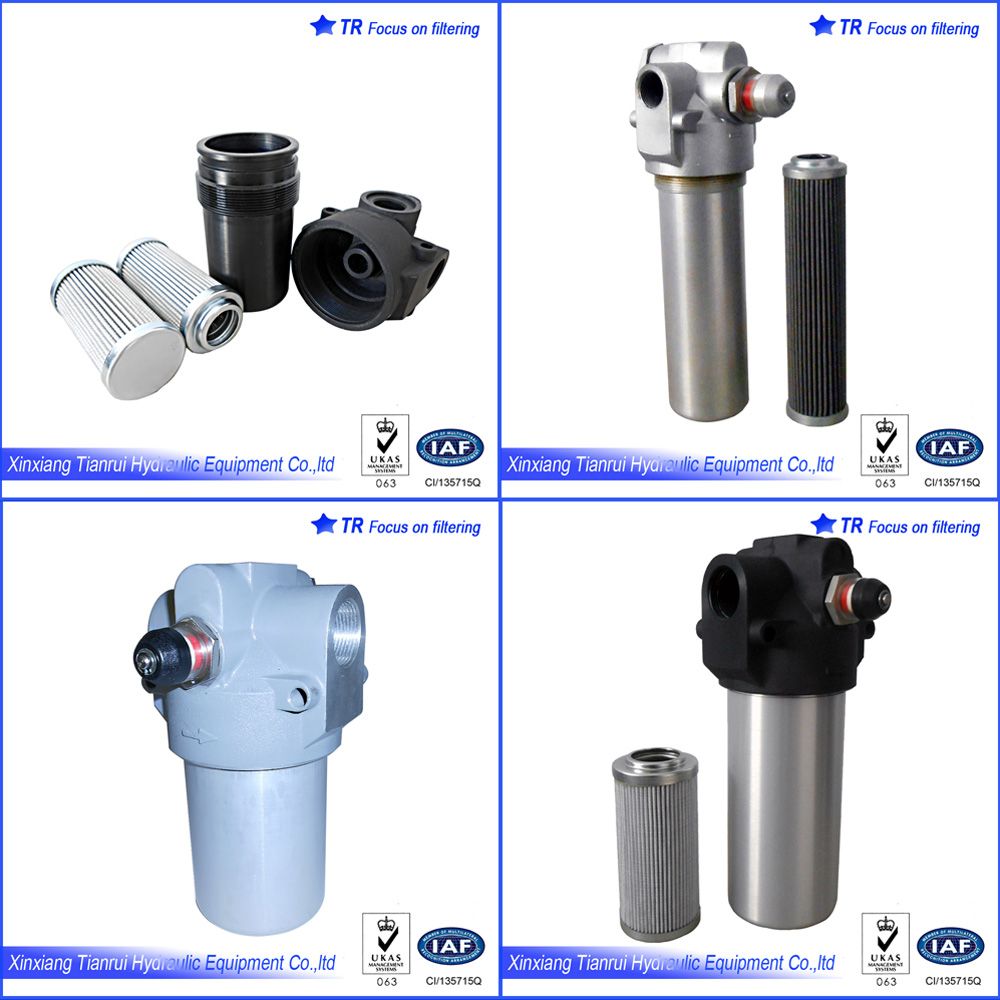

Filter vessel is cast in aluminum and has small volume, small weight, compact construction and nice looking figure.

TECHNICAL DATA

Operating medium: mineral oil, emulsion, water-glycol, phosphate ester (resin-impregnated paper just for mineral oil)

Operating pressure (max) 11MPa Operating temperature -25°C~110°C

Indicating pressure drop 0. 5MPa By-pass valve unlocking pressure 0.6MPa

CLEANING FILTER ELEMENT COLLAPSE PRESSURE UNDER RATING FLOW RATES(Unit1×105Pa Medium parameters30cst 0.86kg/dm3)



Type

Housing

Filter element

FT

FC

FD

FV

CD

CV

RC

RD

MD

MV

PMA030

0.28

0.85

0.67

0.56

0.41

0.51

0.38

0.53

0.48

0.66

0.49

PMA060

0.73

0.84

0.66

0.56

0.42

0.52

0.39

0.52

0.47

0.65

0.48

PMA110

0.31

0.85

0.67

0.57

0.42

0.52

0.39

0.52

0.48

0.66

0.49

PMA160

0.64

0.84

0.66

0.56

0.42

0.52

0.39

0.53

0.48

0.65

0.48

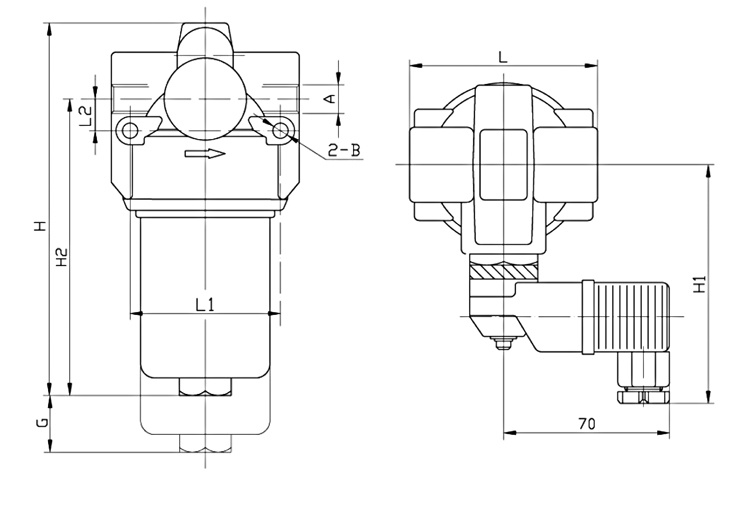

DIMENSIONAL LAYOUT



Type

A

H

H1

H2

L

L1

L2

B

C

Weight(Kg)

PMA030

G1/2 NPT1/2

M22.5X1.5

157

133

129

76

64

17

Φ6.5

60

0.65

PMA060

244

133

216

0.85

PMA110

G1

NPT1

M33X2

242

140

184

115

95

25

Φ8.5

1.1

PMA160

298

140

240

1.3



We Xinxiang Tianrui Hydraulic Equipment Co., Ltd here are located in Xinxiang, Henan-----Chinese Filtration Town. Our company are specialised in designing, manufacturing and selling different kinds of filters. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Our distinguished filters are not limited to following:

Hydraulic filter element;

Hydraulic filter strainer;

Air compressor filter element;

Vacuum pump filter element;

Notched wire element;

Dust collection filter cartridge;

Stainless steel filter cartridge and filter disc;

Aviation fuel filter strainer and elements;

Railway filter elements etc.

We have passed ISO9001: 2009 Quality certification, Our filter with high quality and good price, has been exported to many countries and regions like America, Germany, Poland, Greece, New Zealand, Austrilia, Iran, Indonesia etc.

If have any filter enquiry, we'll try our best to find solution for your filtration systems. We have high efficient salesman to reply your enquiry with 24 hours.
