Marine Diesel Engine Piston From China

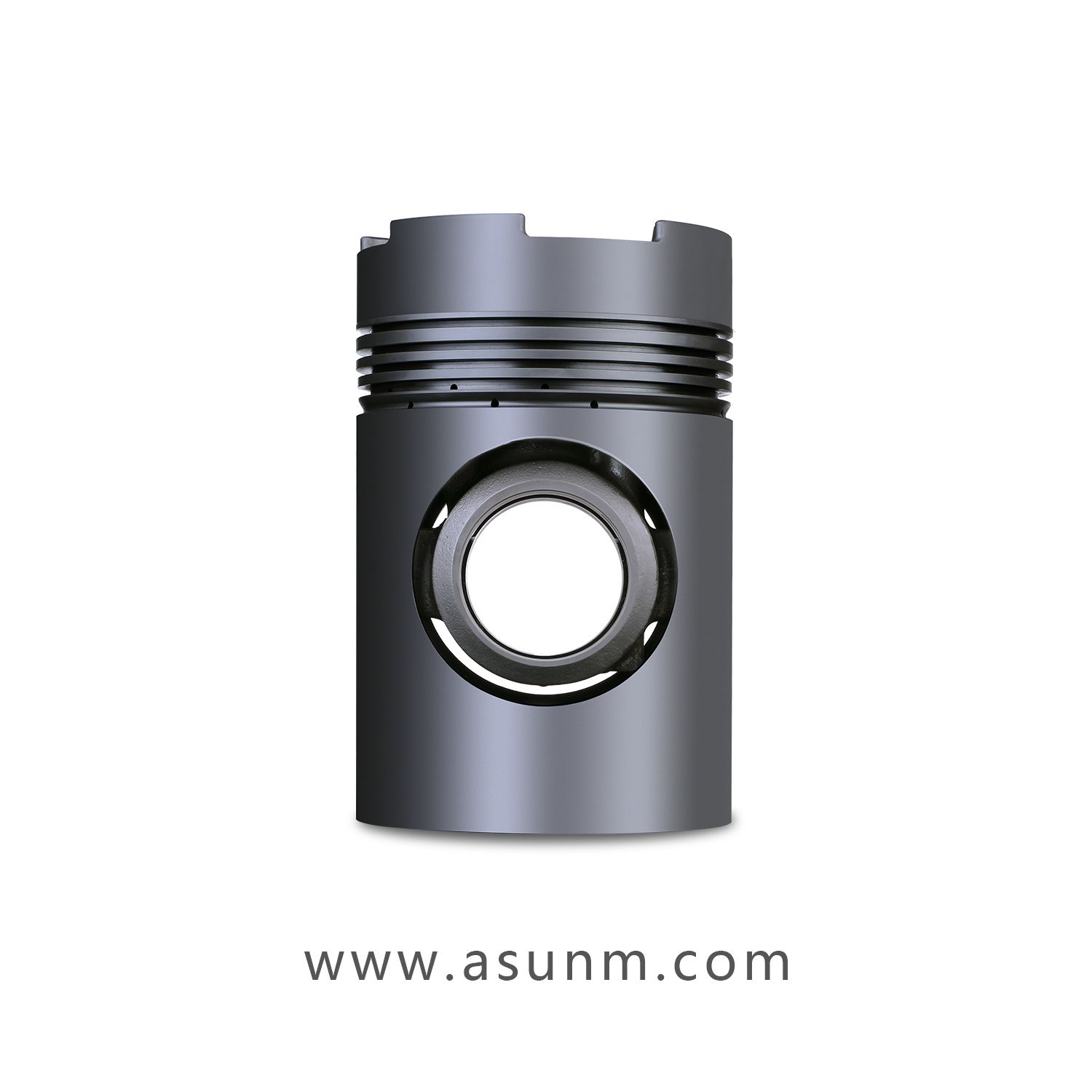

Name: Marine Diesel Engine Piston From China
Brand: ibuyautoparts.com
SKU: 830122485
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 917-1100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Application: Suitable for G300 engine. Must use together with Shangde cylinder liner (GN-03-002*SD.C).

Product description:

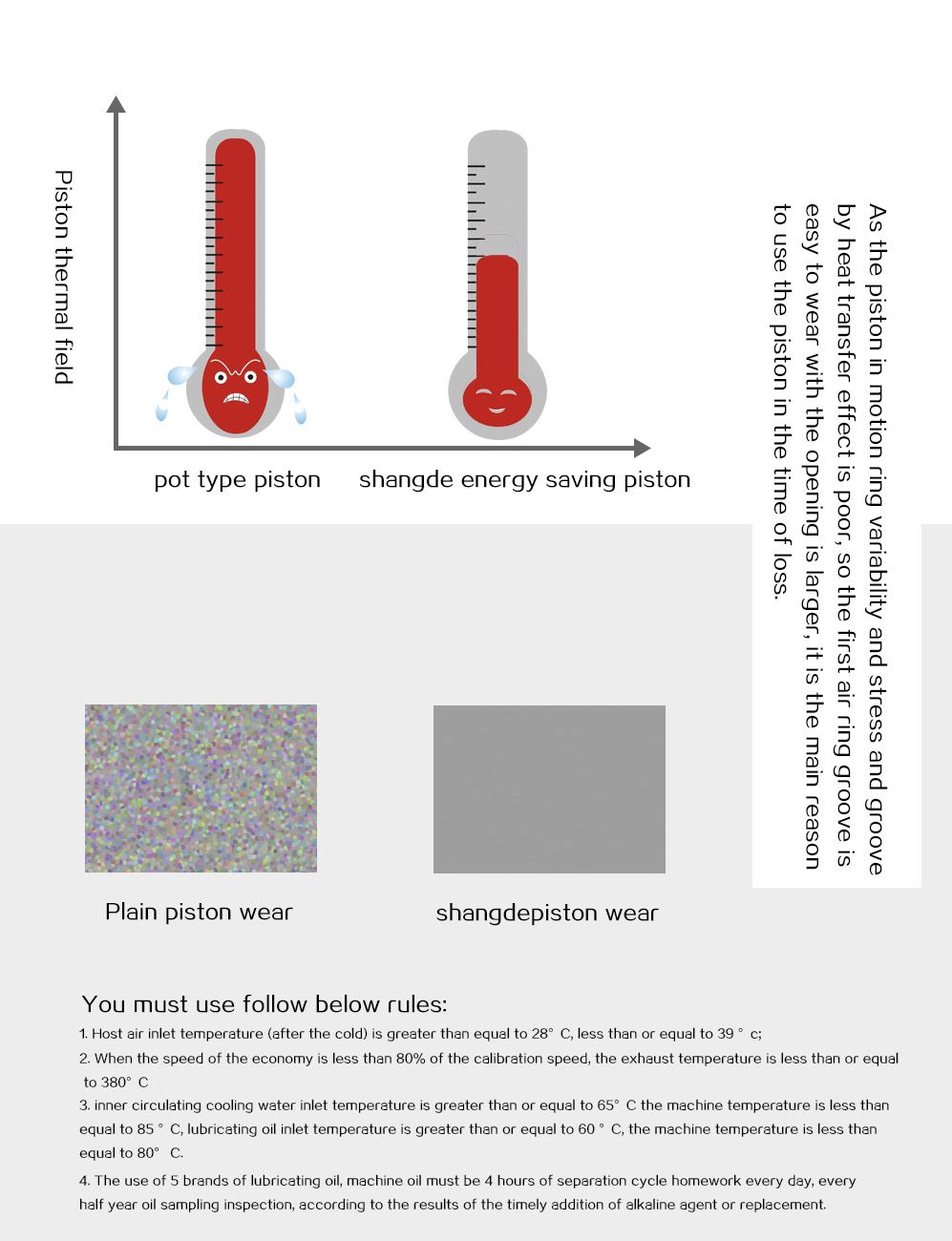

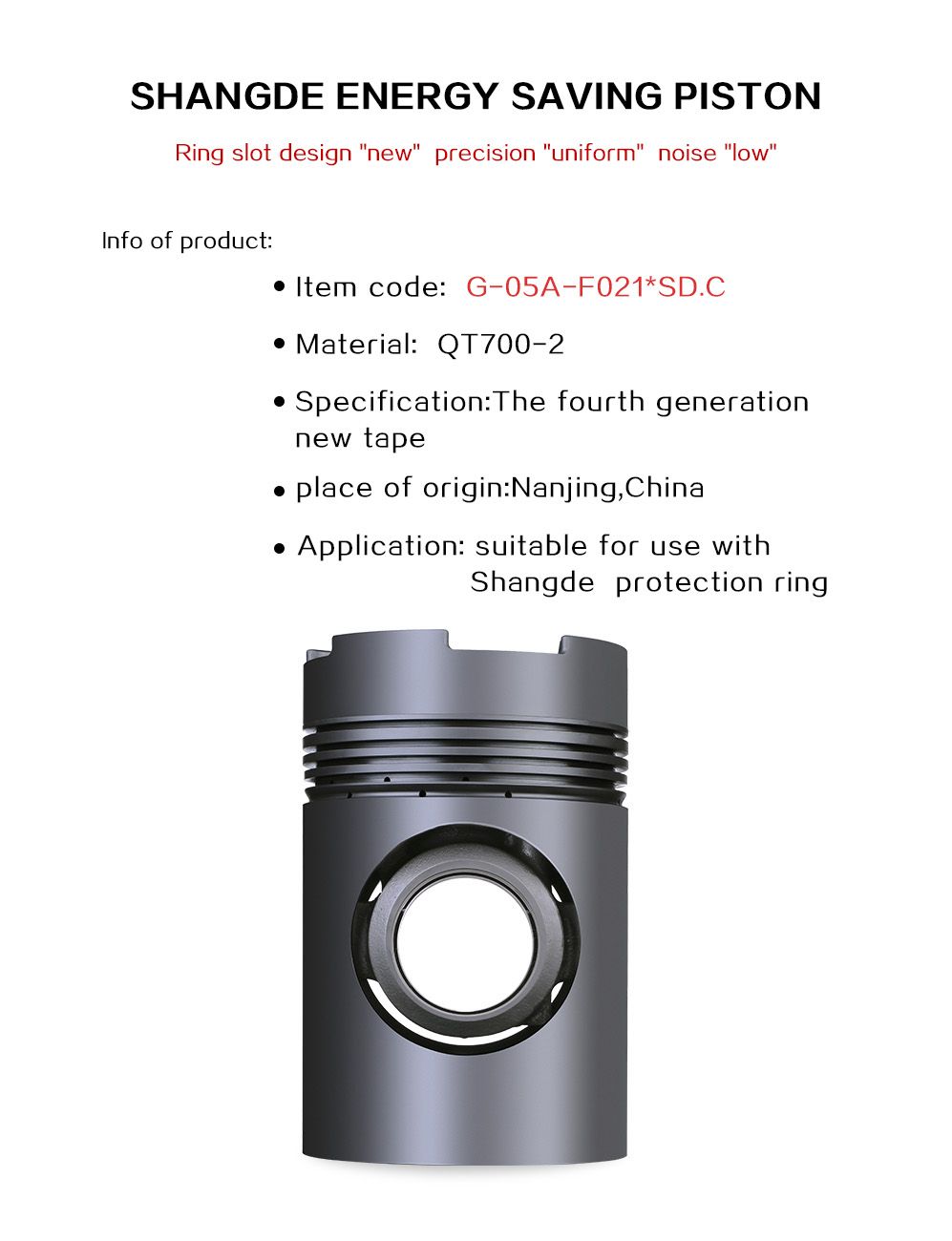

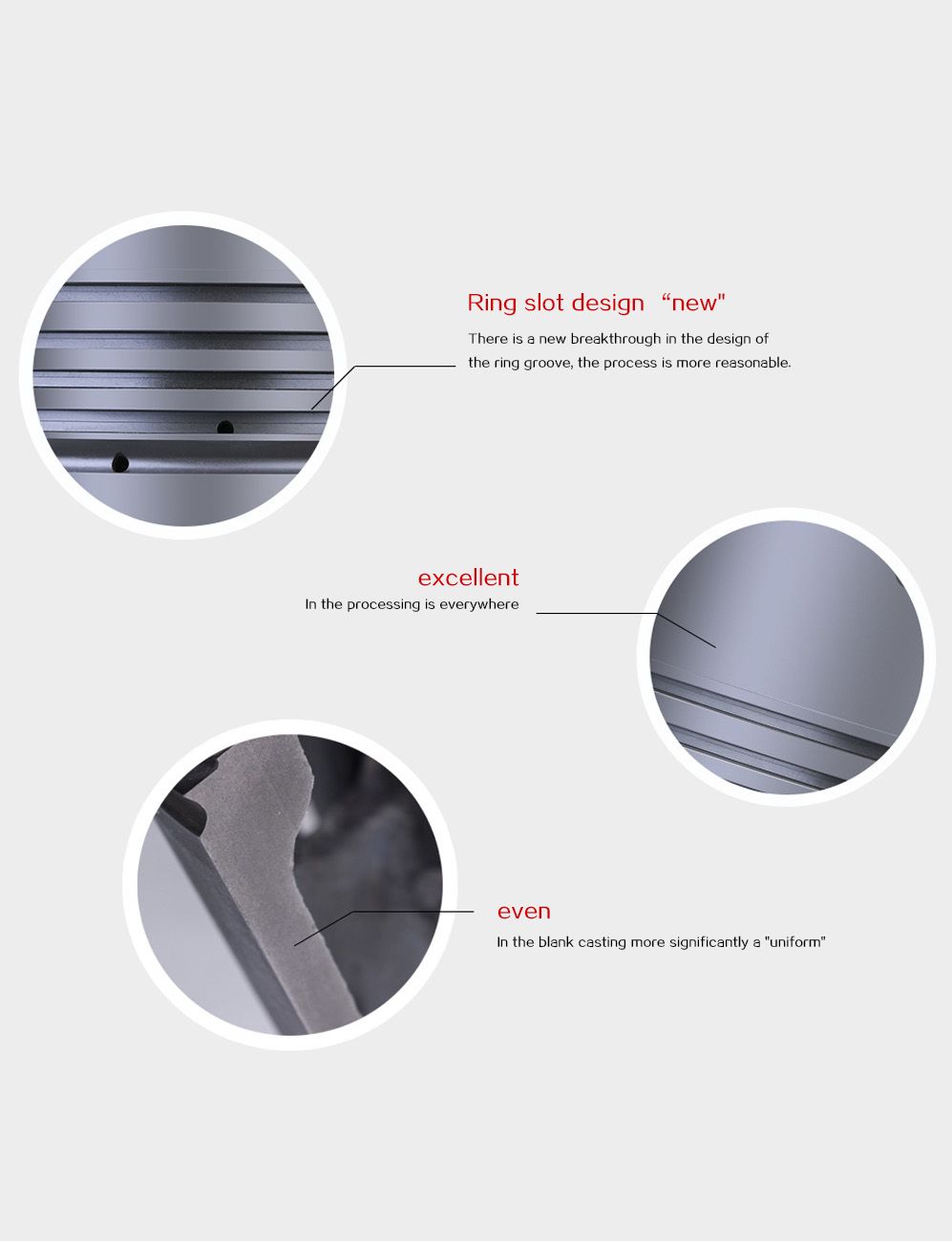

Inner diameter is Ф 280mm with fasten bolt M16×1.5.Fourth generation piston (c type) is newly designed based on research on temperature and thermal explanation of the previous generation (B type). Now this piston can serve longer and can even protect cylinder liner and piston rings. This piston is expected to be used for more than 5 years without any repairment. A combination use with Shangde cylinder liner (GN-03-002*SD.C)and piston rings (GN-05-002/3/4/5*SD.C1 )will further lower engine oil consumption and longer useage.

Please carefully read the following rules before use :

1. Temperature of cooling liquid inflow and outflow should be no less than 65ºC and no higher than 85ºC respectively. Temperature of lubricatin oil inflow and outflow should be no less than 60ºC and no higher than 80ºC respectively.

2. Please use qualified lubricating oil. Centrifuging is required on a daily bases. Please sampling inspect oil twice a year, and replace lubricating oil or add alkaline additive based on the test result.

Warranty:

We warrant the product against defects in materials and workmanship under ordinary consumer use for 10000 hours from the date of original retail purchase.Please strictly follow GN320 Diesel Maintenance Manual(refer the manual) and the rules above during operation.3 "R" warranty policy is not eligible in the event of a violation of the manual.

Prod Model:	G300-1
Weight:	63kg

Nanjing Shangde Diesel Engine Co., Ltd. is located in capital city of Jiangsu province - Nanjing, who has impressive geographic advantage at lower reaches of Chinese longest river. Our company was found in 2004. We devote ourselves to researching, developing, manufacturing, selling and after sale services in marine diesel engines and their main parts. As a high standard provider which both design and manufacture, we actively participate in marine industry with good reputation. Our offices and partners are widely spread across China including Jiangsu, Shanghai, Anhui, Wuhan, Chongqing, Zhejiang, Shandong, Tianjing, Dalian and Fujian, and we have established a long-term strategic partnership with major Chinese diesel engine manufacturers to provide a reliable service.

"Saving energy, reducing emission and improving efficiency" are core concepts of our company. Our own-brand oil saving products, including special heavy oil cylinder liner, piston, piston rings, valve, valve guide and valve seats, are designed under such core concepts. Application of these high quality and precise products have subverted the conventional use and achieved vast economic and social benefits.

Our company is equipped with professional sales engineers and specialist service teams. We will provide premier service with the most honest attitude, the most reasonable price, the best quality for our customers including but not limit on process of products selection, installation and alignment, technical training, and after-sale services.
