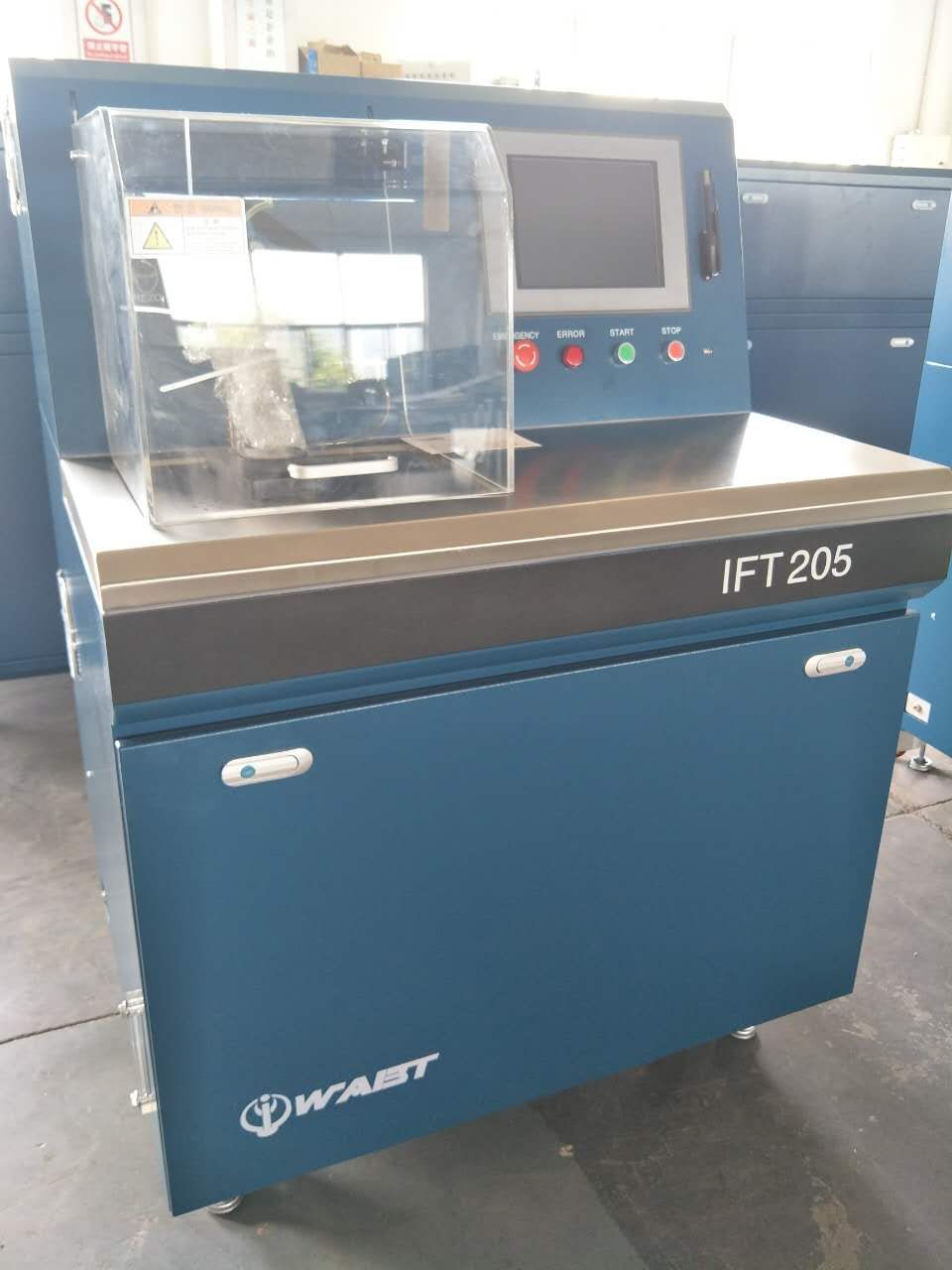

Manufacturer Supply Eco-Friendly Ift205 Common Rail Diesel Injector Test Bench

IFT205 control software has been containing more than 1500 kinds of common rail injector test data like BOSCH, Delphi, Denso, Carter, Cummings and piezoelectricity. Covering AT3 AT4 common rail injector in the market , with the test conditions of AT5, the maximum pressure up to 2200 kg, software and database upgrade regularly, remote download, convenient and quickly.
The precise measurement for oil volume of the above typical assessment points is called the multi-point precise measurement  of the common rail injector. The full load performance of common rail injector can be evaluated comprehensively.
The reasonable interval value of some oil volume is only about 6%, so the control precision and test accuracy of the test bench are high demand. Otherwise, the fault of common rail injector can be easily occurred.
Services provided from Wabtec for customer
1)The latest version of the control software and drivers
2)Equipment instructions and all kinds of injector maintenance manual
3)One year free warranty, efficient after-sales service.
4)Provide professional training in factory.


Quick Details
Power: Electronic
Usage: Auto Testing Machine
Color: blue or on request
Temperature range: 30-50ºC
Motor power: 3Kw
PLC: SIMENS

Main functions:
1. Test common rail injectors of CUMMINS, BOSCH, DELPHI, DENSO, CAT
2. Check the sealing  of CR injectors
3. Check the backflow and the injection volume under full-loaded status
4. Test the injection volume at the emission point
5. Test the flow volume of idling status
6. Test the pre-injected volume of the CR injectors
7. Clean the injectors while testing
8. Testing data could be saved and printed
9. Standard parameters settable
10. Determine the injectors are good or bad automatically

Main technical specifications:
1. Motor power: 3Kw
2. Variable frequency motor speed range: 0-3000rpm
3. Pressure  control range: 10-2000bar
4. Pressure control accuracy: ±3bar
5. Injection frequency setting range:
    100-1500 Times/min
6. Metering range of the flow meter:
     0.1ml-2000ml/1000 times
7. Fuel tank capacity: 40L
8. Filter accuracy: 5µm
9. Temperature range: 30-50ºC

Competitive Advantage:

• High Quality
• Reasonable Price
• Good after Service
• More Than 10 Years Experience
• NEW DESIGN
• EASY TO MAINTAIN
• Pump body sealing performance
• High-precision flow meter

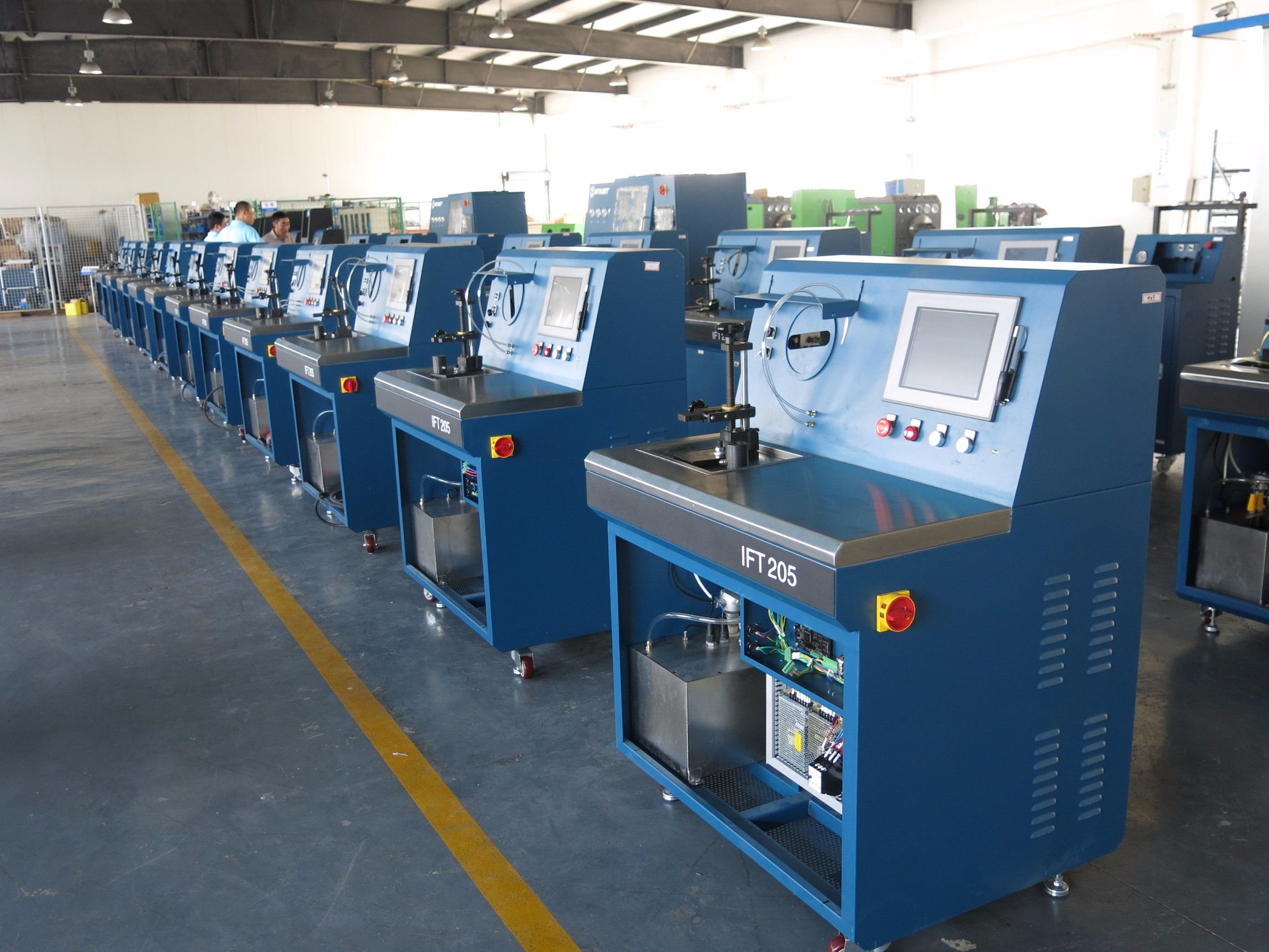

Factory Pictures:
