INTRODUTION:This BMWR-3 series wheelchair ramp can be used for van and minivan.
This ramp consists of three honeycombs penal which are hinged joint to fold and unfold. One of the advantages of this ramp is that the operation is completely manual, which is simple, easy, and safety. This is the best choice for the vehicle which floor is a little high and installation space is limited.
The ramp is mainly made from aluminum profile and honeycombs penal. We apply honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load capability and so on.
There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp unfolding by itself when emergency brake. There are two supports under the second ramp, which can ensure the reliability.
Because of the compact design, this ramp can be used for mini-vehicle such as wagon, light-van, van, and minivan and so on.
OPERATION:A. This ramp is locked by two buckles which are at the two sides of ramp. When needed, the operator should unlock the two buckles first.

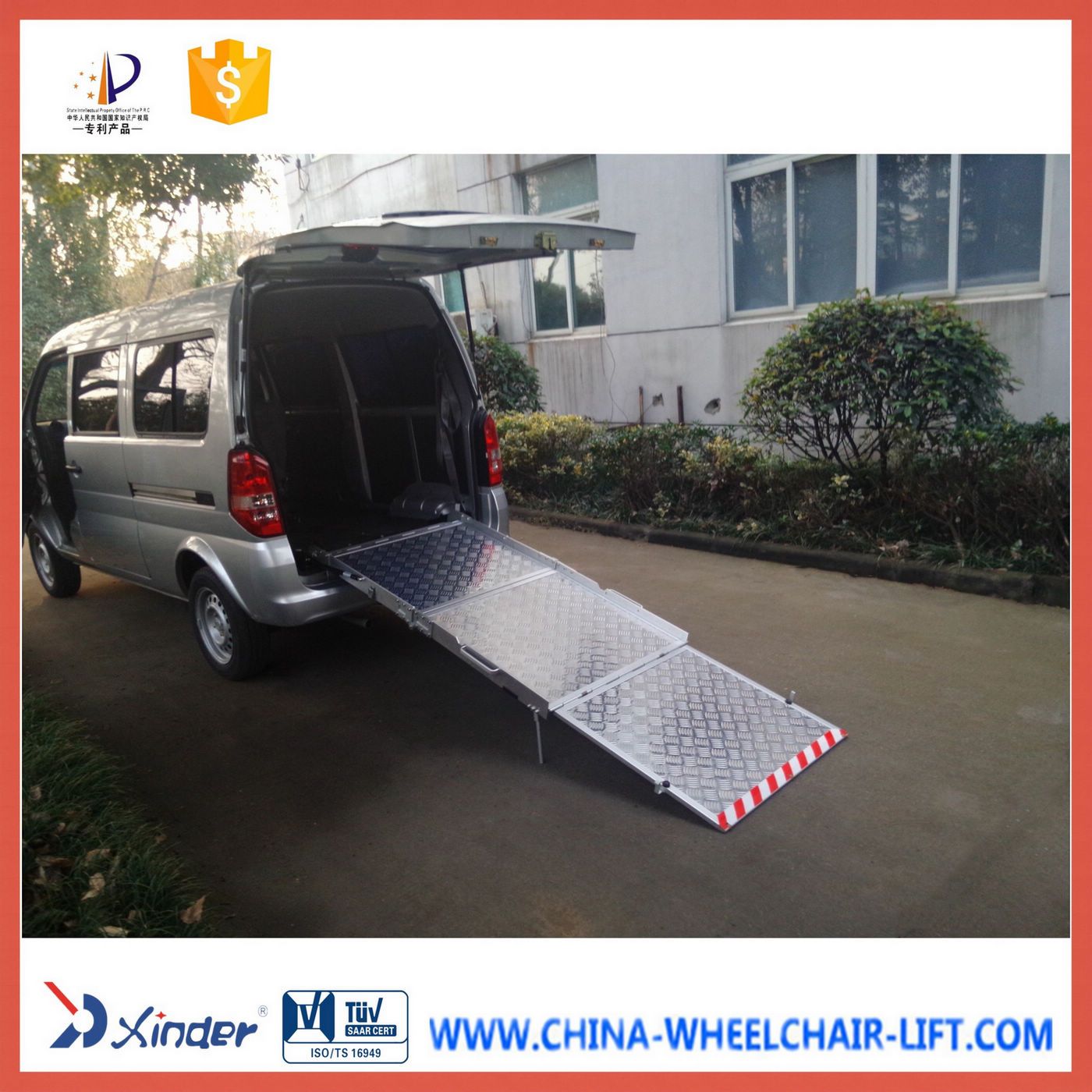

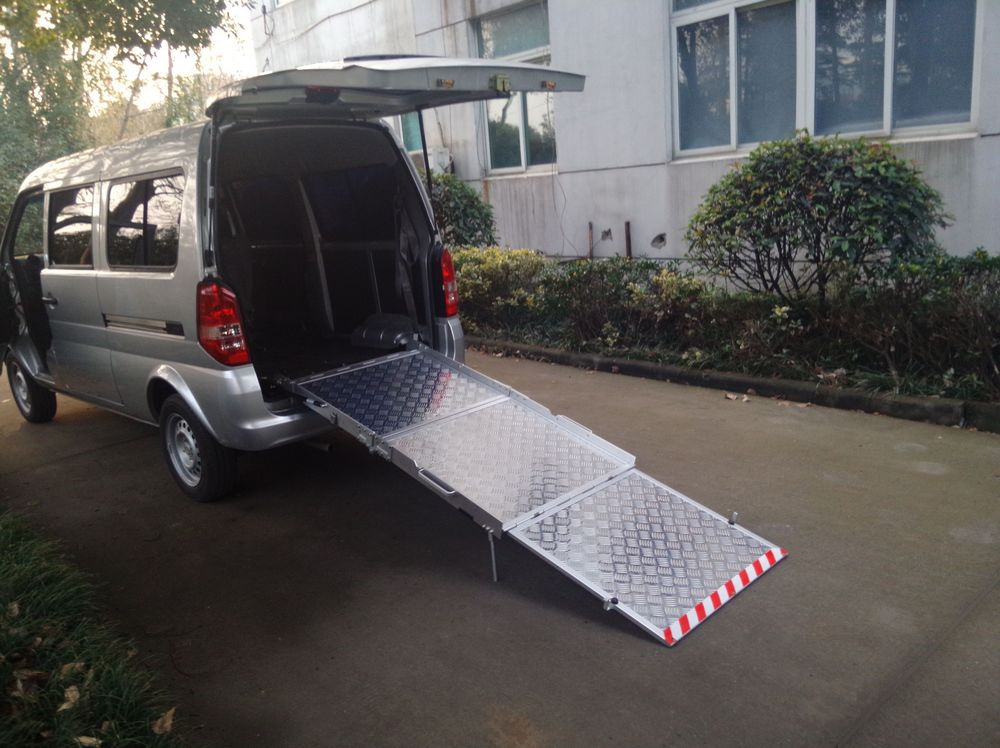

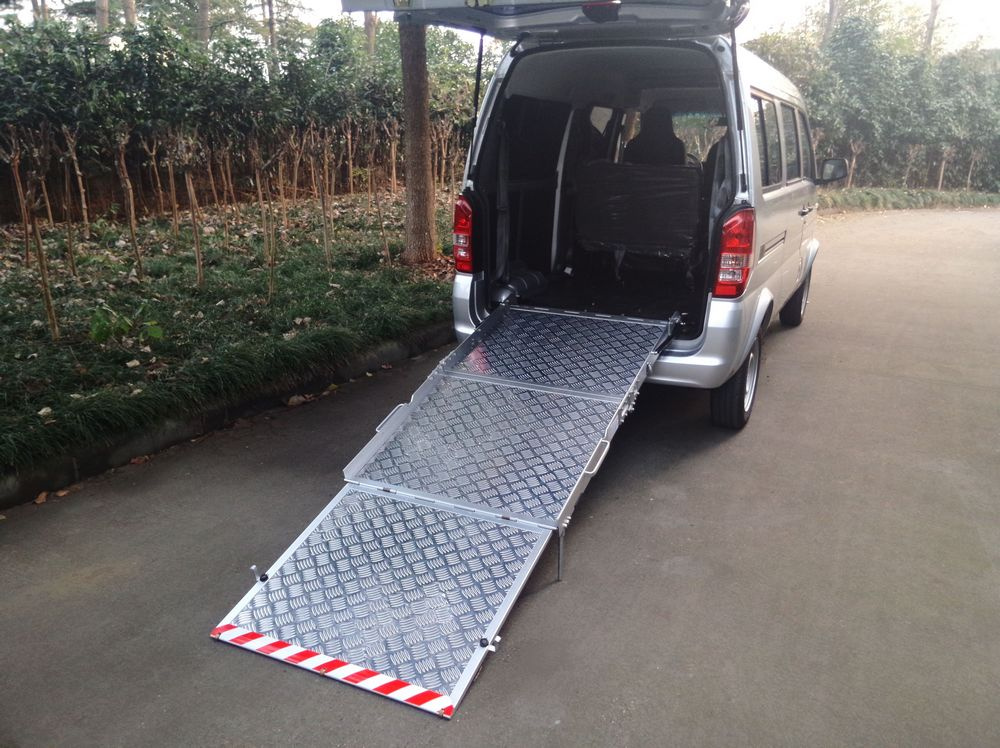

B. After the buckles are unlocked, hold the handrail and pull the ramp forward, so that the two pieces of ramps will form a slop which can help wheelchair get into/out of vehicle.
C. After the wheelchair get into/out of vehicle, fold the two pieces of ramps, and then lock the two buckles. This is the end of the operation
ADVANTAGESThis ramp is operated manually which is safety.
There are two gas springs at the two sides of ramp, which make the operation easy.

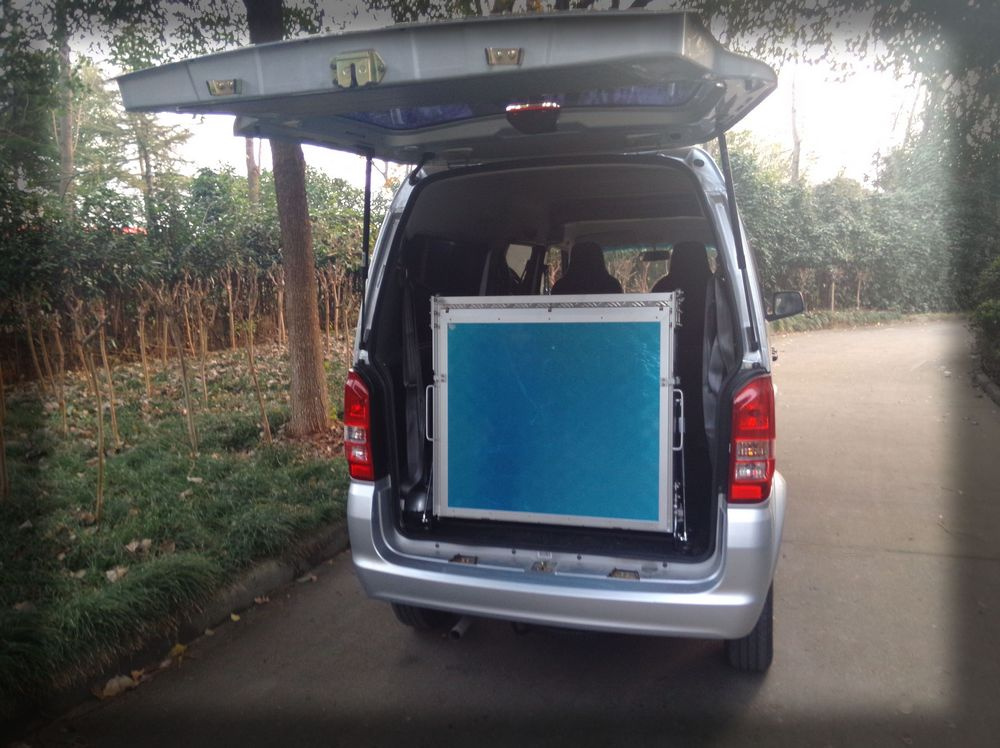

There is a setscrew at the bottom of ramp which can ensure the ramp vertical under the condition of being stowed. Also the setscrew can avoid ramp unfolding by itself. This is one of the safe equipments.
model | platform | overall width | overall length | overall height | loading rate | own weight |
| BMWR-301 | 2240*810mm | 880mm | 265mm | 850mm | 350kg | 50 kg |
| | | | | | | |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
