Magnetic Level Gauge with Transmitter
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Features - Easy to install, no extra piping required in most applications
- Magnetic level gauge Visual level indication up to 30m, sections made suit for delivery. Magnetostrictive level indicator can reach 30m measure range with cable insertion.
- Ideal for high-temperature, high-pressure and corrosive applications.
- Magnetostrictive and radar transmitter options for non-invasive and/or redundant level control.
- Available with HART, 4~20mA, and level switches.
| Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
| Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
| Connecting Flanges | According to DIN or ANSI B16.5 |
| Temperature of Liquid | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF
60ºC (Max.) for PVC, 50ºC (Max.) for PP |
| Specific Gravity | Min. 0.45 |
| Scale | Graduated in cm, Aluminium or SS304 |
| Measuring Accuracy | +/- 5 mm |
U-ideal mounting styles

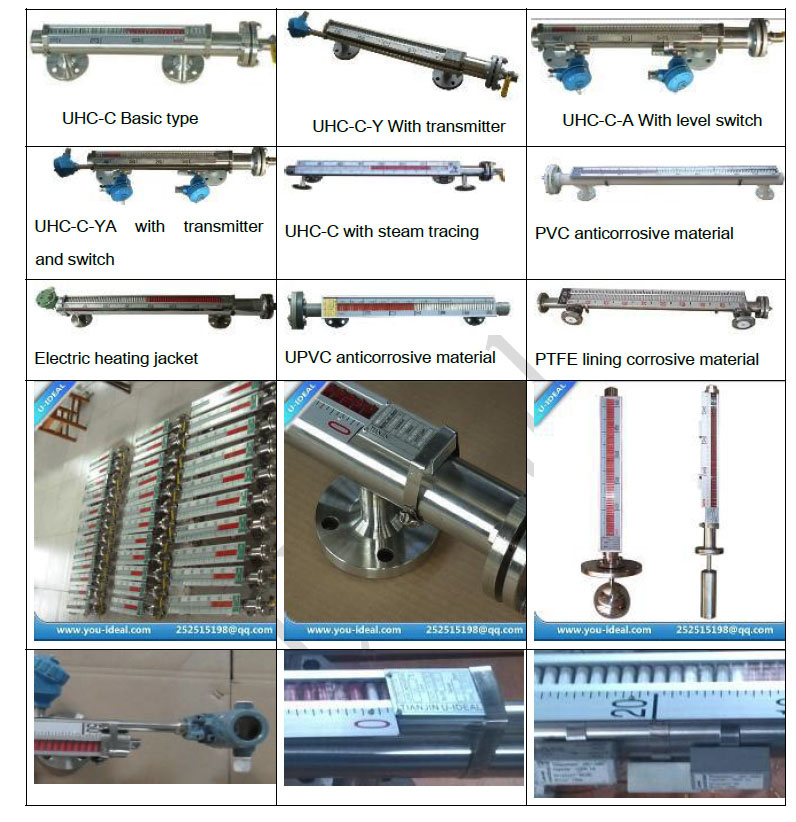

Typical pictures of magnetic level indicators
Model Selection TableBasic selection of magnetic level indicator please refer to the following steps: | UHC- | C | Side mounted; |
| | D | Top mounted |
| O | Other |
| Signal | Y | Standard transmitter 4~20mA current signal (Resolution: 20mm/10mm/5mm); |
| Y3 | Magneticostrictive transmitter 4~20mA |
| H | Hart; |
| A | Switch and number; |
| L | transmitter with LCD |
| | No signal output |
| Indicator type | O | Ordinary pannel |
| S | Sealed bargraph |
| L | Red/Green flaps with LED lamp |
| Structure | S | Steam tracing |
| E | Electric heating |
| F | Defrost |
| Valve | D | Drain valve or drain plug |
| DV | Drain valve and Vent valve or plug |
| N | No valve |
| Working temperature | A | Ambient temperature (0~40ºC) |
| M | -20~200ºC |
| H | High temperature (<400ºC) |
| L | If easy frozen |
| Material | SS304 | 0Cr18Ni9 |
| SS316L | 022Cr17Ni12Mo2 |
| SS321 | 0Cr18Ni10Ti |
| PP | PP (Polypropylene),PVC,PVDF |
| PTFE | stainless steel lined with PTFE |
| Explosion-proof | S | Safety environment |
| E | Explostion-proof ExdII BT4 |
| I | intrinsic safety ExibII CT4 |
| Measure range | Unit: mm |
| Fluid density | g/cm3 |
| working pressure | Unit: MPa |
| Flange size, rate and standard | ANSI | DIN | JIS |
| Example: UHC-C-YA-O-D-M-SS304-S-500-0.8-1-DIN DN25 PN16 |
Remark: Manufactured customized is available for this product.Can be made to Sections if gauge is longer than 3m to make suitable for delivery.Special working conditions magnetic level gaugeUHC - V side-top mounted high viscous liquid Float level gaugeUHC - V side-top mounted high viscous liquid type Float level gauge is suitable for the petrochemical tank liquid level measurement system, and especially suitable for heavy oil, tar, crude oil, resin of high viscosity medium liquid level detection. Features:- C-C: 500 ~ 10000 mm, long gauge can be section made.
- Process connection: size DN6 ~ DN200, flange standards (GB, JB/T, HGJ, ANSI, DIN, etc).
- Lead tube material: 304SS; 316SS; 316L
- Float material: 304SS; 316L, Titanium
- Working pressure: 0 ~ 1.6 MPa
- Working temperature: - 20 ~ 200 ºC
- Accuracy: + / - 10 mm
- Medium density: 0.65 ~ 2.0 g/cm3
- Medium viscosity: 1.5 Pa s. or less
Model Selection:| UHC-V | Top-side mounted high viscosity fluid type float level gauge |
| | L | drain valve | valve |
| | B | SS304 or stainless steel 1Cr18Ni9Ti | wet material |
| L | 316SS or 316L |
| | 150 | DN150 or 6" | Connection |
| 200 | DN200 or 8" |
| | A | Flange nominal pressure 1.0MPa | PN |
| B | Flange nominal pressure 1.6MPa |
| | 1 | -20~80ºC | Working temperature |
| 2 | -20~130ºC |
| 3 | -20~200ºC |
| | B | cam magnetic drive switch | switches |
| C | reed switch |
| | number of switches |
| R1 | standard transmitter 4~20mA | transmitter |
| R2 | magnetostrictive transmitter 4~20mA |
| R3 | magnetostrictive transmitter 4~20mA, with Hart |
| | O | standard | ex-proof |
| D | flame-proof ExdIIBT4 |
| E | intrinsic safety ExibIICT4 |
| | height of install |
| | width of install |
| | measure range |
| | fluid density |
| working pressure |
Top mounted vaporizing fluid float level gaugeUHC -T Top mounted vaporizing fluid special using magnetic float level gauge is suitable for liquid measurement which is easy vaporization in pressure vessels, especially for buried tank of liquid level measurement such as liquefied petroleum gas, methane. This model level gauge adopts of a set of three pure titanium floats and unique guide rail structure, with stable and reliable product performance, strong practicability, now is widely used in LPG stations.Features:- Measuring range: 300 ~ 3000 mm.
- The process connection: flange size is 6 ~ DN200, flange standards (GB, JB/T, HGJ, ANSI, DIN, etc) please declare when ordering.
- Lead tube material: stainless steel 1Cr18Ni9Ti; 304SS; 316SS; 316L
- Float material: Titanium
- Working pressure: -0.1 ~ 4 MPa
- Working temperature: - 80 ~ 80 ºC
- Accuracy: + / - 10 mm
- Medium density: 0.4 ~1.2 g/cm3
- Medium viscosity: 0.4 Pa s.
Model Selection: | UHC-T | Top mounted vaporizing fluid special using float level gauge |
| | B | SS304 or stainless steel 1Cr18Ni9Ti | wet material |
| L | 316SS or 316L |
| | 150 | DN150 or 6" | process connection |
| 200 | DN200 or 8" |
| | A | Flange nominal pressure 1.0MPa | nominal pressure |
| B | Flange nominal pressure 1.6MPa |
| | 1 | -20~80ºC | Working temperature |
| 5 | -80~80ºC |
| | B | cam magnetic drive switch | switches |
| C | reed switch |
| | number of switches |
| R1 | standard transmitter 4~20mA | transmitter |
| R2 | magnetostrictive transmitter 4~20mA |
| R3 | magnetostrictive transmitter 4~20mA, with Hart |
| | O | standard | ex-proof |
| D | flame-proof ExdIIBT4 |
| E | intrinsic safety ExibIICT4 |
| | J3 | Vacuum jacketed |
| | height of install |
| measure range |
| fluid density |
| working pressure |
| Prod Model: |
UHC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
1mm |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One, All in One~ |
| Range: |
0-15m |
| Principle: |
Magnetic Sensors |
| Output Signal Type: |
Decile Calibration |
