| Prod Model: |
WLD9000 AU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
7X5.45X4m |
| Internal Size: |
6.9X3.9X2.8m |
| Main Door Size: |
3X2.75m |
| Air Flow: |
25000m³/H |
| Air Speed: |
0.3-0.5m/H |
| Fuel Consumption: |
4-5kg/Vehicle |
| Total Power: |
15kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS or Rock Wool |
| Brand: |
Weilongda |
Product Description

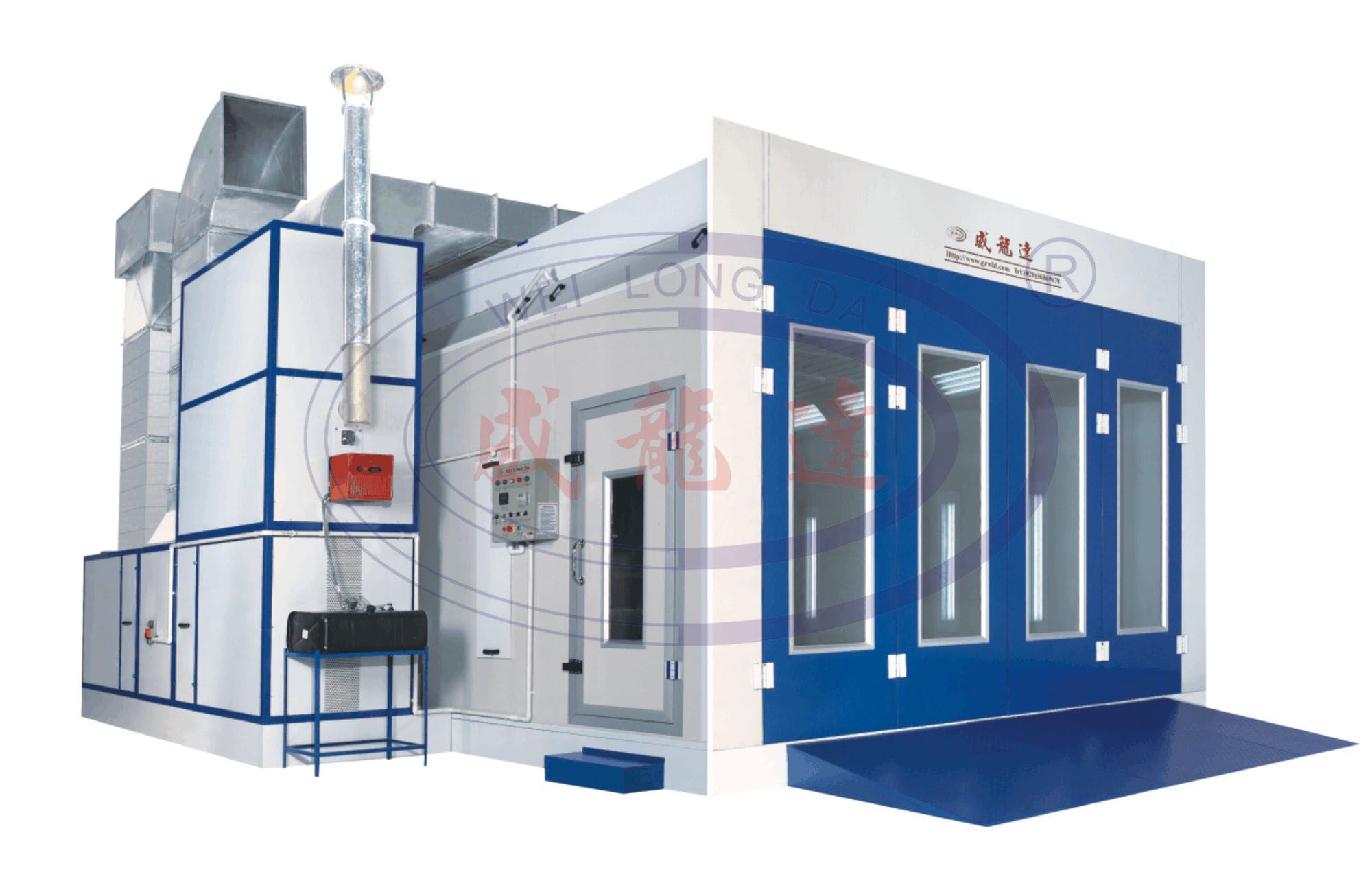

1. CE Spray Booth
2. Spray Booth equipped M pattern Active Carbon pocket Filter System
3. Over 14 years in Spray Booth
5. Really spray booth factory in China
Configuration:
1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 3 PCS of ramps.

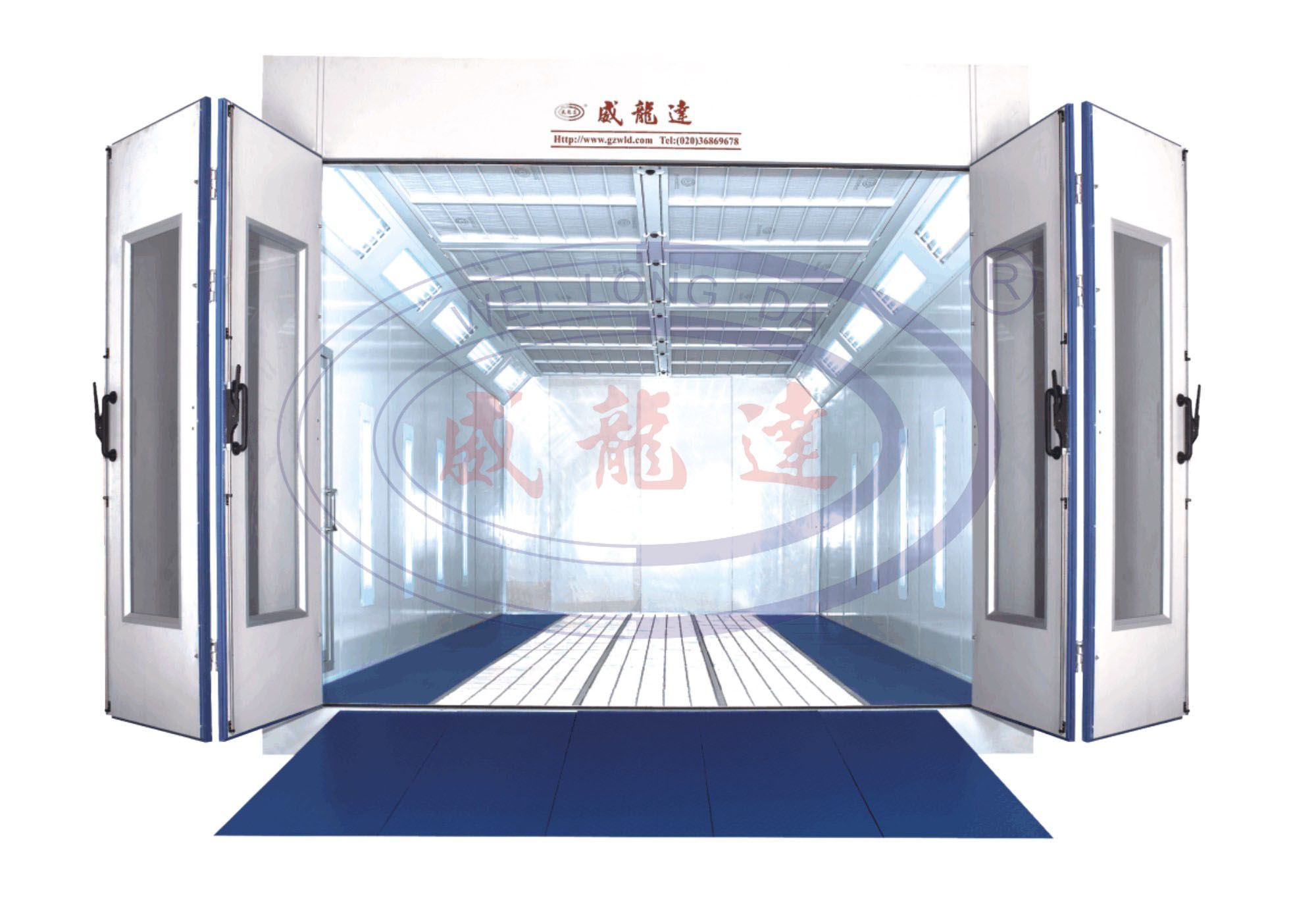

3. Door: 4 fold style doors are effective in sealing the opening while at the same time making an attractive and the functional appearance. Four large windows provide for viewing and monitoring the operations inside the spray booth. The 4-fold feature requires less clearance in front of the booth, also equal the weight of the door on the two side of the column. 1 pc of emergency door.
4. Air Circulation System: 1 X 7.5kw direct drive intake fan, 1X5.5kw direct drive exhaust fan. BELIMO 20N electric damper.
5. Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60. C). Max. Temperature at 80. C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
6. Lighting System: Ceiling light has 32 PCS of 36W lamps. Side light has 16 PCS of 36W lamps. 900 Lux. Ceiling lights and side lights are accessed from outside the booth and amounted behide a permanently installed glass. This will guarantee the isolation of the light and the hazardous areas, and provide a flat interior surface of the booth.
7. Air Purification: Dual filtering structure. The primary M pattern nonwoven filter bags can capture granules larger than 10μ M. Ceiling filter capture granules bigger than 5μ M. The air cleanliness in the working environment can reaches 98%.
8. Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
