LPG Gas Cylinder Whole Production Line Body Manufacturing Equipments Gas Furnace

LPG Gas Cylinder Whole Production Line Body Manufacturing Equipments Gas Furnace
Price: US $ 5000-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 12.5kg/15kg
Production Speed: 0.55kw
Size: 6kg/12kg/15kg/50kg
Air Pressure: 0.6MPa
Voltage: 380V
Welding Speed: 120s/PCS
Weight Of Machine: 1.5ton
Size Of Cylinder Available: 320*700-420*1250mm
Size Of Machine: 125000*1390*1560mm
Weight: 12ton
Max Working Pressure: 25MPa

Product Description


LPG gas cylinder whole production line body manufacturing equipments gas furnace


Machine description

Specifications
Auto.Circumferential Welding Machine TIG/MIG welding
Welding speed:0-1000mm/min
Welding current:5-400A
The machine will automatically weld the cover with tank both ends at the same time.
This machine is used for Auto.double-head TIG circumferential welding of Duta-Cyi and LNG inner cylinder.
<=2000mm
Φ=250~800mm
δ=2.5~4mm


Application:

Application cylinder size: 6kg/12kg/15kg/50kg and customrized

Producing line machine list


Machine list:

Machine

Quantity (set)

1.Power press

1

2.Hydraulic Shell Forming machine

2

3.Automatic trimming machine

3

4.Hole punching machine

1

5.End dish shaping machine

3

6.Valve Seat Welding Machine

2

7.Bottom base welding machine

2

8.Protection enclosure welding machine

2

9.Metal printing machine

2

10.Assembling Machine

2

11.Circumferential Seam welding machine

6

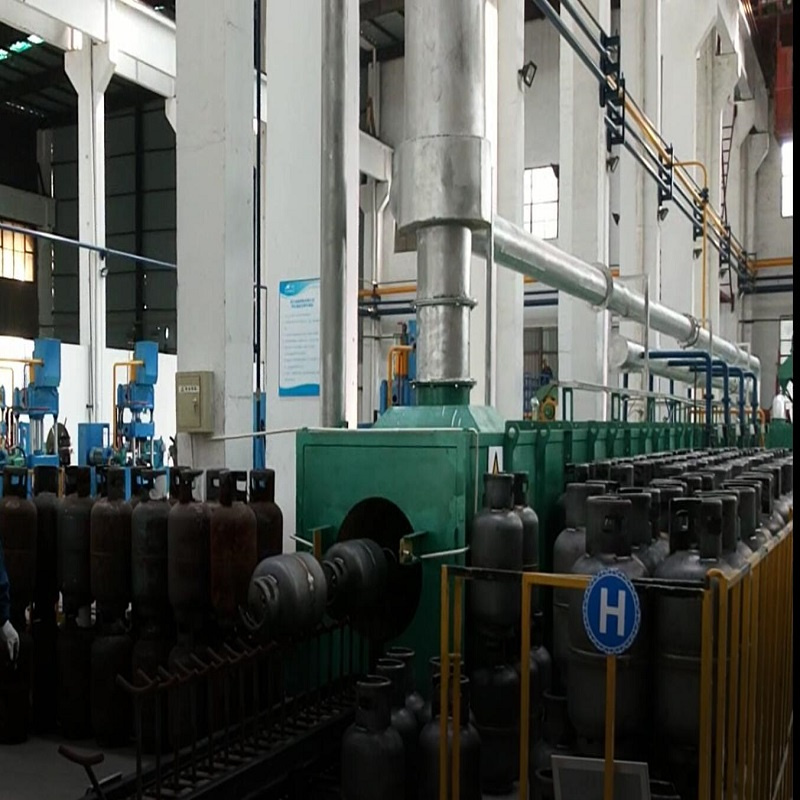

12. Annealing furnace

1

13.Shot blasting machine

1

14.Sandblast machine

1

Machine showing
1.Power press
2.Hydraulic Shell Forming machine
3.Automatic trimming machine
This high efficient machine adopts air-jacket-clamping, automatic feeding and trimming cut by inclining hob. The width and slop around the edge of shell in adjustable. This wondering machine is reliable, easy to operate and in automatically feed-in and out when connected to conveyed of the production line

4.Hole punching machine
Punch the hole on top of the cylinder

5.Valve Seat Welding Machine
To complete the welding of valve seat ring joints. Ensure uniform forming, good appearance, weld penetration and weld width meets the technological requirements, the clamping is convenient. Using submerged arc welding technology, girth welding at one time

6.Bottom base  welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

7.Protection enclosure welding machine
Complete cylinder base girth automatic welding. To ensure concentricity, uniform forming, good appearance, weld penetration and weld width meet the technological requirements, the clamping is convenient. CO2 gas shield welding process, complete in one time welding.

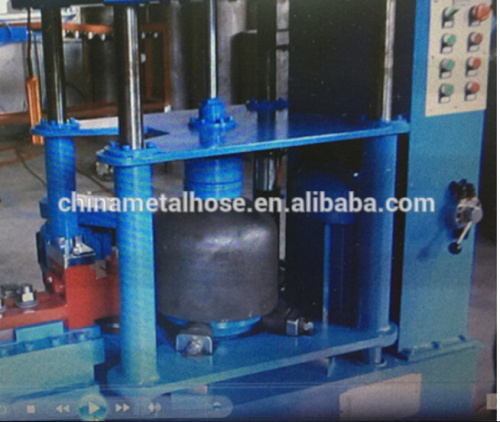

8.End dish shaping machine


9.Assembling Machine
To assemble both halves of the cylinder together and get ready for welding

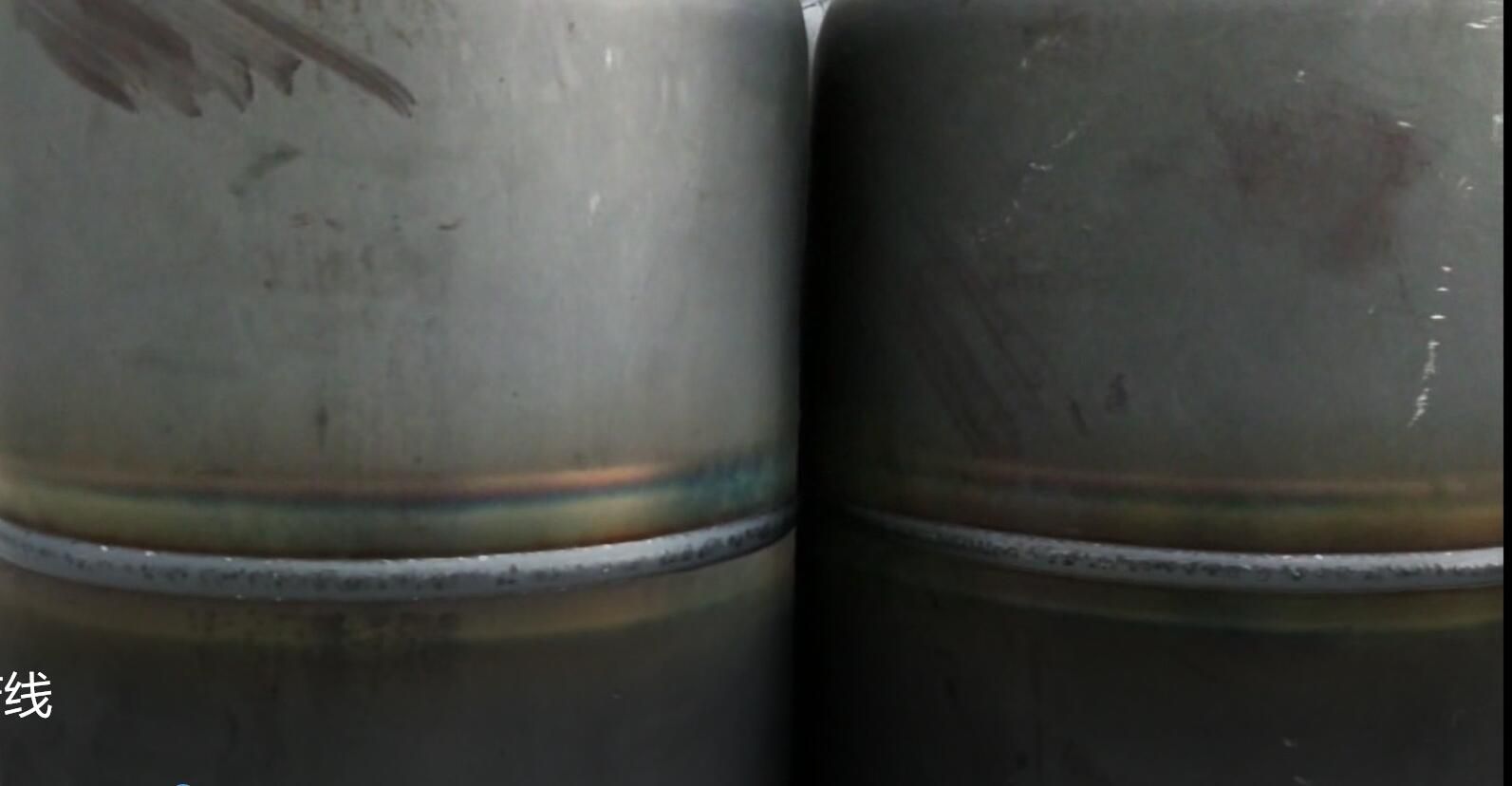

10.Circumferential Seam welding machine

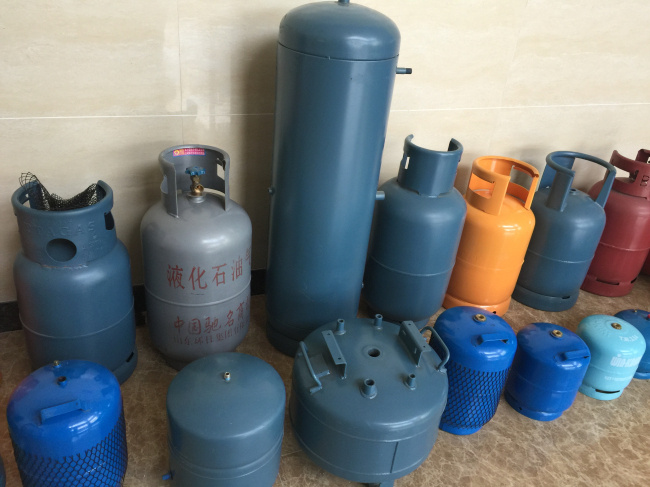

LPG Product showing




Technical data

Item No.HLT-12.5KG
FeaturesStrong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas
Standard Assessorieswater cooling welding torch
automatic cycling water tank
Panasonic welding machines
Packing DetailsPlywood cases/boxes
MOQ1set
Warranty1 year after delivery
PaymentT/T,L/C,D/P, Western Union
OEM & OEMOK

Longitudinal seam welding Data sheet

DescriptionData
Effective length1500
Clampingpneumatic with keyboard and clamping board
Clamping controlfootswitch/remote control
Trolley motion speed100-500mm/min
Wall thickness2.0-4.0mm
Mandrel coolingexternal water cooling
Cable assemblydrag chain

circumferential seam welding

DescriptionData
Payload capacity200kg
Wall thickness2.0-4.0mm
Rotation speed0.05-0.5rpm
Diameter coverageOD300-OD500mm
Speed regulationAC frequency conversion
Suitable for work-piece length1500mm
Clampingpneumatic cylinder
Supportmanual operation support


FAQ

LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machineries:

1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?








Longterm Machinery Technologies are leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders. The whole process from blanking and body forming line, full automatic welding line, heat treatment, full automatic hydrostatic testing line, powder coating and finishing line.

Especially we have the best and automatic welding line from automatic trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers, but output is 2000PCS per 8hrs.

We have been focused on cylinder welding technology since 30 years ago. During last 30 years, we keep improving our technologies on welding(TIG, MAG, MIG, SAW)and make a lot of improvement from SAW welding to MIG welding on LPG gas cylinder. Our equipment are widely used Aerospace, Petrochemical, Pressure Vessels, etc...We generated big profit by saving cost and improving welding quality on welding for our customers from all over the world, America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...

I. Production Line of LPG Gas Cylinder

Including circumferential seam welding machine

Longtitudinal seam welding machine

Hydraulic leakage test

Automatic trimming machine

Valve seat welding machine

Foot ring welding machine

Protection enclosure welding machine

End dish shaping machine

Annealing furnace

Shot blasting machine

Sandblast machine

2. Production line for Solar Water Tank

Including pressurized and non-pressurized solar water tank manufacturing line

The main equipment are as follows:

Circumferential seam welding machine

Longitudinal seam welding machine

Pipe fitting welding machine

Hole punching machine

Grooving machine

3. Production line for Steel Drum Manufacturing Line

Sheet rolling machine

Spot welding machine

Longitudinal seam welding machine

Grooving machine

Leakage testing machine

Flanging machine

Sealing machine

4. CNG Tank & Fire Extinguishier Spinning machine
