LPG gas cylinder production line circumferential seam welding machine

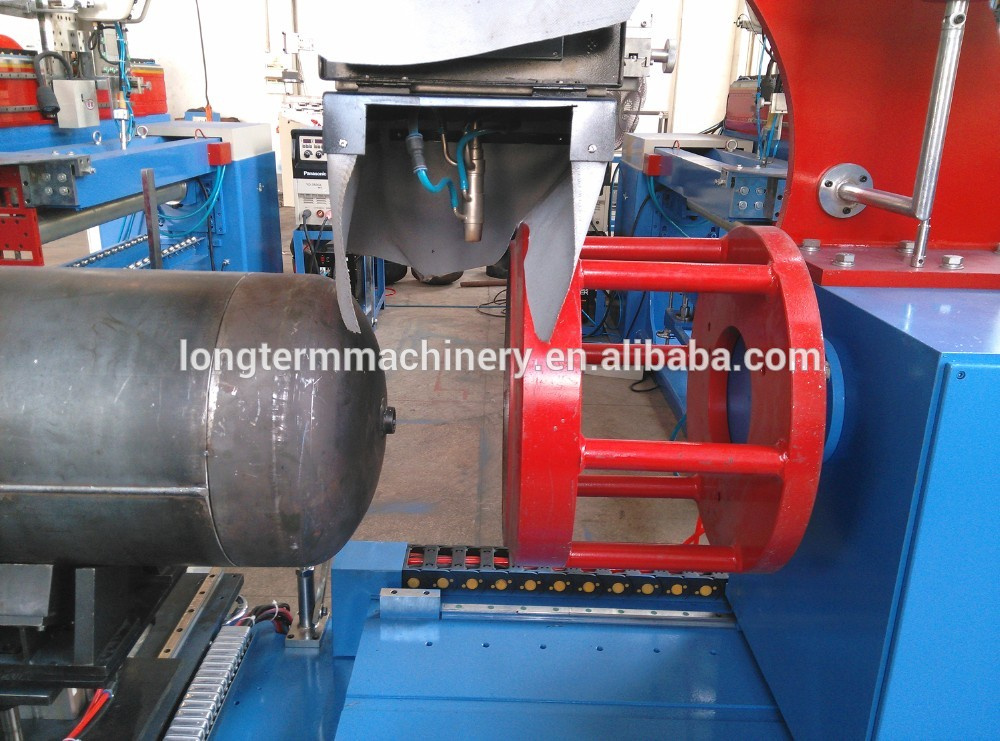

Detail Pictures of circumferential seam welding machine:

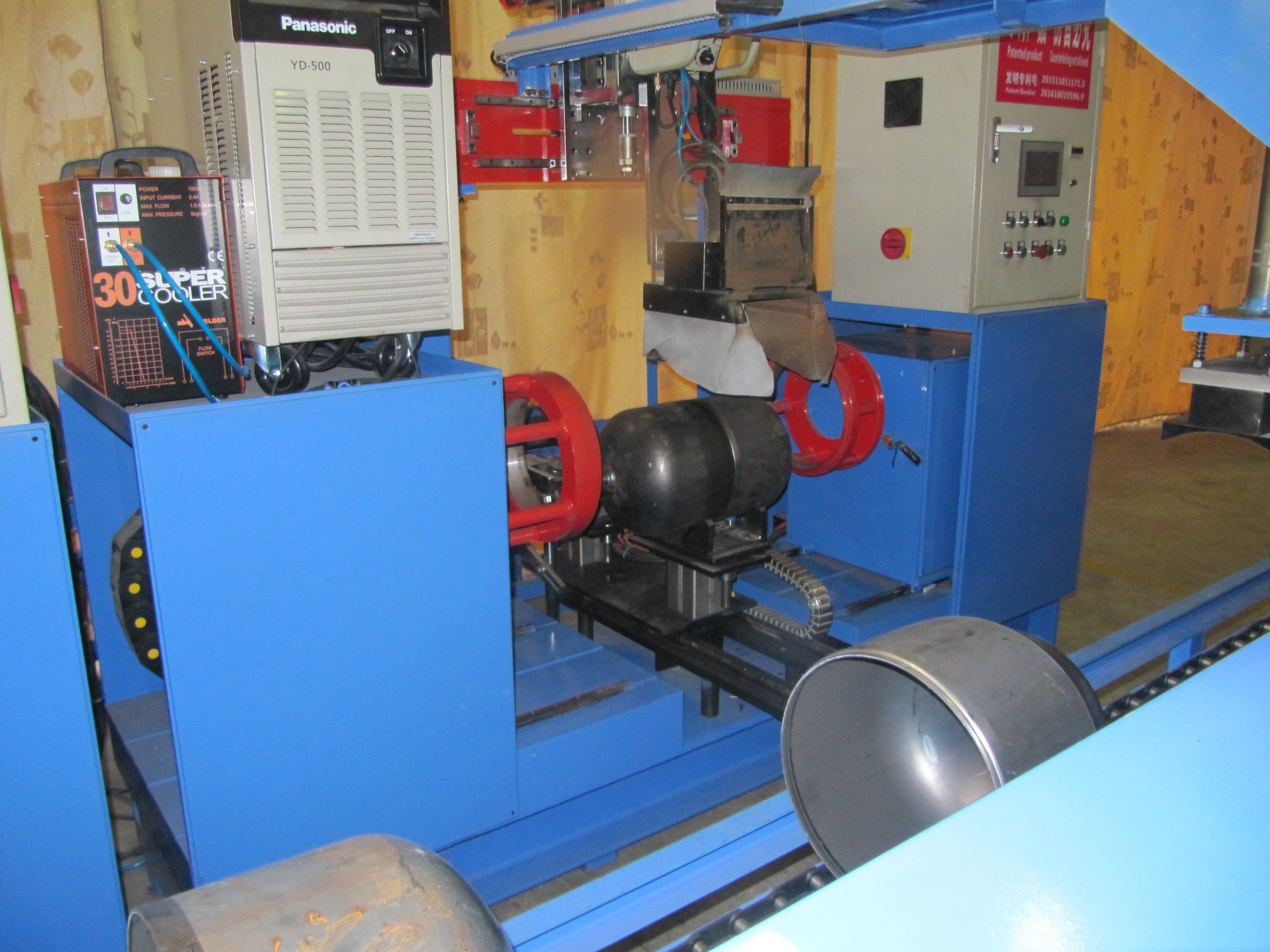

Single head:

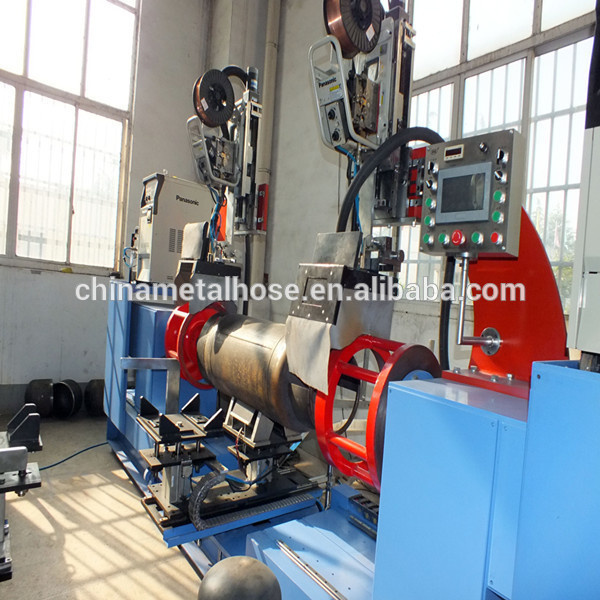

Double head:
Machine description
Specifications
Auto.Circumferential Welding Machine TIG/MIG welding
Welding speed:0-1000mm/min
Welding current:5-400A
The machine will automatically weld the cover with tank both ends at the same time.
This machine is used for Auto.double-head TIG circumferential welding of Duta-Cyi and LNG inner cylinder.
<=2000mm
Φ=250~800mm
δ=2.5~4mm
Application:
Application cylinder size: 6kg/12kg/15kg/50kg and customrized
Producing line machine list
Machine list:
Machine |
Quantity (set) |
1.Power press |
1 |
2.Hydraulic Shell Forming machine |
2 |
3.Automatic trimming machine |
3 |
4.Hole punching machine |
1 |
5.End dish shaping machine |
3 |
6.Valve Seat Welding Machine |
2 |
7.Bottom base welding machine |
2 |
8.Protection enclosure welding machine |
2 |
9.Metal printing machine |
2 |
10.Assembling Machine |
2 |
11.Circumferential Seam welding machine |
6 |
12. Annealing furnace |
1 |
13.Shot blasting machine |
1 |
14.Sandblast machine |
1 |
Technical data
| Item No. | HLT-12.5KG |
| Features | Strong and reliable structure & design
Fast welding speed (0.8m/min)
Low noise level<45dB
Easy operation
water cooling with copper backing covered with Argon gas |
| Standard Assessories | water cooling welding torch
automatic cycling water tank
Panasonic welding machines |
| Packing Details | Plywood cases/boxes |
| MOQ | 1set |
| Warranty | 1 year after delivery |
| Payment | T/T,L/C,D/P, Western Union |
| OEM & OEM | OK |
Longitudinal seam welding Data sheet
| Description | Data |
| Effective length | 1500 |
| Clamping | pneumatic with keyboard and clamping board |
| Clamping control | footswitch/remote control |
| Trolley motion speed | 100-500mm/min |
| Wall thickness | 2.0-4.0mm |
| Mandrel cooling | external water cooling |
| Cable assembly | drag chain |
circumferential seam welding
| Description | Data |
| Payload capacity | 200kg |
| Wall thickness | 2.0-4.0mm |
| Rotation speed | 0.05-0.5rpm |
| Diameter coverage | OD300-OD500mm |
| Speed regulation | AC frequency conversion |
| Suitable for work-piece length | 1500mm |
| Clamping | pneumatic cylinder |
| Support | manual operation support |
FAQ
LPG cylinder manufacturing equipment
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?(6kg, 12kg)
3.What diameter and thickness of the cylinder you want to make?
4.Are you new in this area or you already have some machines in the workshop?
5.Capacity you require, i.e. how many pieces and sizes you want to make per day?
Longterm Machinery Technologies are leading supplier of complete turnkey solutions for the LPG cylinder production facilities to manufacture all sizes/types of LPG gas cylinders. The whole process from blanking and body forming line, full automatic welding line, heat treatment, full automatic hydrostatic testing line, powder coating and finishing line.
Especially we have the best and automatic welding line from automatic trimming, joggling, valve bung welding, handle and bottom welding to automatic MIG body welding, the whole line involves only 7 workers, but output is 2000PCS per 8hrs.
We have been focused on cylinder welding technology since 30 years ago. During last 30 years, we keep improving our technologies on welding(TIG, MAG, MIG, SAW)and make a lot of improvement from SAW welding to MIG welding on LPG gas cylinder. Our equipment are widely used Aerospace, Petrochemical, Pressure Vessels, etc...We generated big profit by saving cost and improving welding quality on welding for our customers from all over the world, America, Russia, Turkey, Vietnam, India, Thailand, Bangladesh, South Africa, etc...
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. CNG Tank & Fire Extinguishier Spinning machine
