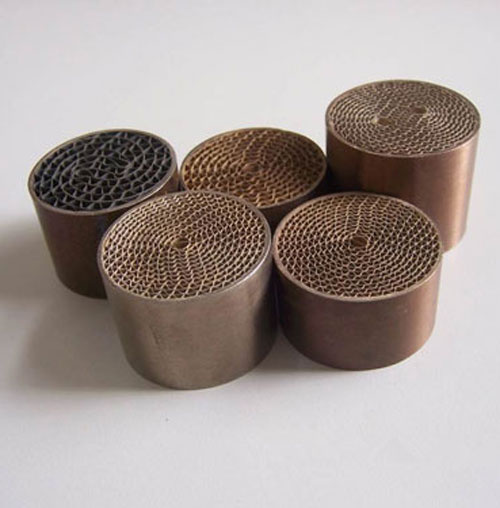

low initiation temperature metal catalyst
Product Description:
What is a Catalytic Converter and how does it work?
A catalytic converter is a device used to reduce harmful emissions released from a car's exhaust. It can be found between the extractors and muffler. Emissions from car's exhaust consist of noxious gases such as carbon monoxide,hydrocarbons and nitrogen oxide.They are responsible for smog,myriad respiratory problems and damage to plant life.
Emissions pass through a metal honeycomb catalytic structure (normally consisting of a metallic catalysts ,platinum,rhodium or palladium) that causes a chemical reaction with the noxious gases,converting them into less harmful gases such as carbon dioxide,nitrogen and water vapors.
Three-way Catalytic Converters:
Allows reduction of NOx(Nitrogen Oxides) to N2 (Nitrogen) and O2 (Oxygen)
Allows oxidation of CO(Carbon Monoxide) to less-harmful CO2 (Carbon Dioxide)
Allows oxidation of HC (Unburned Hydrocarbons) to CO2 (Carbon Dioxide) and H2O (water)
Why did you choose us?
WISDOM is one the leading manufacturer and supplier of advanced metal honeycomb products in China since 2006. By using heavy-duty, high-efficiency coatings and high-quality materials, we produce and offer catalytic converters of the very highest quality.
Our metallic substrates are specifically designed and manufactured to deliver optimum performance for each application with minimal reduction of horsepower. Advanced methods in honeycomb coupled with our vaccum brazing technology enable us to exceed the requirements of the most demanding applications .
Our product:
Our products: |
Honeycomb For Motorcycle |
Honeycomb For Car |
Honeycomb For Infrared Gas Stove |
Un-standard Honeycomb |
Brand | WISDOM |
| Material | metal meterial |
| Size | more sizes and Spec. Can be customized to your engine |
| Shape | Round/ Racetrack/Oval
"T" series(one hole)/ "S" series (Two holes) |
| Certification | ISO9001 |
| MOQ | 1 Piece |
| Packaging | all product package can be customized based on your requirements |
| Payment terms | L/C, T/T, Money Gram, Western Union |
| Conversion Rate | CO≥96,HC≥95,NO≥90 |
| Coating losing rate | ≤3 |
| Scope | apply to Auto/Motorcycle, Infrared Gas Stove, etc. |
Advantage | Low initiation temperature |
| Low pressure drop |
| High mechanical strength |
| Excellent thermal and coking resistance |
| Reliable braze welding intensity |
| Durable heat-resisting impact performance |
| Perfect catalyst coating binding force |
| Good anti-shock |
| Service life | Above 120,000 KM |
| Price | The price is different in different specifications between USD1 and USD100. |
Specification
Material
| Mantle | Matrix | Brazing |
| Ferritel (SUS444, SUS441, SUS430) | Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Domestic FeCrAl(2073/216)
Import FeCrAl(1.4725/1.4767) | Nickel base alloy |
or Austenitic heat resistant stainless steel
(SUS304) |
Dimension and Cell Densitities
| Dimensions, mm | Cell densities,CPSI | Foil thickness,mm |
| round shape with diameter more than 10mm, length up to 800mm | 50, 100, 200,250,300,400,500,600, 800,1000 | 0.03,0.04, 0.05,0.06,0.08,0.10 |
| Oval shape |
| Others (Rectangle etc.) |
Mark:We can supply Metallic Substrate coated with noble metals of Pt, Pd and Rh. We also supply Metallic Substrate without noble.
Our company:
Quality Assurance. According to international standard, we introduce new techniques and new
processes,so we can keep improving product quality. There are strict processes and quality
manages to make sure the products keep updated, and be well received by users.
Equipment. Our major equipment, vacuum brazing furnace, tube cutting machine, foil cutting and
corrugated machine, foil wash machine,etc.
Principle. "Quality and credit standing" is the life of our company. "Research and innovation" is the life line for survival of our company.
Welcome. We warmly welcome friends of various circles to come to visit and talk about business with us. We take proud to cooperate with our customers based on our high quality products, competitive price, perfect service and good credit. We look forward to your business negotiation and sincerely hope to be your best trade partner.
