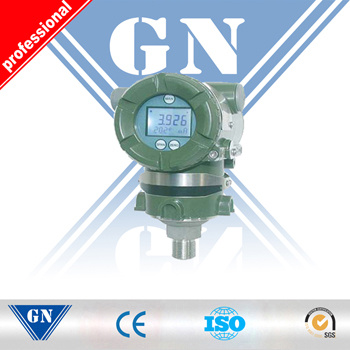

Brief introduction of 3051(&1151) DP differential pressure transmitter
1. Widely used for measuring differential pressure (or pressure), level, density of liquid, gas or steam and convert the value of above into current signal output or digital protocol output.
2. The pressures are directly applied to the isolating diaphragm that provide isolation and resistance against process fluid corrosion.
3. Being microprocessor based, the electronic circuit is extremely versatile and accurate.
4. Combined with the sensor precision, it provides the high accuracy and range ability.
5. Transmitter performance is improved by continuous monitoring of the sensor temperature and corresponding corrections.
6. A local display permits easy reading and writing of data.
| Medium | liquid, gas and steam |
| Measuring Range | 0~0.1kPa to 0~40MPa |
| Output | 4~20mA DC+HART protocol |
| Accuracy | ±0.1%FS |
| Range and null point | Adjustable |
| Power Supply | 12~45V DC, generally 24V DC |
| Protection | IP65 |
| Storage Temperature | -40~+125°C |
| Overload Limit | 150%-200% of rated range |
| Load Resistance | 750Ω(See below diagram 1 for load characteristic ) |
| Relative Humidity | 5~95% |
| Converter housing | Low copper cast aluminum alloy with Polyurethane paint |
| Fill Fluid | Silicon / Fluorine Oil |
| Process Connections | 1/2NPT, 1/4NPT |
| Static pressure | 4, 10, 25, 32Mpa |
| Mounting | Directly supported by piping or optionally with mounting bracket for 2" pipes or with direct or remote seals. 3-way valve |
| Maximum positive shift | 500% of minimum adjusting span |
| maximum negative shift | 600% of minimum adjusting span |
| Material | Flange/Adaptor | Stainless Steel 316/Monel/ Haste alloy/Carton Steel |
| Drains/Vents | Stainless Steel 316/Monel / Haste alloy |
| Diagrams | Stainless Steel 316/Monel /Haste alloy C/ Tantalum |
| Wetted O-Ring | Viton/ Buna-N |
| Seal O-Ring | Viton/ Buna-N |
| Bolts & Nuts | Carton Steel/Stainless Steel316 |
Payment Terms of coriolis mass flow meter
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service of coriolis mass flow meter
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
