Powerful Lonsdor K518ISE Multi-Function Key Programmer with Odometer Adjustment Tool
1. Brand: Hongjun
2. Part Name: Multi-Function Key Programmer with Odometer Adjustment Tool
3. Application: for Volvo, for Renault, for Ford, for LEXUS, for Chevrolet etc
4. Min. order: 1 set
5. Leading time:3-6 working days
About Car Diagnostic Tool
Car diagnostic tools are device that able to plug into the OBD connector to access OBD functions. These range from simple generic consumer level tools to highly sophisticated OEM dealership tools to vehicle telematics devices, including hand-held car scan tools, Mobile device-based tools and PC-based scan tools. Most of these car diagnostic tools are designed for one or more car makes while some for all cars.
Market-oriented professional car diagnostic tool
To meet the needs to the car diagnostic tool in the markets, we supply a wide range of market-oriented car diagnostic tools including: diagnostic scanner for European cars, Asian cars and American cars, such as the well-known brands for BMW scanner, for Mercedes BENZ for MB STAR, for VCM IDS, for VAS 5054A, for Lexia-3, for Renault CAN Clip and more.
Diagnostic tool for all cars
We also supply some universal car diagnostic tool, these auto diagnostic tools is used to diagnose for most cars, and very suitable for workshop. Please do not hesitate to contact us for any of your demand!
Lonsdor K518ISE Main Functions & Features:
Immobilization
Odometer adjustment
Built-in for Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free for BMW FEM key programming
Program for Toyota/ for Lexus smart key all key lost via OBD
Lonsdor K518ISE Key Programmer Special Features:
For Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
For Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
For BMW CAS3/CAS3+/CAS3++: direct OBD programming
For BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New for Ford: smart key programming
For Hyundai / for Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
For Renault ( Megane, Koleos, Scenic) without PIN code key programming
for VAG group 4th & 5th immobilizer system
For Ferrari (458, F12, F149): direct OBD programming
For Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518 Highlights:
1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system
Lonsdor K518ISE Immobilization Car List:
Europe:
For Audi, for BMW, for Benz, for VW, for Volvo, for Citroen, for Ferrari, for Maserati, for Fiat, for Lamborghini, for Jaguar, for MG, for
Land Rover, for Bentley, for Lancia, for Opel, for Peugeot, for Porsche, for DS, for Renault, for Alfa Romeo, for Smart, for
Borgward
America:
For Cadillac, for Chevrolet, for Dodge, for GMC, for Buick, for Hummer, for Ford, for JEEP, for Lincoln, for Mercury
Asia:
For Honda, for Hyundai, for Isuzu, for KIA, for Lexus, for Mazda, for Mitsubishi, for Nissan, for Ssangyong, for Subaru, for Suzuki, forToyota, for Shigaoka Queen
China:
For Iveco, for Trumpchi, for BYD, for Geely, for Chery, for Great Wall, for Young Lotus (Basically all Chinese car
models are included)
Odometer Adjustment Car List:
For VW, for Porsche, for Ford, for Jaguar, for Land Rover, for Mazda, for Audi, for Renault, for Hummer, for Hyundai, for Kia...
More high-end cars will be updated very soon.
Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to official, you can "One key update" for the latest version by yourself.
Lonsdor K518ISE can program for Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (need to buy) SKE-LT: Smart Key emulator - for Toyota/Lexus smart key for all key lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
Lonsdor K518ISE Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m

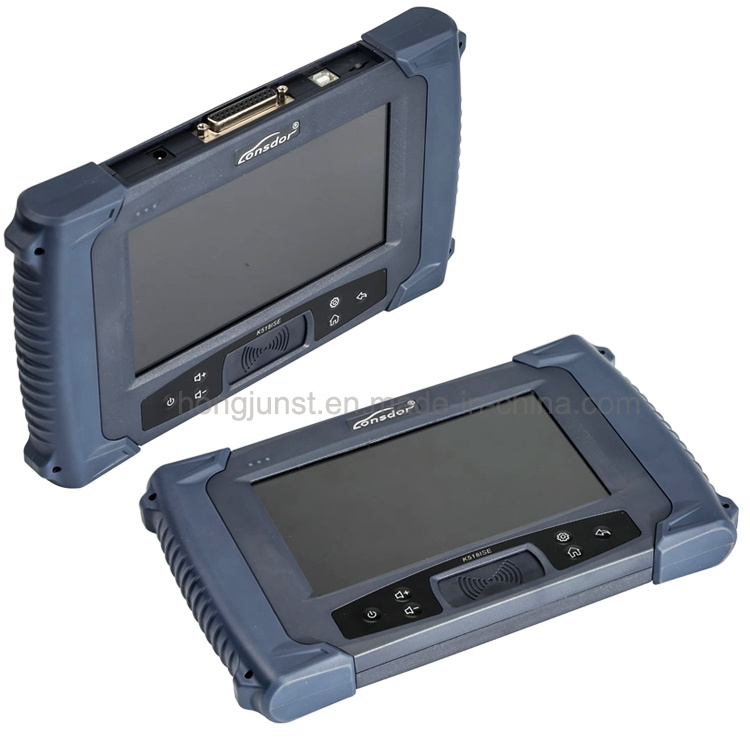

Lonsdor K518ISE Main Unit
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together
Lonsdor K518ISE Adaptor Binding:Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into "Setting"
Step 4. Click "Bind adapter"
Step 5. Click "OK" to complete
Note: The KPROG adapter is specialized for part for Volvo car series and the new for Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as for Jeep Grand Cherokee, please refer to our website or directly go to the"One key update" for latest news. How to Register Lonsdor K518ISE best key programmer? After system updating, you need go to registration&activation.
For new user,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update-Registered user to proceed).
Then go to Activation confirmation to continue.
How to Activate Lonsdor K518ISE car key programmer tool? After confirming activation, it will go thepassword Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking "Refresh" )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.
The most important note:
1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.
3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log
in an registered or activated device either.
4. An account can be used to bind multiple new devices.

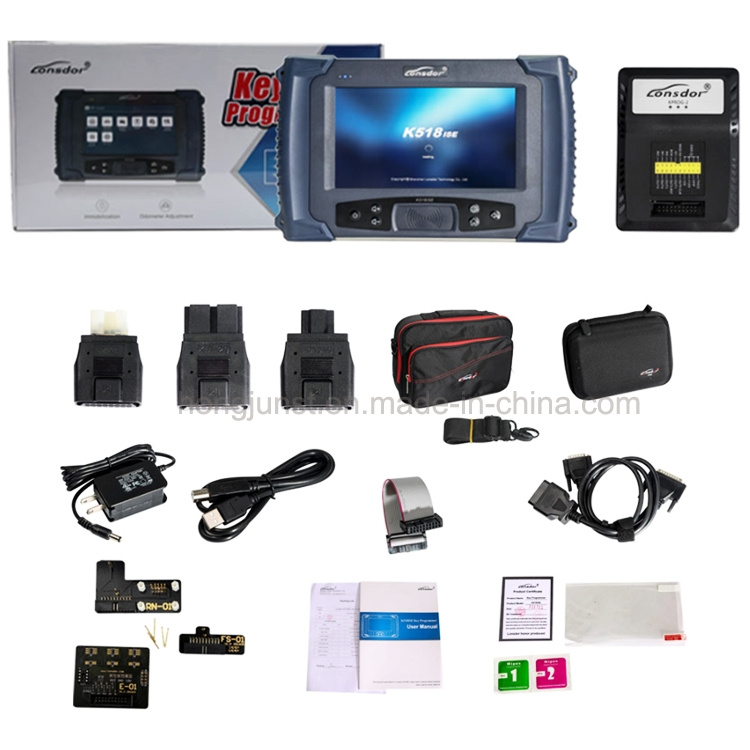

Lonsdor K518ISE Package List:
1x Portable Bag(big)
1x Main Host
1x Power Adaptor
1x USB Cable
1x Packing Bundle
1x OBD Test Cable
1x Extra Connector
1x User Manual
1x Portable Bag(small)
1x KPROG Adapter
1x RN-01 Board
1x E-01 Board
1x FS-01 Board
1x 20P Cable
5x Backup Pin
1x Certificate
