Light Duty Electric Drum Brake Trailer Axle

Name: Light Duty Electric Drum Brake Trailer Axle
Brand: ibuyautoparts.com
SKU: 817179145
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 30/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

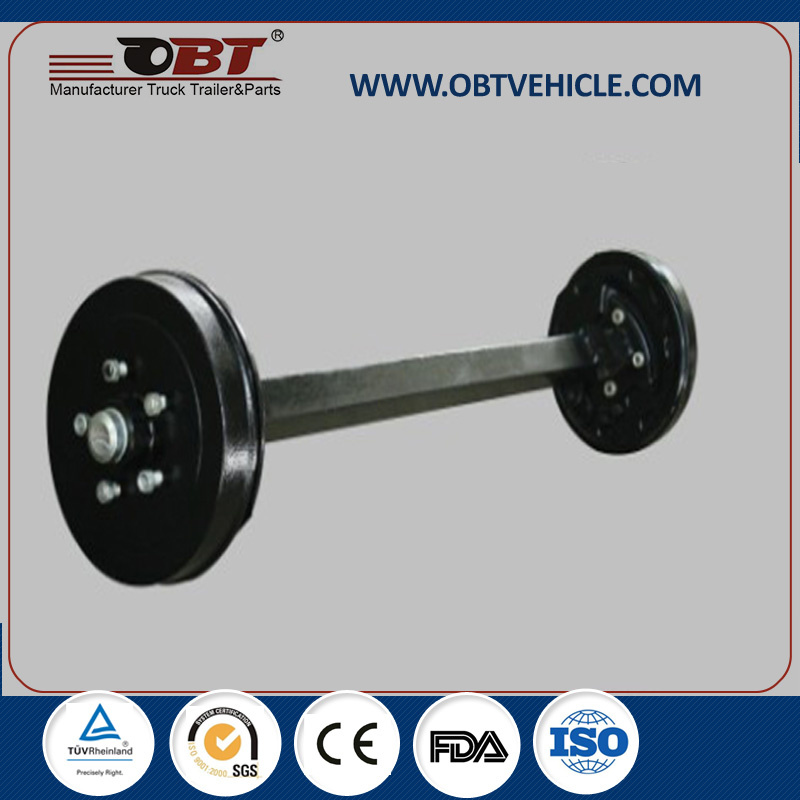

Light Duty Electric Drum Brake Trailer Axle

Production Features:

1.OBT axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.

2.OBT axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.

3.OBT axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.

4.OBT axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.

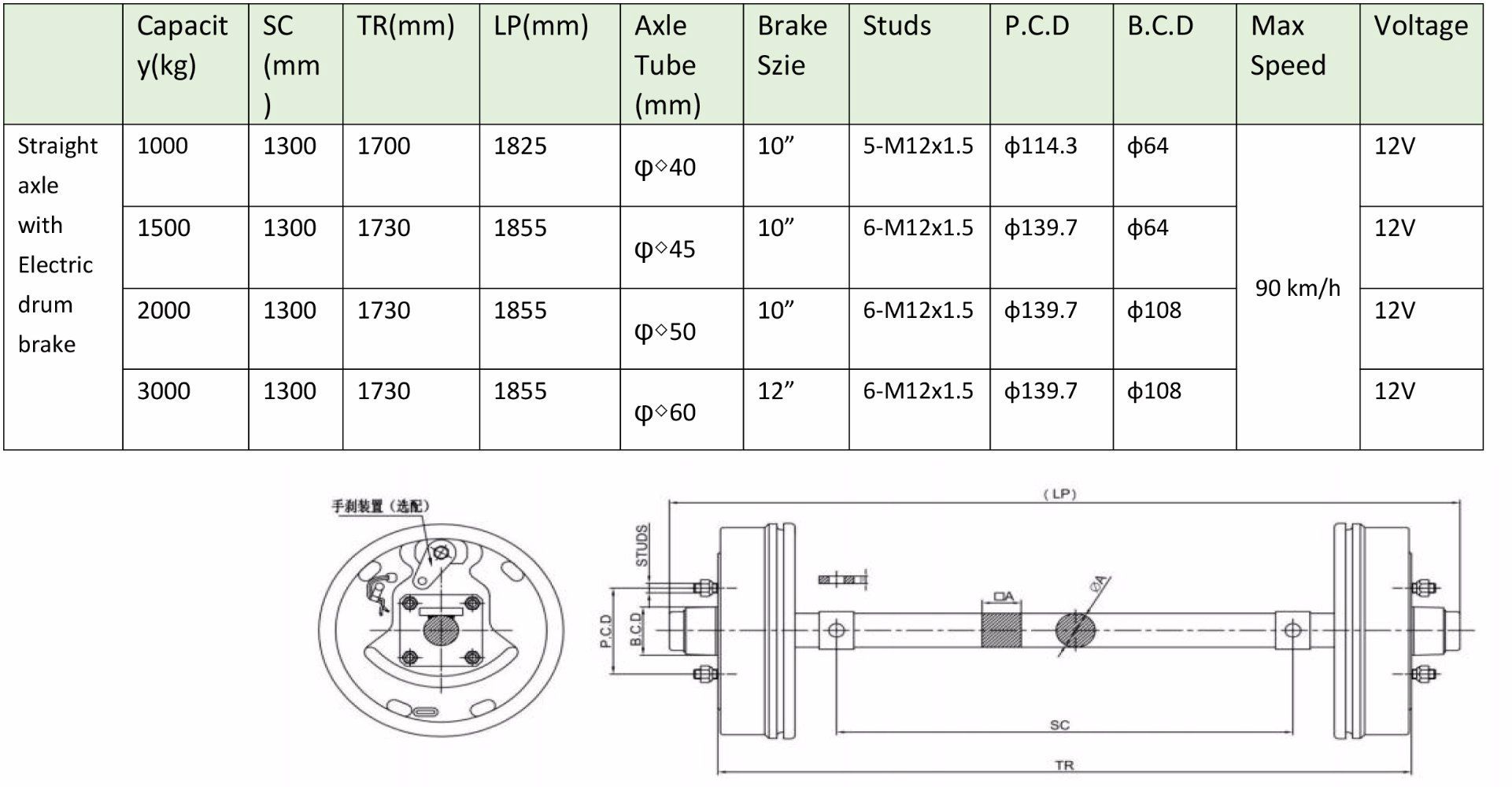

Specification:

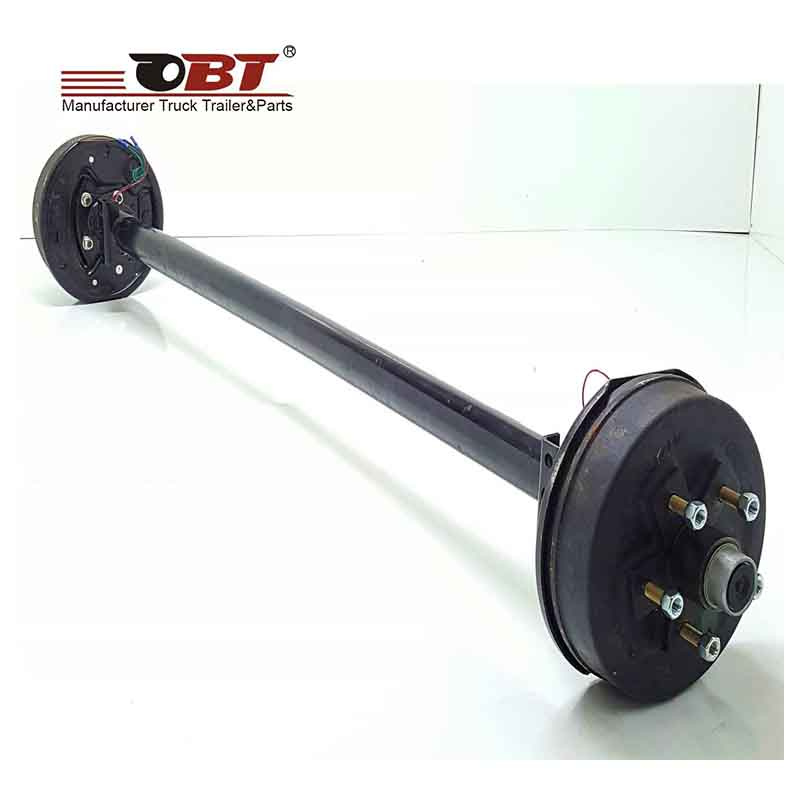

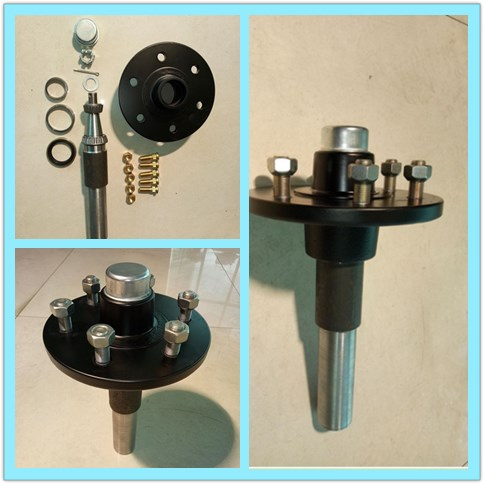

Products photos:

Packaging & Shipping

1. Standard package for shipping in containers.

2. Naked or pallet.

3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.

4. Support transit report with pictures.

One-stop Service:

1. Professional Production Team:
More than 300 Experinced workers, provide clients high assembling for fast quality delivery.

2.Customize:
Professional design team provide suitable programs and customized, support local adaptive trailer.

3. 7*24h Service
7*24h service provide professional fast response.

4. Parts Support:
Abundant parts supply provide lasting support for worldwide clients.

5. DDP Logistic Transport:
Deliver to client anywhere in the worldby best logistic supplier.

Please Contact me as below:

Prod Model:	OBT straight axle
Brand:	Obt®
Size:	Optional
Max Payload:	3ton
Sc (mm):	1300
Product Name:	Light Duty Electric Drum Brake Trailer Axle
Axle Tube (mm):	Optional
Tr(mm):	1700/1730
Studs:	5-M12X1.5/6-M12X1.5
Brake Szie:	10/12
Type:	Straight Axles

OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.

OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.

With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.

We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service

With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
