Light Duty 3000 Lb ATV Winch with Extreme Performance

Name: Light Duty 3000 Lb ATV Winch with Extreme Performance
Brand: ibuyautoparts.com
SKU: 838579775
Availability: InStock
Rating: 5 (79 reviews)

Price:	US $ 62-69/Piece
Min Order:	34/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

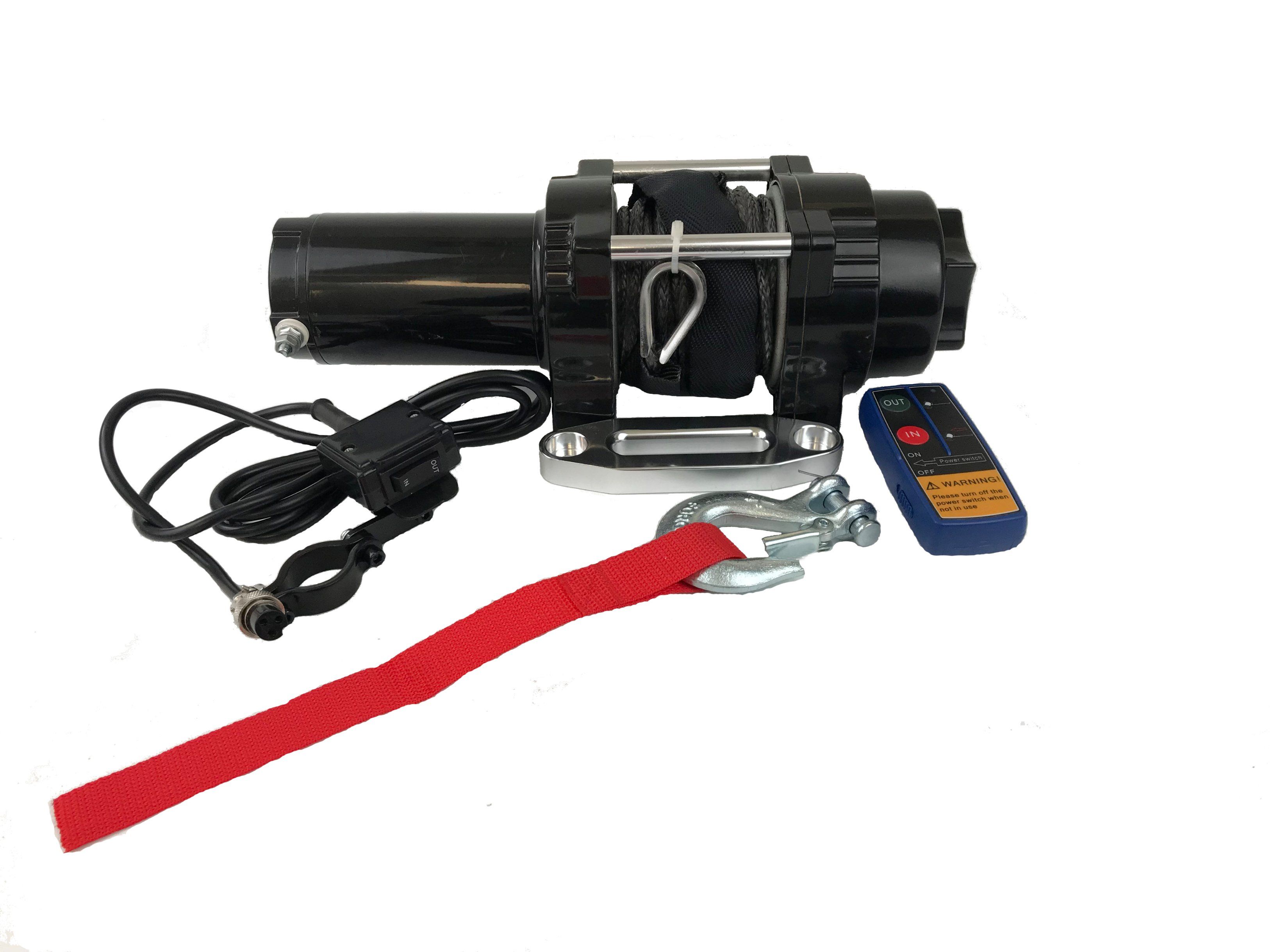

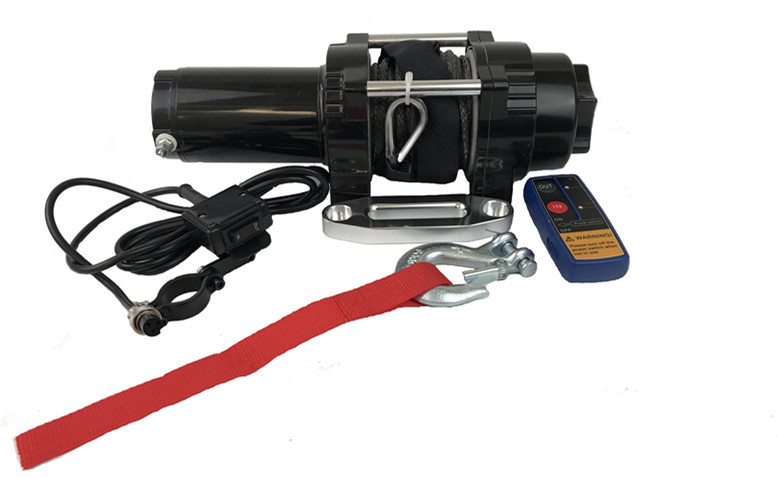

Specs & Features : ATV 3000LB WINCH
XM-XA803
1) Rated Line Pull: 3, 000lbs. (1, 361kgs) single-line
2) Motor: 12V DC, 1.1HP (0.82kw) permanent magnet, sealed
3) Control: Mini-rock switch and remote control, 10ft. (3.0m) lead
4) Geartrain: All-metal strengthens 3-stage planetary, sealed
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Cam activated
7) Brake: Automatic mechanical brake
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm), strengthens
9) Wire Rope: 40', 5.5mm diameter (12.25m, 5.5mm diam)
10) Cable management: Aluminum hawse fairlead
11) Recommended Battery: 12 AMP/hour minimum
12) Battery Leads: Color corded wire
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: OEM

PERFORMANCE DATA
Line Pull Lbs. (Kgs. )	Line Speed FT. / min (M/min. )	Motor Current	Pull by Layer layer / Lbs (Kgs. )
0	25 (7.6)	18	1 / 3000 (1361)
500	20 (6.1)	51	2 / 2640 (1198)
1000	17 (5.2)	88	3 / 2032 (1052)
1500	14 (4.3)	125	4 / 2040 (925)
2000	11 (3.3)	165
2500	9 (2.7)	204
3000	7 (2.1)	240

Prod Model:	XM-XA803
Size:	Compact Design
Weight:	Light Duty
Pulling:	3000lb
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
