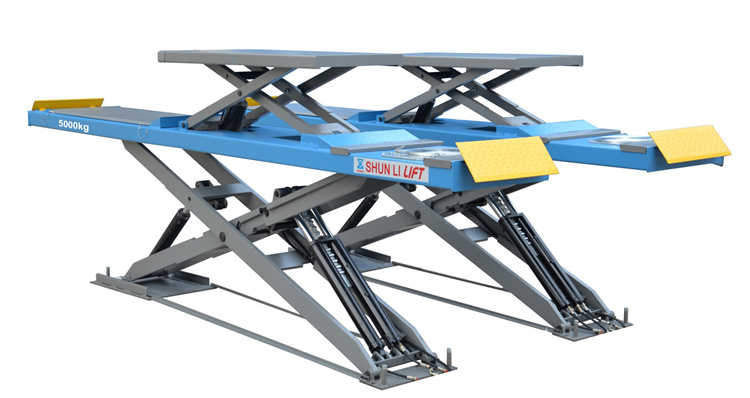

Lifting Equipment with Second Lifting 5000kg (SHL-Y-J-50CBL)
| Price: |
US $ 5700/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specification1. Ultra thin structure ,only 20 mm above the ground at the lowest level
2. Built-in anti-explosive equipment in the oil tank;
3. The stable performance of the oil level regulating device ensures the requirement of high precision and better synchronization performance ;
4. Open the pneumatic rack insurance device automatically when declining. The structure is more reasonable and more safe. Oil less and ultra abrasive resistance slider;
5. Adopts double hydraulic system, hydraulic lock and mechanical insurance three safety device. Dual pneumatic insurance device on the sub lift can meet different height requirements.
6. Conjoined and X structure, using high quality steel plate, made and designed by high precision CNC machine technology.
7. Solid steel plate, high strength, Corrosion resistant, not rust, not easy deformation, more reasonable structure and more safe;
8.The main hydraulic components are selected from importable parts from Japan, Germany, safe and reliable.
9. Second-level extensible platform.
Technical parameter
Model | SHL-Y-J-50CBL |
Lifting capacity: | 5000kg |
Host lift lifting height: | 1850mm |
Host lift platform length | 4500/5000mm(optional) |
Host lift platform width: | 640mm |
Second jack lifting Capacity | 5000kg |
Second jack lifting height | 500mm |
Second jack lifting length | 1580-1750mm |
Second jack lifting width | 600mm |
Motor | 3kw |
Power | 220V, 380V, as request |
Air pressure | 0.4-0.6Mpa |

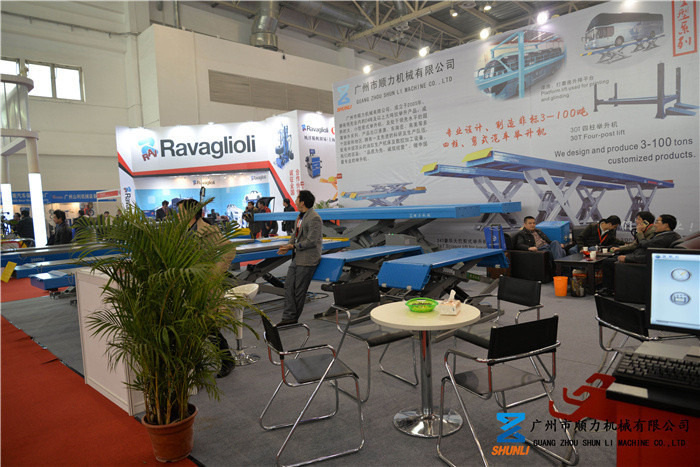

Exhibition Showing
Product advantage1. Easy control the lift table up &down by foot step
2. Can load the workpiece up and down, reducing working labor of worker.
3. Steady machine frame, durable and long life span
4. Almost o after-sales problem
5. The frame of this machine is welded by steel plate and Alloy solid steel with firm structure,
size accurate, machine the whole shape designs cultured beauty.
| Prod Model: |
SHL-Y-J-50CBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
3kw |
| Lifting Height (Main Machine): |
1850mm |
| Main Lifting Capacity: |
5000kg |
| Second Lifting Capacity: |
5000kg |
| Certification: |
ISO |
| Design: |
Scissor |
| Type: |
Eight Cylinder Hydraulic Lift |
| Lifting Capacity: |
5000kg |
| Brand: |
Shunli |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
