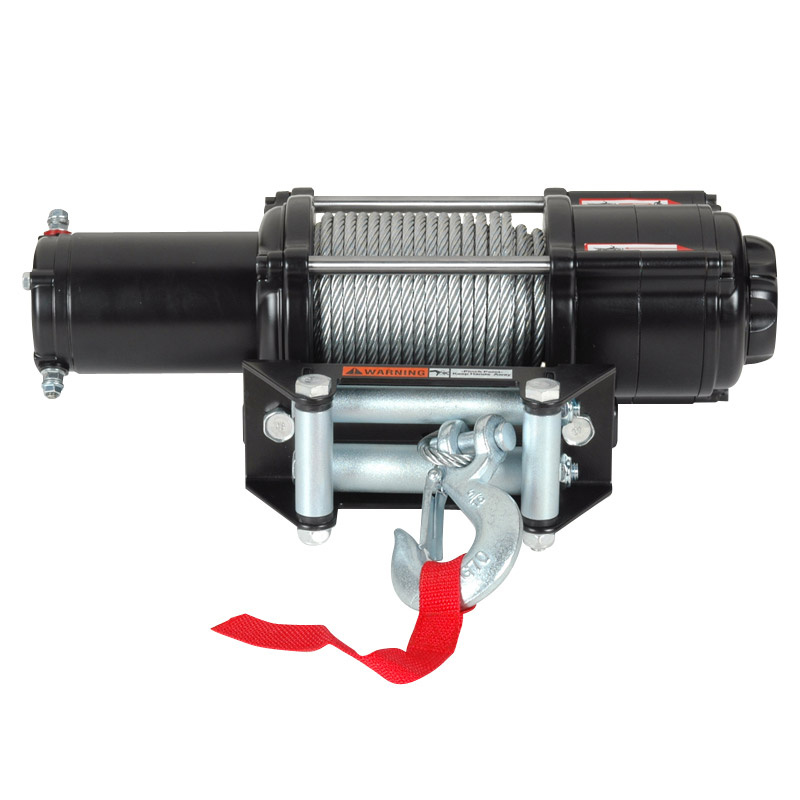

Lengthen Popular UTV Electric Winch with 4000lb Pulling Capacity

Name: Lengthen Popular UTV Electric Winch with 4000lb Pulling Capacity
Brand: ibuyautoparts.com
SKU: 625567915
Availability: InStock
Rating: 4.7 (127 reviews)

Price:	US $ 115.0-116.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
1)Rated line pull: 4000lbs. (1,814kg) single-line
2)Motor: 12V DC, 1.6hp (1.2kW) permanent magnet
3)Control: mini-rock switch and remote control, 10ft (3.0m) lead
4)Geartrain: 3-stage planetary
5)Gear ratio: 136:1
6)Clutch (free spooling): cam activated
7)Brake: automatic mechanical brake is available
8)Drum diameter/length: 2.0"/4.7" (51mm/119mm)
9)Wire rope: 55', 15/64" diameter (16.8m, 6.0mm diam.)
10)Fairlead: roller
11)Recommended battery: 500 CCA minimum for winch
12)Battery leads: 2 gauge
13)Duty cycle: intermittent
14)Finish: black or grey
15)Mounting bolt pattern: 3.0 X 6.6" (76X168mm)

Product Features:
1)Total steel shell. All metal, high precision, high strength of the 3 planetary gear group
2)As many as 12 seals to prevent water or sludge into the motor and gear box
3)Long-life sealed control switch
4)Full sealed large current contactor
5)Install four power wire convenient
6)Hot dip galvanized steel for air level or import SK75 Dyneema rope
7)Include components:mounting plate,roller fairlead/Aluminum Hawse Fairlead,G70 hook,contactor,handle switch,cabled remote switch,wire sets,hardware,Handsaver strap,Sheath of Rubber,ribbon,instruction,environmental protection lining packing,colour box etc
8)Optional componets: wireless remote control,4T snatch,safe rubber line stopper, winch cover ,ATV mounting
9)Small volume, light weight, strong tension etc. Suitable for small SUV, beach all terrain vehicle of JIMNY and light vehicle outdoor operation

PERFORMANCE DATA
Line Pull Lbs. (Kgs. )	Line Speed FT. / min (M/min. )	Motor Current	Pull by Layer layer / Lbs (Kgs. )
0	26 (7.9)	31	1 / 4000 (1814)
500	20 (6.1)	70	2 / 3520 (1597)
1000	16 (4.9)	106	3 / 3098 (1405)
1500	14 (4.3)	141	4 / 2726 (1236)
2000	11 (3.4)	175
2500	8 (2.4)	224
3000	7 (2.1)	245
3500	6 (1.8)	268
4000	4 (1.2)	308

Prod Model:	MRT4.0Li
Markets:	North America,Oceania,Eastern Asia,Western Europe
Drum:	Lengthen
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Brand:	Great

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
