Cixi Yuanhui Lighting Electric Co., Ltd.
Cixi Yuanhui Lighting Electric Co., Ltd. >> LED Non-Corrosive Fittings IP65

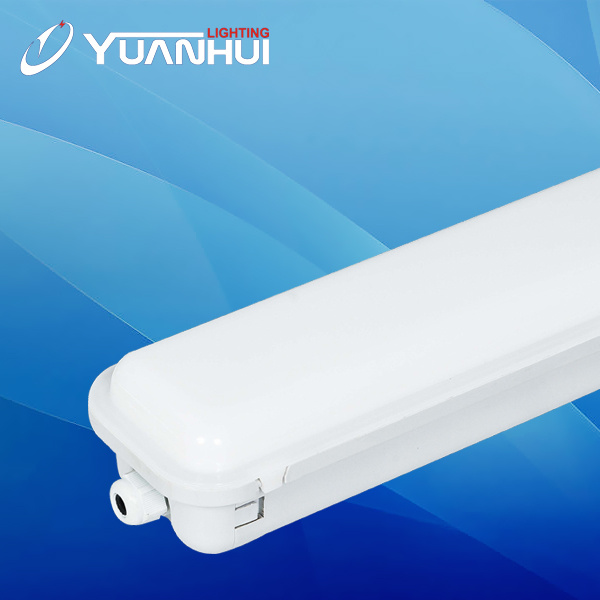

LED Non-Corrosive Fittings IP65

LED Non-Corrosive Fittings IP65
Price: US $ 25/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile

Technical Parameters(Test Conditions:25ºC /55%-60% Humidity):
Model No.WP-22WWP-44WWP-56WWP-76W
LensOpalClearOpalClearOpalClearOpalClear
CCT@Lumen
Output(lm)		                                   2700K-6500K(Standard:ANSI C78.377)
21152370424647575786642468517676
CertificateCE-LVD EMC ROHS GS CB ENEC SAA C-TICK
Power(W±10%)22W44W56W76W
LED
No./Spec.(SMD)		168PCS336PCS420PCS592PCS
Input Voltage(V)                            AC 100-240V/277V, 50/60Hz
CRI                                                        80
Beam Angle(°)                                                       120
Driver Type                                                 Meanwell
Operating
Ambient
Temperature(ºC)		                                                 -20~40ºC
Operating
Humidity(ºC)		                                                 10%~90%
Warranty                                               Up to 5 Years
IP                                                    IP65
IK                                                     IK08
GLOW WIRE TEST                                              Pass 850ºC
Material                                      Polycarbonate material
Net Weight(kg)1.722.843.64.4
Product Size(mm)600*110*861200*110*861530*110*861865*110*86

Product Description
1.INPUT VOLTAGE:AC100-240V/277V,50/60Hz.
2.HIGH PERFORMENCE-Meanwell Driver for maximum efficiency.
3.RELIABILITY-Reflector with MCPCB as heat sink.
4.RUGGED-Body & Diffuser have an HIGH  Impact Rating IK08 and Glow Wire Inflammability Test to 850 Celsius.
5.PERFECT REPLACEMENT for the whole se of T8 fluorescent lighting fixture.
6.SAVE UP to 60% in electricity consumption compared to fluorescent lighting fixture.
7.LONG LIFETIME-50,000 hours or typically Ten Years before replacement.
8.LIGHTWEIGHT body material, corrosion resistant, waterproof and dustproof.
9.EASY INSTALLATION with fast connection design, shorten the installation process and save labor cost.
10.FLEXIBILITY-Module can be fitted with Microwave sensors and an Emergency Battery to meet your special order requirement
11.WIDE OPERATING RANGE-IP65 Dust,Dirt and water resistant and temperature from -20 to +40ºC
Applications:
Multi-store Car Parks, Warehouses and Factories, Farm Building & Stable, Transport Hubs(platforms), Schools & Hospitals(walkways & kitchens), Glasshouses/Horticultural Buildings, Sports Stadiums etc.

Prod Model: WP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CRI: 80
Lens: Opal or Clear
Total Power: 22, 44, 56, 76W
Driver Type: Meanwell
Power: 16-88W
Emitting Color: White
IP Rating: IP65
Certification: cUL, GS, Ce, RoHS, SAA, EMC, UL, CCC
Voltage: 100-277V
Cixi Yuanhui Lighting Electric Co., Ltd. is located in Sanbei Industrial Area, Sanbei Town, Cixi City, Ningbo, covering an area of 12, 000 square meters. It takes us about 40 minutes' Drive to Ningbo Airport, 45 minutes' Drive to Ningbo Port, 2 hours' Drive to arrive in Shanghai and only 30 minutes' Drive to Hangzhou Bay Bridge. Our company enjoys convenient transportation.

Our new working areas are equipped with advanced injection machines, gear tray stamping and coating machines and assembly lines. Our annual production capability is 3 million sets of lighting fixtures. We provide products and services strictly in accordance with ISO9001, CE and GS standards.

Our main products are T8 and T5 series fluorescent lights with waterproof, dustproof and humidity proof functions.

Our mission: To offer high quality products and best service to all customers, and let Yuanhui walk to the world!

Our culture: Serious but still active, disciplined but remain innovative!

Our goal: To be the professionals in the fluorescent lighting fixtures line!

Our belief: Customers first and try our best to meet their requests and offer satisfactory products with the best prices.

Our principle: Strengthen the management and innovation for higher efficiency and development! Make Yuanhui to be a famous brand in the international market.
