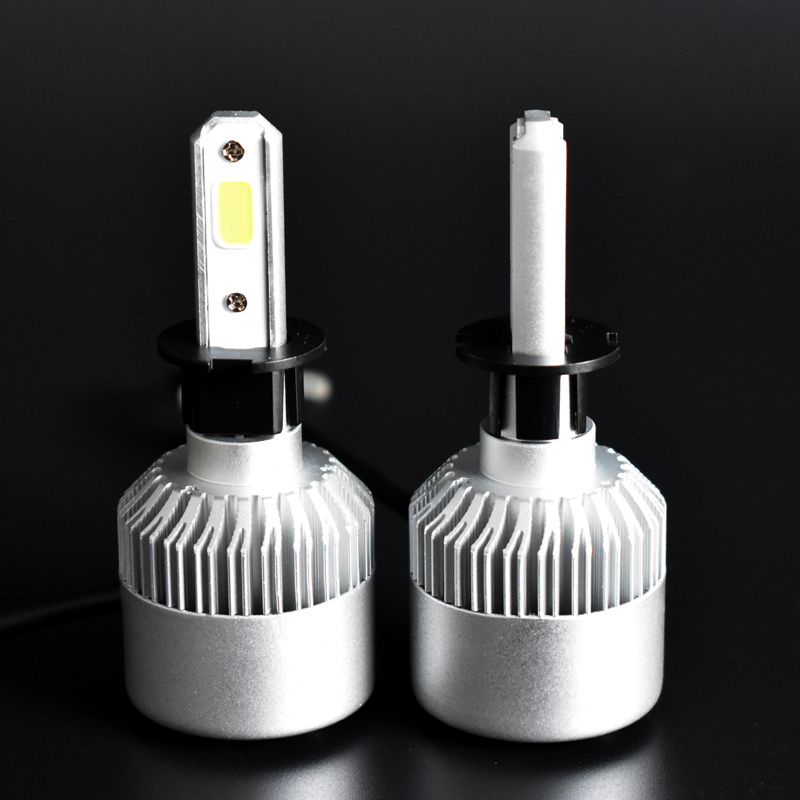

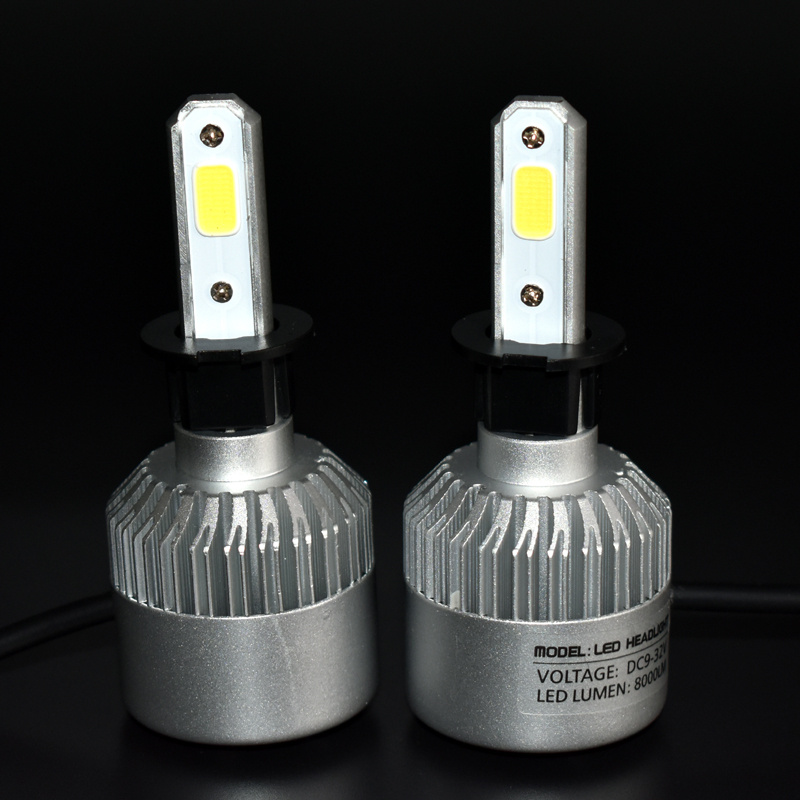

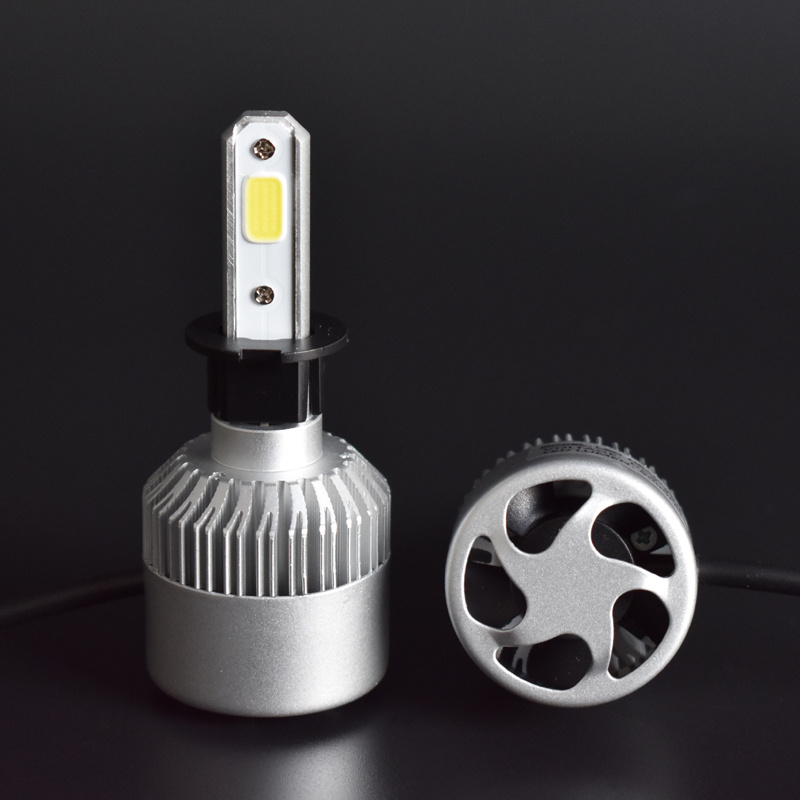

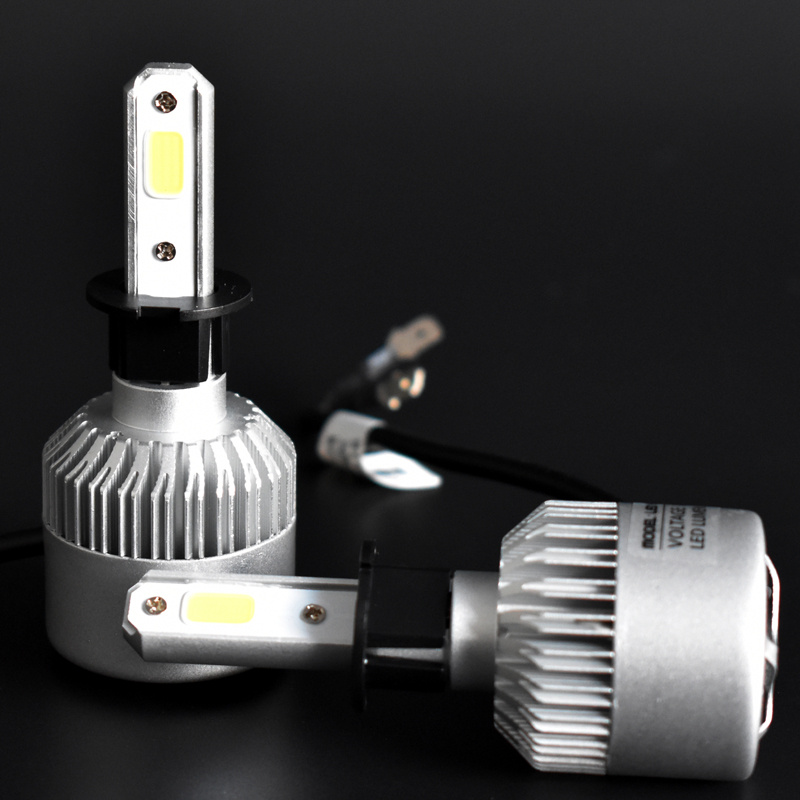

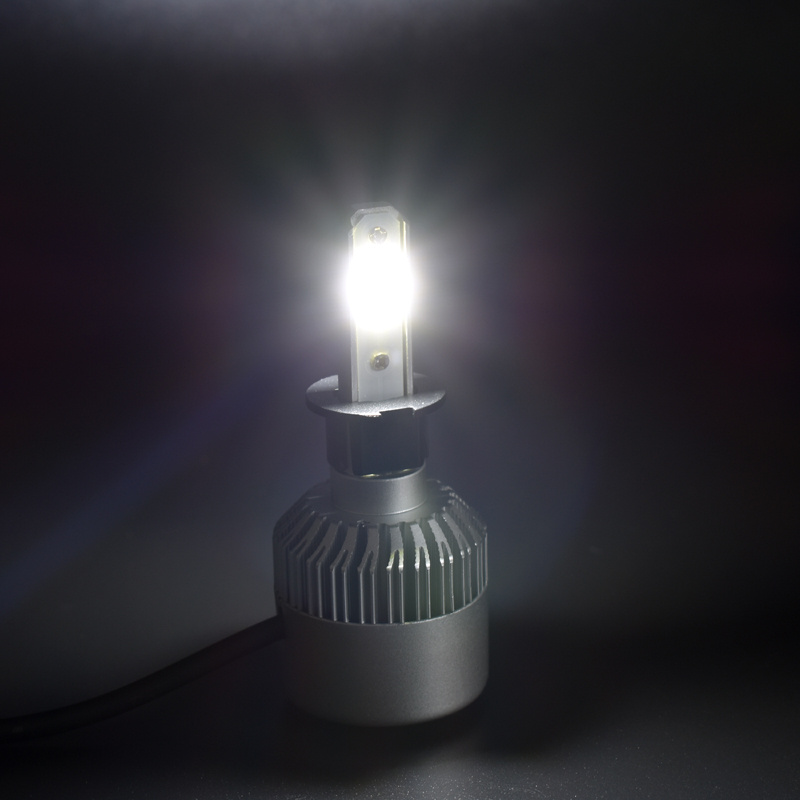

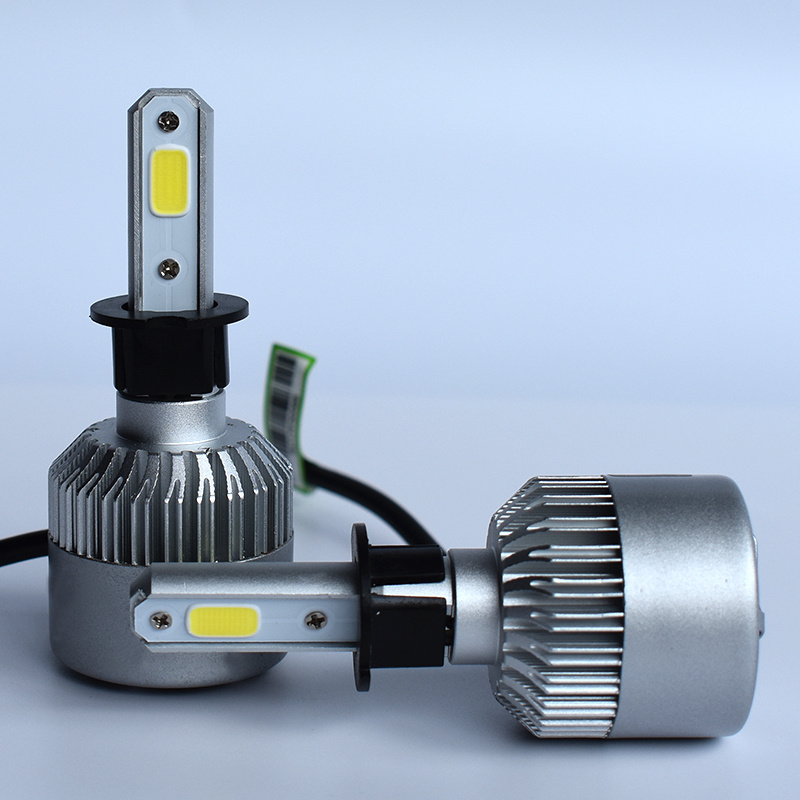

LED Headlight S2 H3 COB LED Car Headlight

Name: LED Headlight S2 H3 COB LED Car Headlight
Brand: ibuyautoparts.com
SKU: 823343385
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 1-9.9/Pairs
Min Order:	1/Pairs
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Description:

A-Plug Type:
Single Beam	Hi/Lo Beam
880/881	9004/9007
9005/HB3/9006/HB4	H4
9012	H13
H1
H3
H7
H8/H9/H11

B-Description:
ITEM	Specification
Lamp Bead Type	Single beam: 2pcs of COB/CSP LED Chips, Double beam: 3pcs of COB/CSP LED Chips
LED Substrate	Aluminum
Body Material	Air Aluminum
Wattage Power	30W/Bulb(60W/Set)
Design	Lamp body and power source together design
Size	Lamp	Bottom R	Top Lamp R	Body High H
	880/881	34.85mm	11.90mm	89.00mm
	9005/HB3/9006/HB4	34.85mm	14.00mm	86.65mm
	9004/9007	34.85mm	15.00mm	97.50mm
	9012	34.85mm	14.00mm	86.65mm
	H1	34.85mm	12.00mm	89.80mm
	H3	34.85mm	12.00mm	83.00mm
	H4	34.85mm	15.00mm	90.00mm
	H7	34.85mm	14.00mm	85.00mm
	H8/H9/H11	34.85mm	14.00mm	85.00mm
	H13	34.85mm	15.00mm	97.50mm
Lumens	3000lm/bulb(6000lm/set)
Input(A)	2.1-2.5A
Color Temperature	6000k-6500k Cool White
Voltage	DC 9-32V
Operating temperature	-45ºC to + 105ºC
Lifespan	More than 30000 hours
Waterproof	IP65 Waterproof
Heat dissipation	Built-in fan
Warranty	12 months

C-Packing and Delivery
Packing Details	Per set packing	2pcs/set In Gift Paper box	Qty./Ctn	50sets/ctn.
	Size for box	12185.1cm	Size for Ctn.	753332cm
	Weight/set	0.30kgs/set	G.W./ctn.	16.00kgs/ctn.
Delivery Detail	15--25days after confirm the order

More Information:

Prod Model:	S2 H3 COB
Material:	LED
Voltage:	12V
Function:	High Beam
Resistance:	Waterproof
Certification:	E-mark
Application:	Any Car
Base:	Aviation 6063 Aluminum
Brand:	Rucheng

Guangzhou Rouse Photoelectric Co., Ltd. is a professional R & D, manufacturing LED car headlights high-tech enterprises. Rouse Photoelectric Optoelectronics has a number of outstanding R&D and operations team, we committed to providing customers around the world with high-quality LED lights and professional services. Since the founding of the company, we has always insisted on the pursuit of excellence, intellectual craftsmen boutique, to provide high-quality LED car headlights / headlamps, LED fog lights, the main high-power COB and CSP lamp beads series LED lights. We firmly choose to product high quality product line.

Rouse Photoelectric has 6, 500 square meters of production plants, we are strictly abide by the ISO9001: 2008 and TS16949: 2002 international standards. From the product design and development to the supplier of the audit, the procurement of raw materials, the production process, the production process control, product quality testing, all sectors have reached the industry's highest standards of demand.

Rouse Photoelectric Main production equipments: 10sets of CNC, 5sets of DC Power Supply, 4sets of Bench drilling machine, 1set of cutting machine, 2sets of Bench type sand turbine, 14sets of AC spot welding machine, one lamp The aging test chamber, 2sets of HID light test machine, 5 production lines.

Rouse photoelectric vision: Quality and R&D-based, integrated industry resources, import innovative marketing model, the establishment of global sales channels, a leading brand industry.

Rouse photoelectric enterprise values: Attention to talent, training team, to create value, integrity-based, win-win cooperation.

We are willing to work with you to work together to create brilliant!
