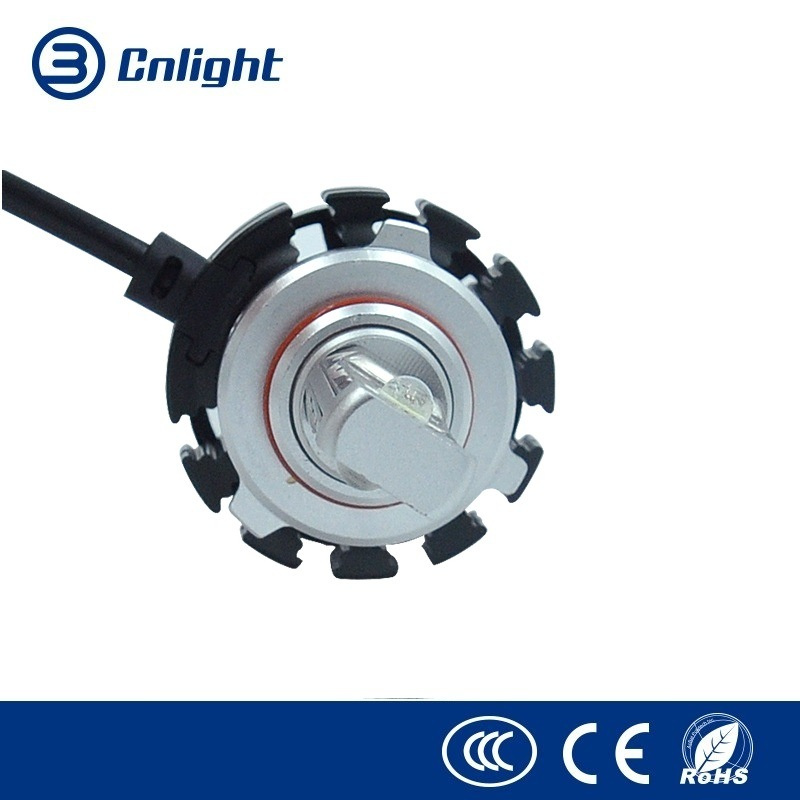

Specification| General |
| Brand | CNLIGHT |
| Item Model | M1-H1, H4,H7,H8.9.11,H13,H16,9005,9006,9012,D1S,D2S |
| Material | Aviation Aluminum + LED |
| Color | Silver |
| Cooling System | Aviation Aluminum housing
high thermal conductivity heat pipe High Speed Cooling Fan |
| Certificate | CE, RoHS, ISO/TS16949, ISO9001, ISO14001 |
| OEM & ODM Service | Yes, we can produce by your samples or technical drawings. |
| Specification |
| Color Temperature | 6000K |
| Power | Single Beam: 30W; Double Beam: Hi30W; Low25W |
| Lumens/Pair | Single Beam: 4000lm; Double Beam: Hi4000lm, Low3000lm |
| Rate Voltage | 9.5-16V DC |
| Working Temperature | -40°C ~ +85°C |
| Available Connector Type | Other types can be offered on request |
| Warranty | 18 months |
| Other Features |
| Lifespan | 5000 hours |
| Packing Details |
| Each pair packed in one color box, and 20 box in a carton |
| Color Box Size | 195*140*60mm |
| Carton Size / 20 box | 602*445*265mm 36Pairs |
| Lead time | 5-10 days after payment |
| Shipment | By DHL, UPS, FedEx, EMS, etc. |
| HS Code | 85122010 |
Features: 1. Energy Saving60% & 30% lower power consumption compared to Halogen & HID bulbs 2. Long life Span50,000 theoretical working hours3. Green Light SourceNo UV and IR radiation and Hg-free4. Instant IgnitionNo delay in ignition compared to HID5. Original Car Battery FriendlyLow starting currents, bring less impact and can extend the car battery's span life by more than 30%.6. Complete Kit: No Other Ballast/Driver Required.7. Easy installationPlug and Play, NO modification required Why Cnlight ?Cnlight LED Product Advantages:1. Brighter and stabler with CREE LED CHIP Leading brand with higher brightness and longer lifetime2. Strong structure forged by one-piece aviation-use aluminumEfficient thermal conductivity, lighter and stronger. 3. Super cooling fan with advanced accesories
1) The United States IC chip:
2) South Korea's ball;
3) Taiwan's technology;
4) Built-in double-bolt ball fan, rapid cooling; Cnlight Corporation Advantages:
- 25-year listed leading solution provider(Shenzhen SE 002076) for automotive lighting industry
- 3 nationwide manufacturing sites of over 120,000 square meter and 2000+ professional staff,
- Certified by ISO ISO/TS16949, ISO9001, ISO14001,E-Mark standards
- National R&D laboratory and national auto lighting standard setter
- OEM/ODM availability backed by R&D and production capacity
Partners & Sponsorship:1. Long term and friendly cooperation with leading lighting companies like Osram, GE and CREE
2. Chinese national fencing team strategic co-partner FAQ:Q1. Can you produce according to our samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q2. What is your sample policy?A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.Q3. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q4. Type of testing? What testing machines?A: Lumen test, High and low temperature test, Light distribution test, Life testing, Vehicle simulation vibration test, Torque test, Smoke test, Rally thrust testQ5: How do you make our business long-term and good relationship?A:1) We keep good quality and competitive price to ensure our customers benefit ; 2)We respect every customer as our friend and we sincerely do business and make friends with them, always trying to make a win-win result.3) Distributorship: We offer distributorship for your unique design and some of our current models.4) Confidentiality: We protect your sales area, ideas of design and all your private information.Installation Guide1. Led headlight kit installations start with preparation.You have to make sure the vehicle is off the battery is disconnected,and the engine is cooled down.This is will ensure your safety.2. Now we can move to the actual installation.If you have a single low beam kit,locate your low beam dust cover on the back of your headlight assembly.Remove the cover by twisting it counter clock wise.This should unscrew the dust cover giving you access to the bulb.Make sure you unplug the bulb from the wiring harness before you attempt to remove it.Now you can continue to place the LED bulb in place of the halogen bulb you just removed,just make sure you don't touch the glass part of the bulb.Customers can contact with us for installation detail for any bulbs size like 9007/9004 80W installation with more complicated steps.3. Installing the ballast/driver.First thing is to find a good location to place the ballast,somewhere close enough to able to reach the bulb with the wiring plugs.Once you have the ballast secured then you can proceed to plug the wiring to the bulb,and plug the old harness to the ballast.4. In Led headlight kit installation is to double check all the wiring plugs to make sure everything snapped into place correctly.Also double check to make sure that the ballast/driver is securely attached to the vehicle.Now you can reconnect your battery and test out your new LED upgrade.Should any of them be of interest to you, please feel free to contact us.
Queena Feng
CNLIGHT CO., LTD
Add: A Zone Sishan Technology Industry District Nanhai Foshan City, Guangdong, China 528225
Web: www.cnlight-lighting.com
www.cnlight.en.made-in-china.com
www.cnlight-hid.en.alibaba.com
www.cnlight.com
Tel: +86-757-86689721
Fax: +86-757-86695515 ext.017
Mobile: +86-13417896370

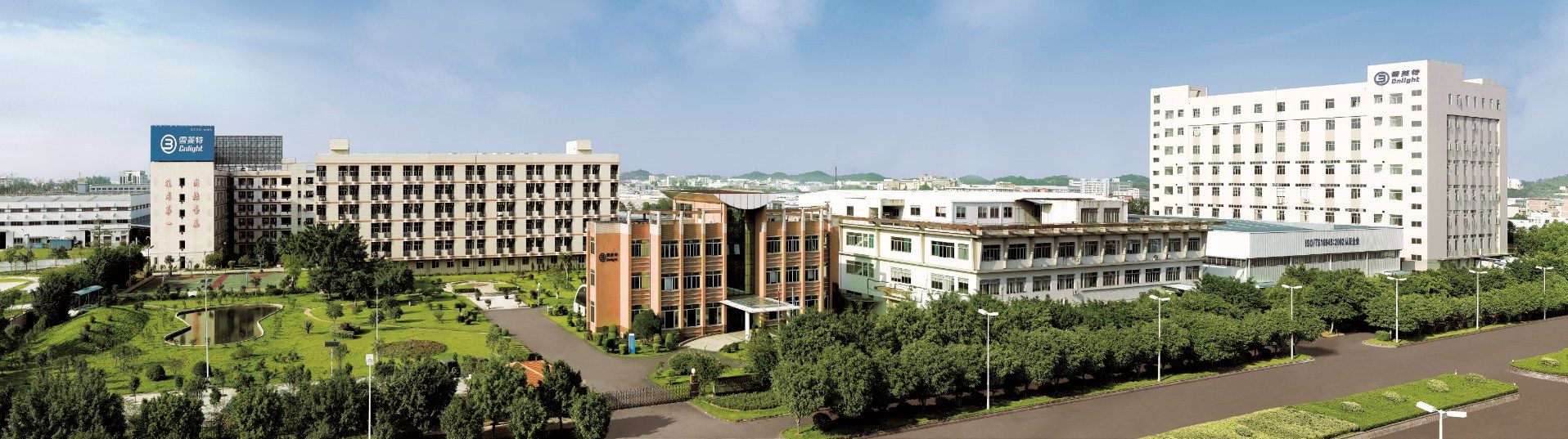

CnLight Co., Ltd., founded in1992 and headquatering in Foshan Guangdong, is a listed leading solution provider(Shenzhen SE 002076) specializing in automotive lighting industry. With 3 nationwide manufacturing sites over 120, 000 square meter and 2000+ professional staff, its business incorporates both Original Equipment Manufacturing and Aftermarket business segments. HID Xenon headlights and automotive LED lights for diverse purposes constitute the automotive lighting portfolio. Certified by ISO ISO/TS16949, ISO9001, ISO14001, E-MARK standards and with tremendous investments into its national R&D laboratory, CnLight is in constant pursuit of optimal service for global automotive lighting market to fulfill the enterprise mission to "light the future"
