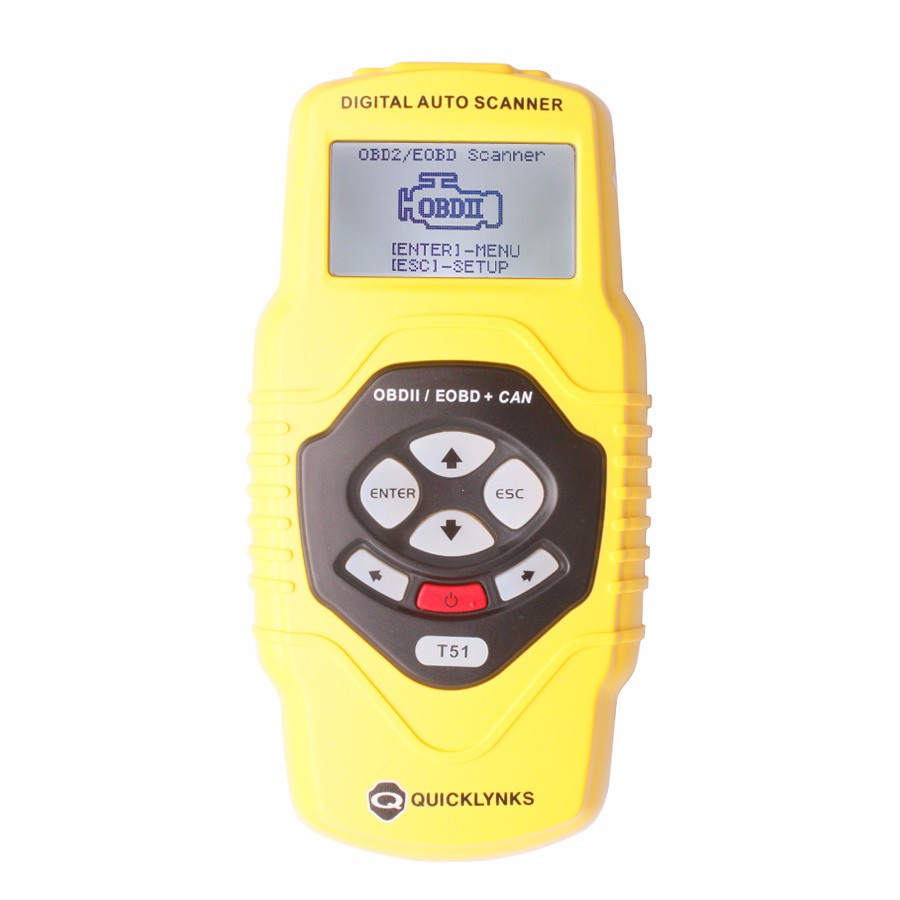

Leagend Quicklynks Multilingual Can Obdii Scanner T51 Auto Diagnostic Tool for OBD2 Eobd Jobd
| Price: |
US $ 60-63.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Quicklynks T51 |
| Hardware Version: |
Quicklynks T51 |
| Material Type: |
Plastic |
| Delivery Time: |
Within 2 Working Days After Payment |
| Warranty: |
One Year Warranty |
| T51 Function 1: |
Reads and Identifies Dtcs |
| T51 Function 2: |
Supports Vpw+PWM+ISO9141+Kw2000 Protocols |
| T51 Function 3: |
Supports Can Protocol |
| T51 Function 4: |
Resets Check Engine Light / Mil |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Product Description
Multilingual CAN OBDII Scanner T51 Auto Diagnostic Tool for OBD2 EOBD JOBD Functions Description
1. Reads and identifies DTCs (Diagnostic Trouble Codes) : Generic Codes (P0,P2,P3,U0) and Manufacturer Specific Codes (P1,P3,U1) , erases touble codes
2. Supports VPW+PWM+ISO9141+KW2000 protocols
3. Supports CAN (Controller Area Network) protocol
4. Reviews OBD2 monitor and I/M (Inspection and Maintenance) readiness status
5. Detects OBD2 freeze frame information
6. Retrieves VIN (Vehicle Identification No.) on 2002 and newer that support Mode 9
7. Resets check engine light / MIL ( malfunction indicator lamp) status
8. On-line update software with a standard windows PC
9. Displays DTCs and definition both on unit screen
10. Large LCD display (128 x 64,backlit) with adjustable contrast
11. Up to 7 Keypads for easy operation.
12. Auto-save at off-vehicle status and one year warranty.
13. Detachable and replaceable 16-pin OBD2 cable
15. Multilingual: English, German, Spanish, French, Dutch.
Specifications:| Display | backlit, 128 x 64 pixel display with contrast adjustment |
| Operating temperature | 0 to 50C (32 to 122 F) |
| Storage temperature | -20 to 70C (-4 to 158 F) |
| Power | 8 to 16 Volts provided via vehicle battery |
| Dimensions | Length/Width/Height :209 mm (8.22") /107 mm (3.74") /37 mm (1.38") |
| NW | 0.73kg (1.611b) |
| GW | 0.98kg(2.161b) |
Vehicle Coverage
All OBD2 & EOBD & JOBD compliant vehicles with a 16-pin Interface(include all 1996 and newer cars, light trucks and SUVs sold in the United States,all 2000 and newer sold in the Europe, Japan and Asian Area) CAN, VPW, PWM, ISO9141, KW2000 protocols compliant vehicles(including those equipped with the next-generation protocol Control Area Network.)
Car List
European Car
Janpanese and korean Cars
American Cars
Packing list
1. User's Manual (Instructions on tool operations)
2. CD (Includes user's manual, DTCs lookup library, etc.)
3. OBD2 Cable (Works between OBD2 tool and vehicle)
4. USB Cable (Used to update the scan tool)
5. Carry Case (A nylon case to store the whole set scan tool)
