Prod Model: |
X-431 Pro3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operating System: |
Android 5.1 |
Abundant Special Functions: |
Professional Universal Auto Diagnostic Scanner |
Updating: |
Via Internet |
Function: |
Universal Scanner |
Wide Car Model Coverage: |
Supports All Electronic Control Systems of 12V Car |
Remote Diagnosis: |
Allows Technicians to Diagnose Customer's Vehicle |
Online Repair & Service Resources: |
Delivers Genuine OEM Service & Repair Information |
Golo Business Manager: |
This Module Is Designed to Develop New Customers |
One-Click Upgrade: |
Diagnostic Software Can Be Upgraded Online by One- |
Bluetooth Scope: |
Within 10 Meters. |
Certification: |
ISO |
Update Method: |
by Internet |
Product Description

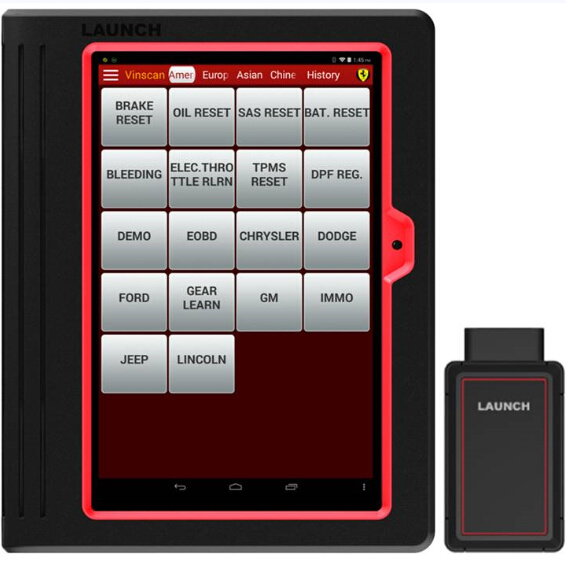

X-431 PRO3 is a brand new advanced automotive fault diagnostic tool based on Android 5.1 system. It passes on
Launch advantages in automotive fault diagnostic technology, such as wide car model coverage, powerful function,
abundant special functions and accurate test data, etc. X-431 PRO3 achieves full car model and full system fault
diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminals.
X-431 PRO3 supports reading DTCs, clearing DTCs, reading data stream, actuation test, special functions, matching,coding and programming etc.
X-431 PRO3 takes the advantage of mobile internet to share the massive maintenance data and case library on DBSCar platform. A comprehensive and powerful golo business manager module is newly released on X-431 PRO3S,which is specially designed for repair shops to develop and manage customers, increasing customer's retention andboosting shop revenue. This module integrates instant messaging and remote diagnostic function, which is convenient for service shops to interact with car owners, and perform the remote diagnosis with speed. addition, the One-clickUpgrade function makes it possible for the diagnostic tool to upgrade online at any time.
FEATURE:1.Abundant Special Functions: X-431 PRO3 supports the matching, coding, programming and common special functions of programmable modules for most vehicle makes, such as battery reset, brake reset, oil reset, ABS bleeding, throttle adaptation, TPMS reset, DPF regeneration, gear learning and IMMO, etc.
2. Wide Car Model Coverage: Supports all electronic control systems of 12V cars, covering more than 150 vehicle makes and ten thousands of model years, such as Maserati, Ferrari, Rolls-Royce, Bentley, Mercedes Benz, BMW, Audi etc.Achieves full car model and full system fault diagnosis
3.Remote Diagnosis : This powerful function allows technicians to diagnose customer's vehicle quickly even the vehicle is on the road or far away from the repair shop. The remote diagnosis can be conducted between the following parties: 1) technician and golo user; or 2) different technicians.
4. Online Repair & Service Resources : X-431 PRO3 delivers genuine OEM service & repair information on more than 1600 vehicle models to dealership technicians, including online How-To videos, wiring diagrams, automotive handbook, repair case and operation skills etc.
5. One-click Upgrade: Diagnostic software can be upgraded online by one-click. To enjoy better functions and services, it is suggested to upgrade the software frequently. Whenever a new version is available, the system will remind you to update.
6.golo Business Manager: This module is designed to develop new customers, monitor the running conditions and maintenance plans of customer's vehicles and manage regular customers and technicians, which is helpful for repair shops to increase customers' retention and boost shop revenue.
SPECIFICATION:Tablet PC Parameters
OS:Android 5.1
Battery:7000mAh lithium polymer battery
Display:10.1 inch capacitive touch screen
Resolution:1280*800
CPU:Quad-core 1.3GHz
Internal storage:1G
Memory:16GB,support TF card up to 32G
Camera:Front 2 Megapixel; Rear 5 Megapixel
Weight:0.53kg
Dimension:247*171*8.95mm(LxWxH)
Working Temperature:-10ºC~50ºC
Connector Parameters
Connection Method: Standard OBDII
Dimension:103mm*62mm*28mm
Working Voltage:9V DC--18V DC
Test Voltage:DC12V
Power Consumption:≤2W
Bluetooth:10 meters
Diagnosis:Bluetooth
WorkingTemperature: -10 ºC-50ºC
SPARE PARTS:
NO. | Part Code | Part Name |
---|
1 | 105040059 | DBScar,GEELY-22 diagnostic connector |
2 | 203010575 | DBScar,BENZ-38 diagnostic connector |
3 | 105040062 | DBScar,TOYOTA-17 diagnostic connector |
4 | 105040063 | DBScar,MAZDA-17 diagnostic connector |
5 | 105040064 | DBScar,TOYOTA-22 diagnostic connector |
6 | 105040067 | DBScar,CHRYSLER-6 diagnostic connector |
7 | 105040068 | DBScar,KIA-20 diagnostic connector |
8 | 105040069 | DBScar,SUBARU-9 diagnostic connector |
9 | 105040070 | DBScar,SSANGYONG-20 diagnostic connector |
10 | 105040072 | DBScar,BMW-20 diagnostic connector |
11 | 105040074 | DBScar,GM/VAZ-12 diagnostic connector |
12 | 105040076 | DBScar,MITSUBISHI/HYUNDAI-12+16 diagnostic connector |
13 | 105040078 | DBScar,AUDI-4 diagnostic connector |
14 | 105040079 | DBScar,FIAT-3 diagnostic connector |
15 | 105040081 | DBScar,UNIVERSAL-3 diagnostic connector |
16 | 105040060 | DBScar,HONDA-3 diagnostic connector |
17 | 105040080 | DBScar,GAZ diagnostic connector |
18 | 105040082 | DBScar,SSANGYONG-14 diagnostic connector |
19 | 105040083 | DBScar,BENZ-14 diagnostic connector |
20 | 105040084 | DBScar,SUZUKI-3 diagnostic connector |
21 | 105040085 | DBScar,DAIHATSU-4 diagnostic connector |
22 | Y203010556 | DBScar, NISSAN-14+16 diagnostic connector |
23 | Y203010554 | DBScar, FORD-6+1 diagnostic connector |
24 | 105040065 | DBScar,GEELY-22 diagnostic connector |
