Refine Technology Limited >> Launch X431 PRO Mini Scanner Auto Diagnostic Tool with Bluetooth Function 2 Years Free Update Online
Launch X431 PRO Mini Scanner Auto Diagnostic Tool with Bluetooth Function 2 Years Free Update Online
| Price: |
US $ 775.99-839.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
X431 Pro Mini |
| Update Service: |
2 Years Free Update Online |
| Screen Size: |
6.9" LCD Screen |
| Version: |
Global Version |
| Language: |
Multi-Language |
| Communication: |
WiFi/Bluetooth |
| Packing Size: |
40*30*11cm |
| Gross Weight: |
3.5 Kg |
| Storage: |
16GB |
| Battery: |
3000mh Rechargeable Polymer Lithium Battery |
| Warranty: |
1 Year |
| Certification: |
GS |
| Update Method: |
by Internet |
Product Description
What is Launch X431 Pro Mini Scanner Auto Diagnostic Tool?Launch X-431 PRO MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.
Through the simple Bluetooth communication between the VCI module and X-431 PRO MINI, it achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream,Actuation Test and Special Functions.

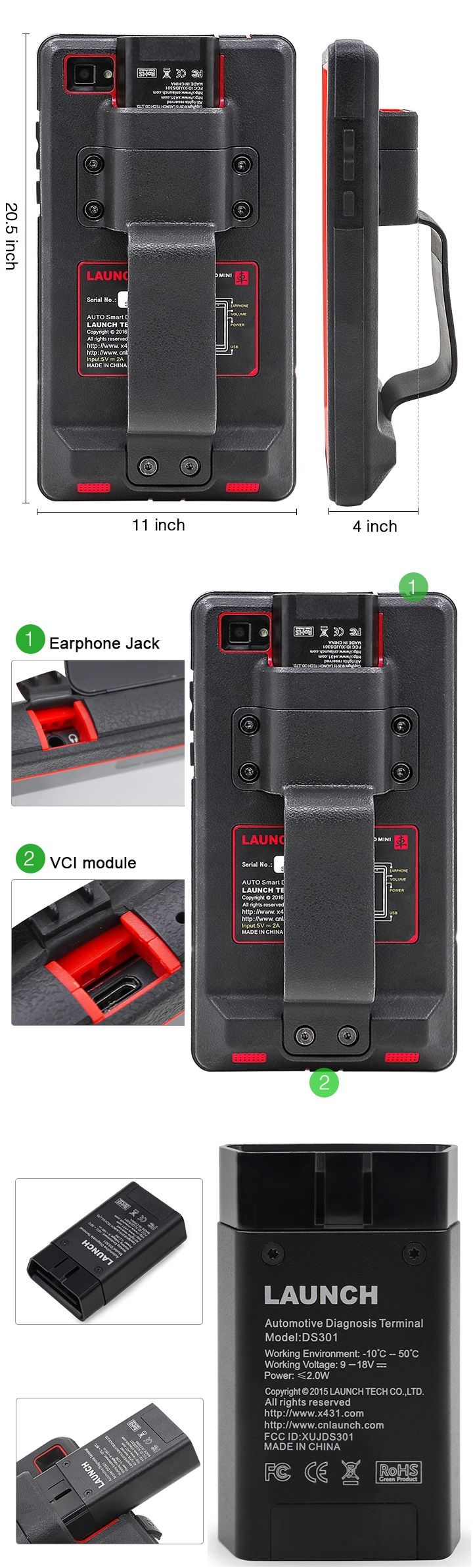

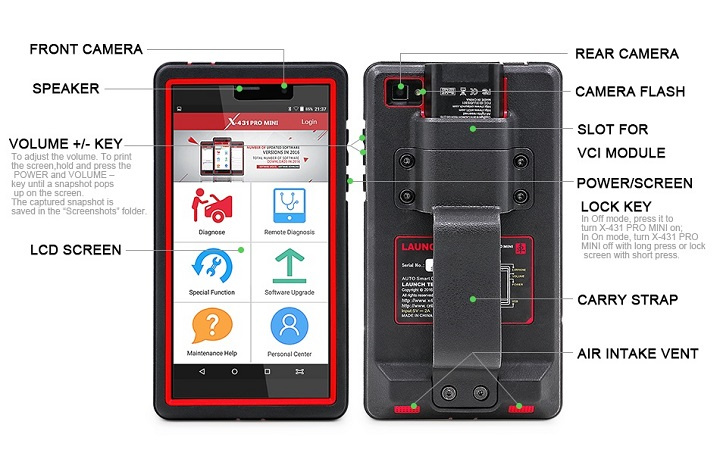

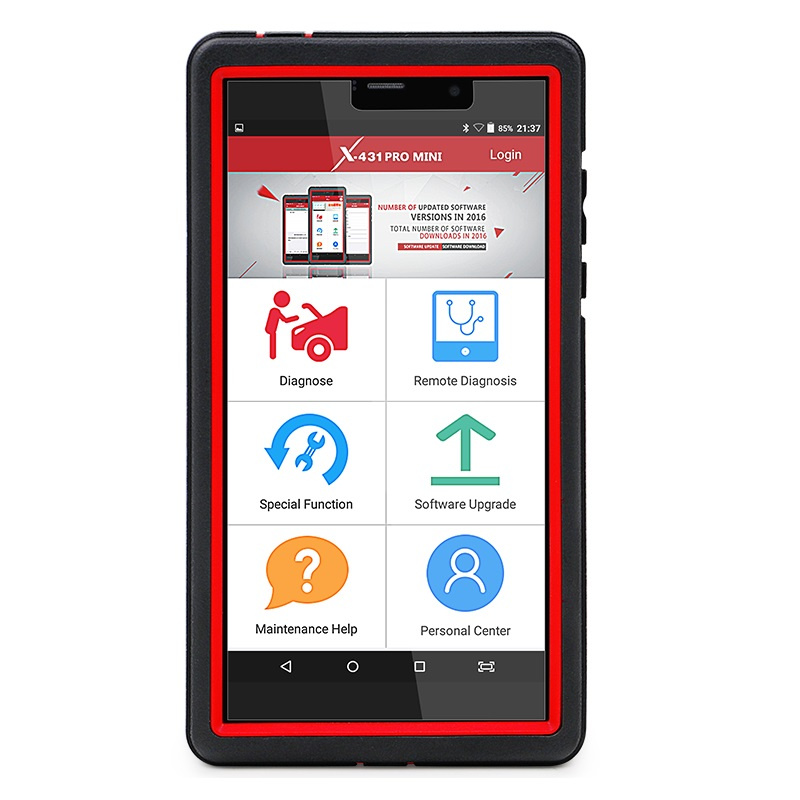

Moreover, it supports Wi-Fi connection, which allows you to surf the Internet,update the diagnostic software online and perform remote diagnosis etc, getting your job fixed faster and easier.Launch X431 Pro Mini Product Display
Launch X 431 Pro Mini Tech Parameters:| Operating System | Android 5.1 |
| Processor | Quad Core 1.3GHz |
| Memory | 2GB |
| Storage | 16GB |
| LCD screen | 6.9 inch with a resolution of 1280 x 720 pixels |
| Camera | Front-facing 2MP camera + rear-facing 5MP camera |
| Battery | 3.7V/3000mh rechargeable polymer lithium battery |
| Connectivity | Wi-Fi: WLAN 802.11b/g/n |
| Bluetooth | Bluetooth 4.1 |
| Working temperature | 0ºC ~ 45ºC |
| Storage temperature | -10ºC ~ 50ºC |
VCI Module| Working voltage | 9 ~18V |
| Average working current | About 85mA |
| Standby current | About 55mA |
| Working temperature | -A20 ~ 55ºC |
| Storage temperature | -20ºC ~ 70ºC |
| Relative humidity | 20% ~ 90% |
DBSCarIII Adapter Parameters:The brand-new DBScarIII adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports CAN diagnosis also USB data transfer.| Size | 69 × 40 × 18 mm |
| Operating voltage | 9V DC - 18V DC |
| Test voltage | DC12V |
| Typical power consumption | ≤2W |
| Bluetooth distance | 100 m |
| Connectivity | Bluetooth + wired |
| Operating temperature | -10ºCto 50ºC |
| Red Indicator | Turns red when connected to power supply |
| Blue Indicator | Turns blue then wireless Bluetooth work |
| USB work | Turns green when the connector is connected to the USB cable |

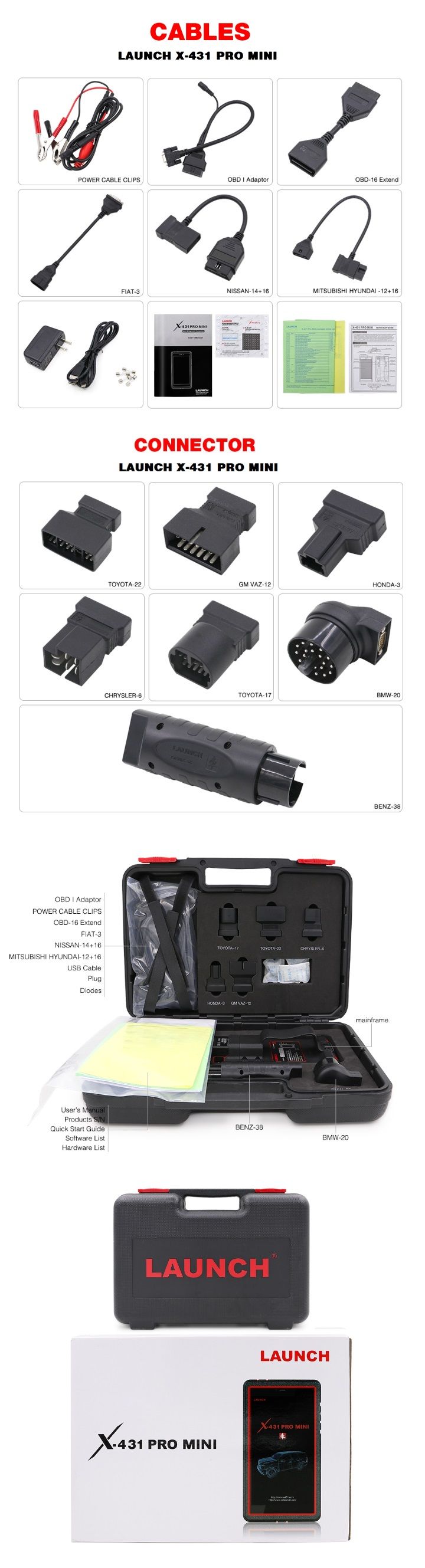

Launch X431 Pro Mini Packing List1pc x X-431 PRO MINI Device
1pc x Password envelope
1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the VCI module)
1pc x Battery clamps cable
1pc x Power adaptors
1pc x Non-16pin connectors (For connecting non-OBD II vehicle)Similar Products Comparison: | Model No. | X431 V PRO | X431 V 8" Overseas Version | Launch X431
Pro Mini |
| Automotive Diagnostics | √ | √ | √ |
| upgrade | √ | √ | √ |
| Remote Diagnosis | √ | √ | √ |
| Recording and playback | √ | √ | √ |
| special function | √ | √ | √ |
| Waveform Display | √ | √ | √ |
| VIN Identification | √ | √ | √ |
| feedback | √ | √ | √ |
| Diagnostic Software | 100, click for software list | 108, click for software list | 108, click for software list |
| OS | Android | Android 4.2 | Android 5.1 |
| SIZE | 7-inch Tablet, 1024X600 | 8 inch Tablet | 6.9 inch 1280 x 720 |
| CPU | Dual core 1GHz | quad-core 1.3 GHz | Quad core 1.3 GHz |
| RAM | 512MB | 1GB | 2GB |
Capacity
(internal / SD card) | 2GB | 16GB | 16GB |
| Battery | 3000mh, rechargeable polymer lithium battery | 4290 mAh | 3.7V/3000mh rechargeable polymer lithium battery |
| Pixels | 2 mega rear and 0.3 mega front | Front 2 mp / Back 5mp | Front-facing 2MP camera + rear-facing 5MP camera |
| Communication | WIFI/Bluetooth | WiFi/Bluetooth | Wi-Fi: WLAN 802.11b/g/n, Bluetooth: Bluetooth 4.1 |
| Update | one-click update online for 2 years free | one-click update online for 2 years free | one-click update online for 2 years free |
Launch X431 V+ Software UpdateAfter you received the X431 V+ you need to provide us your serial #, language and country you will use for activation we will help you activate the authority.
After activation ,you can You can directly register on www.dbscar.com ( Please choose X431-V+ or X431VPLUS2016 as product type)
Dealer code is 86A or 86K. Register code can be found from the password paper.You can use it freely after updating software to LAUNCH X431 V+ .
One click update:
No need to download software to memory card anymore, you can do one click update directly through X431 V+
Kindly notice:
1.Please check if your X431VPlus apk in your scanner is the latest one ,if not, you need to update to latest X431 V+ .
2.Please do remember the account and password you register your X431 V+, because it is very important, without which you can not download car software
3.How to find user manual on your scanner? Open X-431 V+ apk,find "Profile"--"Help",you will see "USER MANUAL"FAQQ1:What's the screen size of X431 V ?
A1: 8 inch
Q2: How many car brands can it support?
A2: It can support for 72kinds of car brands,such as Asian,European and American ect.
Q3: Which website can I update my machine?
A3: dbscar.com
Q4: Why my machine is IP limited?
A4: Since all of launch original machine,we need to send to launch company for activation,pls send your serial number and your country also your selected language to us,we will help you to activate it. it will take about 2 working day for activation.Our Services:☆ Your inquiry related to our products or prices will be replied in 24 hours.
☆ Well-trained and experienced staffs to answer all you enquiries in fluent English.
☆ OEM & ODM Service offered, any of your customized products we can help you to design and put into production.
☆ Timely delivery.
☆ Lifetime technical support.Contact Details
