Launch X431 Creader 519 Obdii/OBD2 Code Reader Car Diagnostic Tool

Launch X431 Creader 519 Obdii/OBD2 Code Reader Car Diagnostic Tool
Price: US $ 53-56/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Creader 519
Update Service: 2 Years Free Update Online
Version: Global Version
Language: English, French, Spanish
Screen: 2.8" TFT 320*240 Dpi Display
Input Voltage: 9~18V
Connection: Standard 16pin OBD Diagnostic Interface
Packing Size: 10*10*5cm
Gross Weight: 0.5 Kg
Working Temperature: 0 ~ 50 Degree Celsius
Warranty: 1 Year
Certification: ISO
Update Method: by Internet

Product Description

Launch X431 Creader 519 OBDII/OBD2 Code Reader Car Diagnostic Tool

Lanch X431 CReader 519 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, and USB interface internet update, which facilitates car maintenance.




Support Language: English, Spanish, French, Russian, German, Portuguese, Japanese, Chinese


Highlights of Launch X431 Creader 519 OBDII/OBD2 Code Reader Car Diagnostic Tool
THE FEATURES YOU NEED: 2.8"Color LCD display; View freeze frame data; View graphical and numeric data streams; Sensor tests; Monitored systems tests;No batteries, power supply through OBDII cable.

THOUGHTFUL DESIGN: All-in-one screen and easy-to-use hotkeys make the CReader 519 an ideal tool for the DIYer and professional technicians alike.

POWERFUL FUNCTIONS: Full OBDII/EOBD Diagnostic Functions. Read & Clear DTCs, I/M Readiness Status, Read Freeze Frame, Read Datastream, Read Vehicle Information, O2 Sensor Test, On board Monitored systems Test (mode 6), Read pending DTCs, Read permanent DTCs, Turns off Malfunction Indicator Light (MIL).

QUALITY GUARANTEE: Multilingual Support; Instructions with two languages (English and Spanish). The tool can be update via USB cable.It is running the latest software, can be used without update.


Functions of Launch X431 Creader 519 OBDII/OBD2 Code Reader Car Diagnostic Tool:
1. OBD full functions:
    1) Read dynamic data streams and MIL
    2) Read readiness status
    3) Query freeze frame data
    4) Read current DTCs
    5) Clear DTCs
    6) O2 sensor test
    7) On-board monitor test(mode 6)
    8) Read pending DTCs
    9) Read vehicle information
    10) Read permanent DTCs
2. Color and graphical display of data streams
3. Query DTCs
4. Free update of USB interface via internet
5. Multilingual support



Tech Parameters for Launch X431 Creader 519 OBDII/OBD2 Code Reader Car Diagnostic Tool
Screen2.8" TFT 320*240 dpi
Voltage range9-18V
Operating Temperature0~ 50
Environment Temperature-20~70
Dimension142mm*85mm*30 mm (5.6 *3.4*1.2)
Weight320g

Register & Update
The tool can be updated via USB cable.
Note: make sure the PC has Internet connection.
1. Go to www.dbscar.com and download the update tool to the computer.
2. Decompress and install it on your computer (compatible with Windows XP, Windows7, Windows 8 & Windows10)
3. After installation, connect one end of the USB cable to the USB port of PC, and the other end to the tool.
4. If a newer version is found, a screen similar to Fig A will appear.
5.  Launch the update tool on your PC, [Device upgrade] box will appear.
6. Choose the desired interface language and then click [Device Update] to enter update center.
7. Choose the software version and then click [Update] to start updating.
8. Once update is complete, a 'Upgrade success' message box will pop up. Your tool is now ready for use.

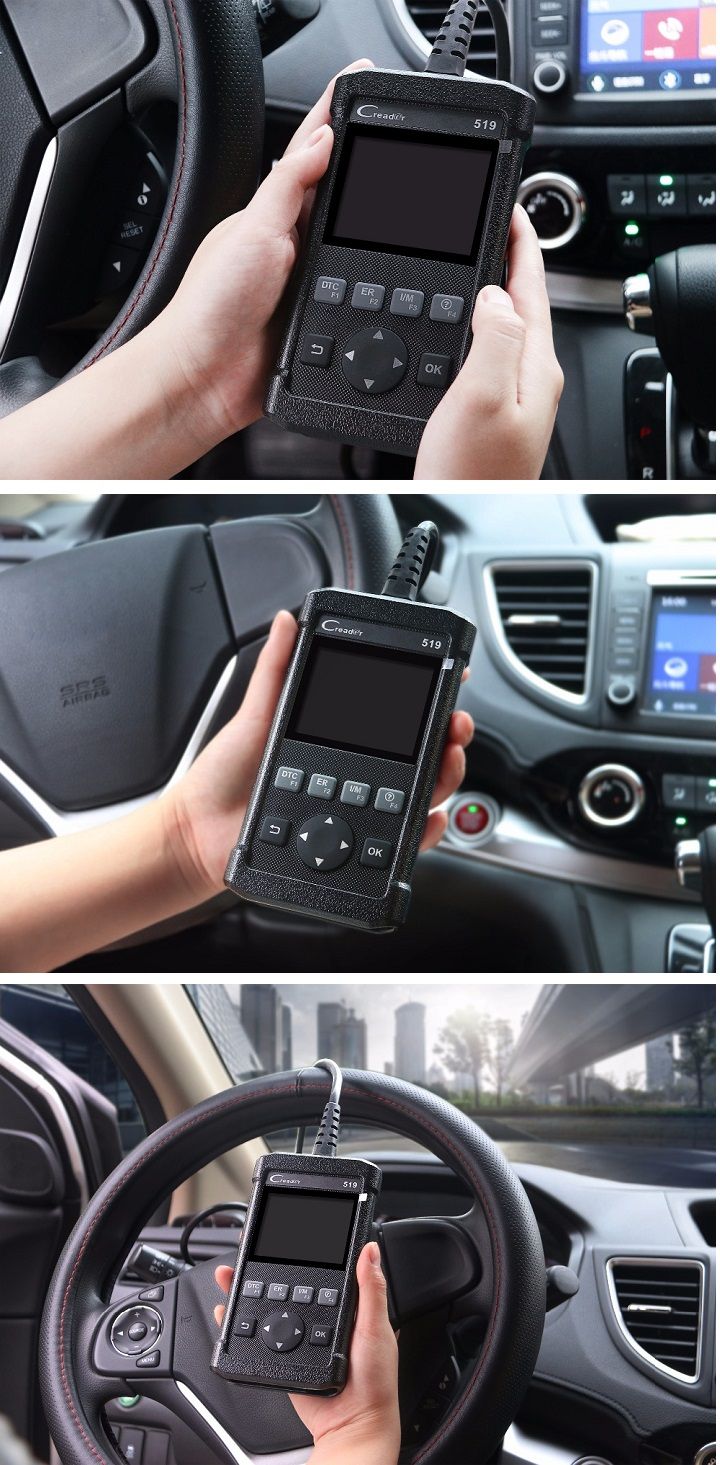

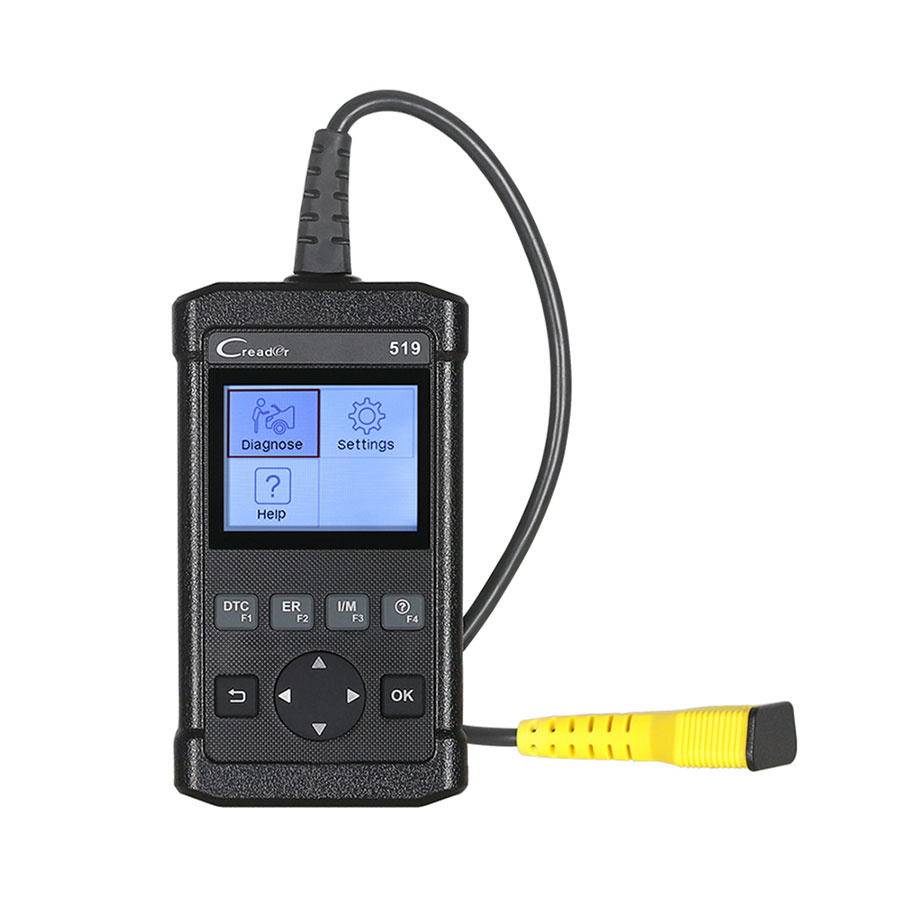

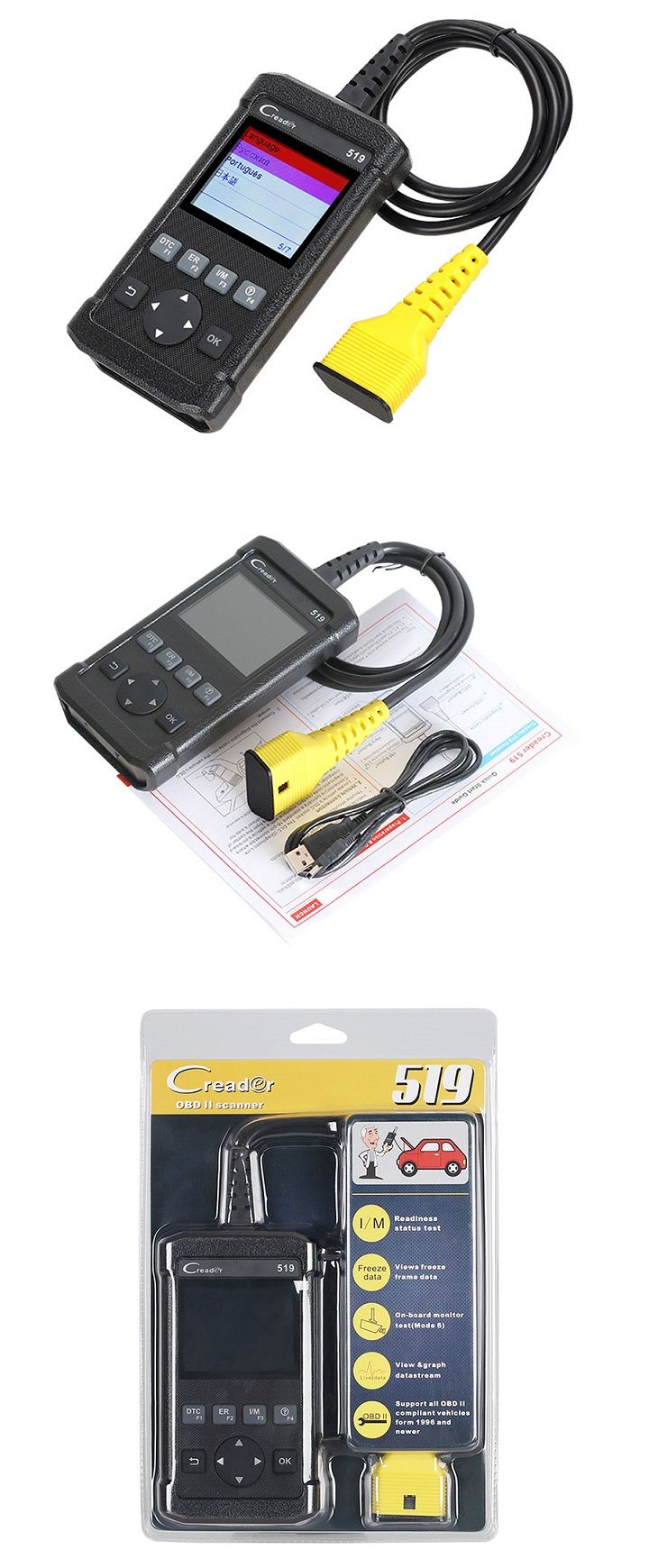

Product Display

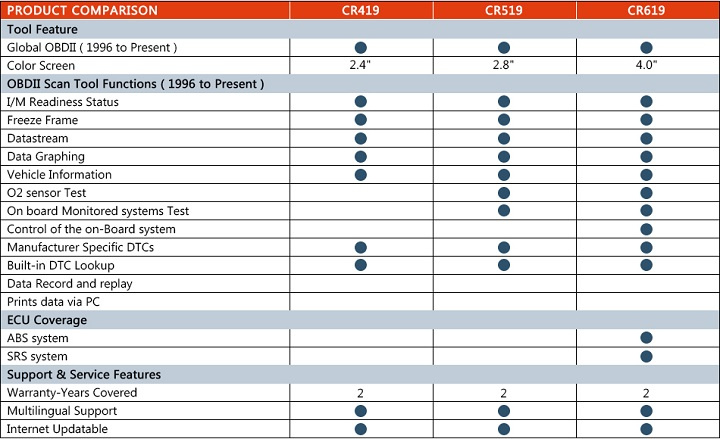

Comparion Table for Launch X431 Creader 419, Creader 519 and Creader 619



FAQ
Q1:Is it orginal Launch X431 product?
A1: Yes, 100% Origional Launch Product.

Q2: How many car brands can it support?
A2: It can support for 72kinds of car brands,such as Asian,European and American ect.

Q3: Which website can I update my machine?


Q4: Why my machine is IP limited?
A4: Since all of launch original machine,we need to send to launch company for activation,pls send your serial number and your country also your selected language to us,we will help you to activate it. it will take about 2 working day for activation.



Our Services
☆ Your inquiry related to our products or prices will be replied in 24 hours.
☆ Well-trained and experienced staffs to answer all you enquiries in fluent English.
☆ OEM&ODM Service offered, any of your customized products we can help you to design and put into production.
☆ Timely delivery.
☆ Lifetime technical support.



Contact Details


Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
