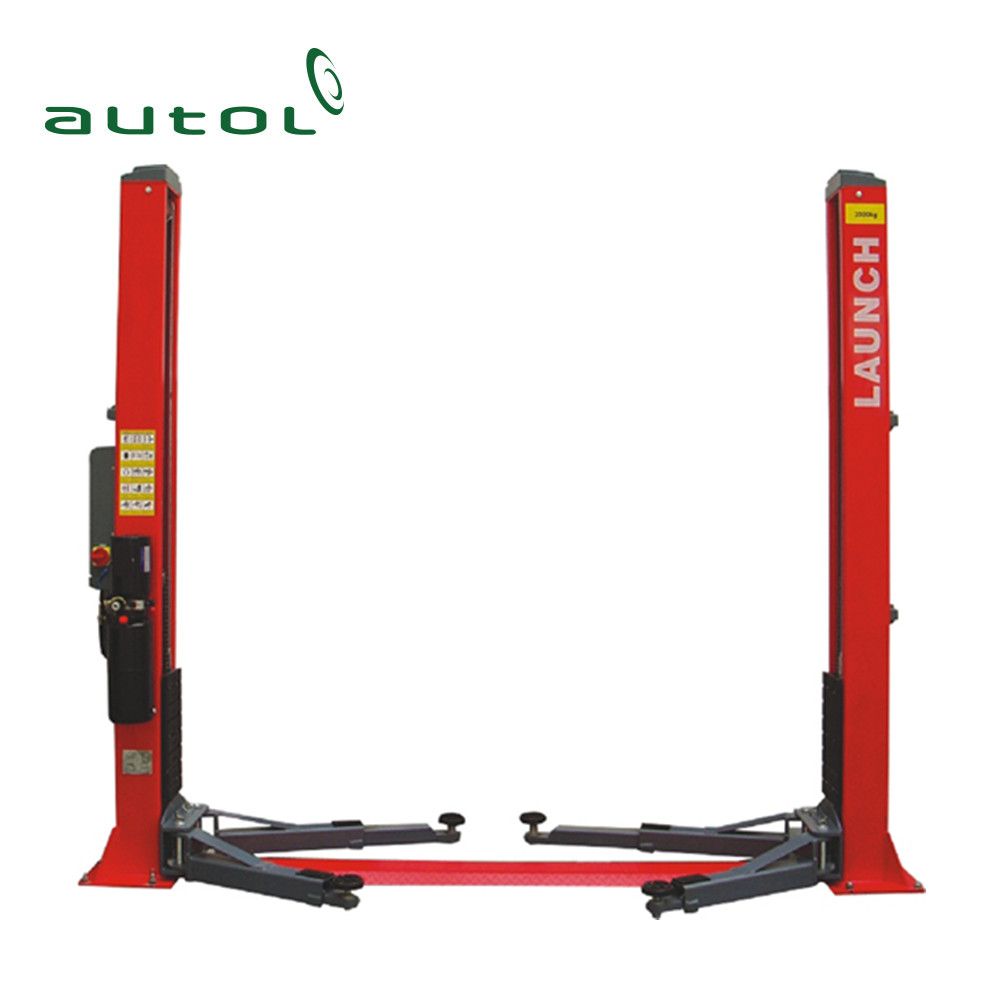

Launch Tlt235sb Economical Floor Plate Two Post Lift Double Cylinder Hydraulic Lift Tlt235sb

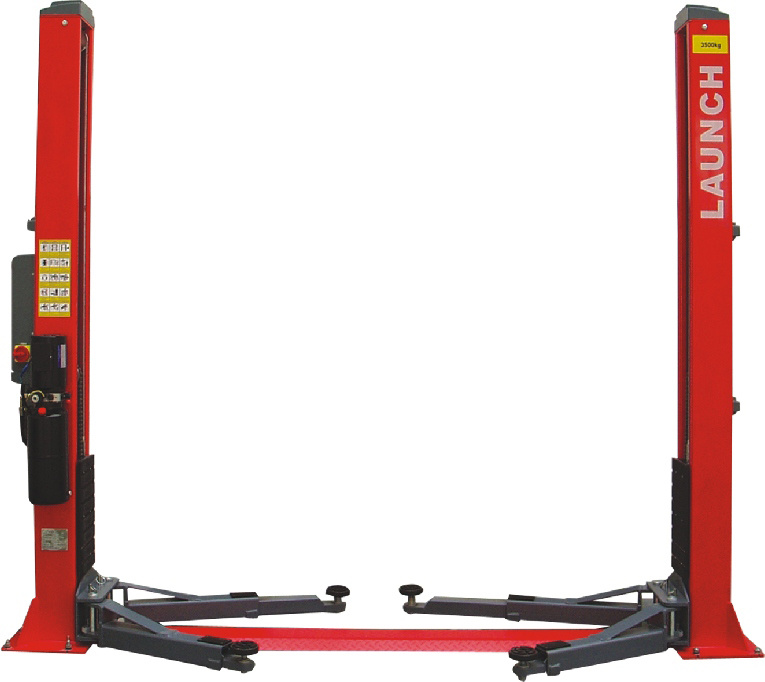

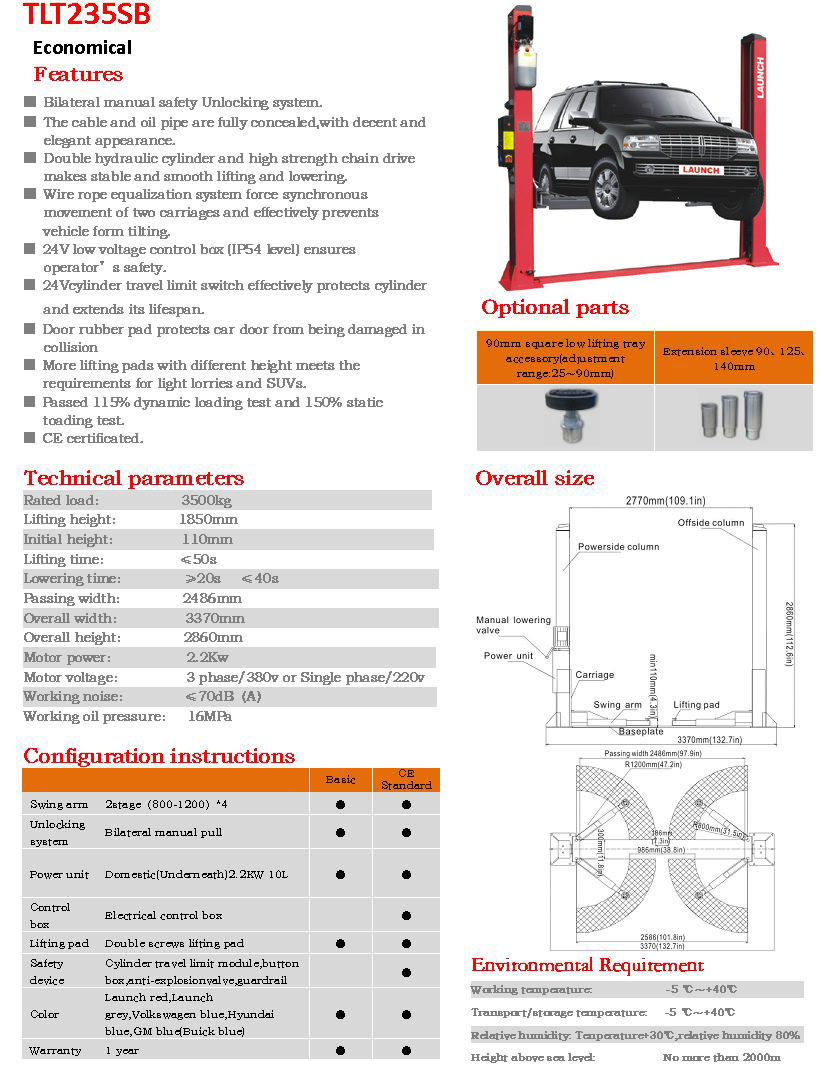

Economical Floor Plate Two Post Lift (Rated Capacity: 3.5Ton)

Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to move synchronously.

Rated load capacity:3500KG
Lifting height:1880mm
Bottom clearance:110mm
Foundation:520 x 380mm
Clear span between:2586mm
Drive-through width:2336mm
Overall width:3270mm
Power supply voltage:380/50 220/50V/HZ

Spare parts

No. PartCode PartName
1 103260126 Steel cable
2 103020117 Anchor bolt M19×140
3 103201071 Cover of hose
4 103990094 Power unit
5 104120076 HP hose
6 103100140 Flow control fitting
7 104120079 HP hose
8 103260123 Main hydraulic cylinder
9 103260129 Auxiliary hydraulic cylinder
10 103220054 Sheave seat
11 103200830 Sheave axle
12 103200939 Steel chain
13 103200938 Chain threaded end
14 201020386 Carriage
15 104990103 Sliding block
16 104130186 Rubber pad on arm
17 201011217 Gear block
18 104130191 Door rubber pad
19 103200979 Rod assembly
20 201020497 Swing arm
21 103110063 Spring
22 103200936 Screw pad assembly
23 104130189 Rubber pad
24 201020500 Cables
25 103110061 Spring
26 201020775 Safety lock assembly
27 103110060 Compression spring
28 201020376 TLT235SB Powerside column
29 201020378 TLT235SB Offside column
30 201013396 Bracket 0f power unit
31 201020391 Floor plate
32 201020390 Floor plate cover
33 201020381 Top plate assembly
34 103201083 Top pulley
