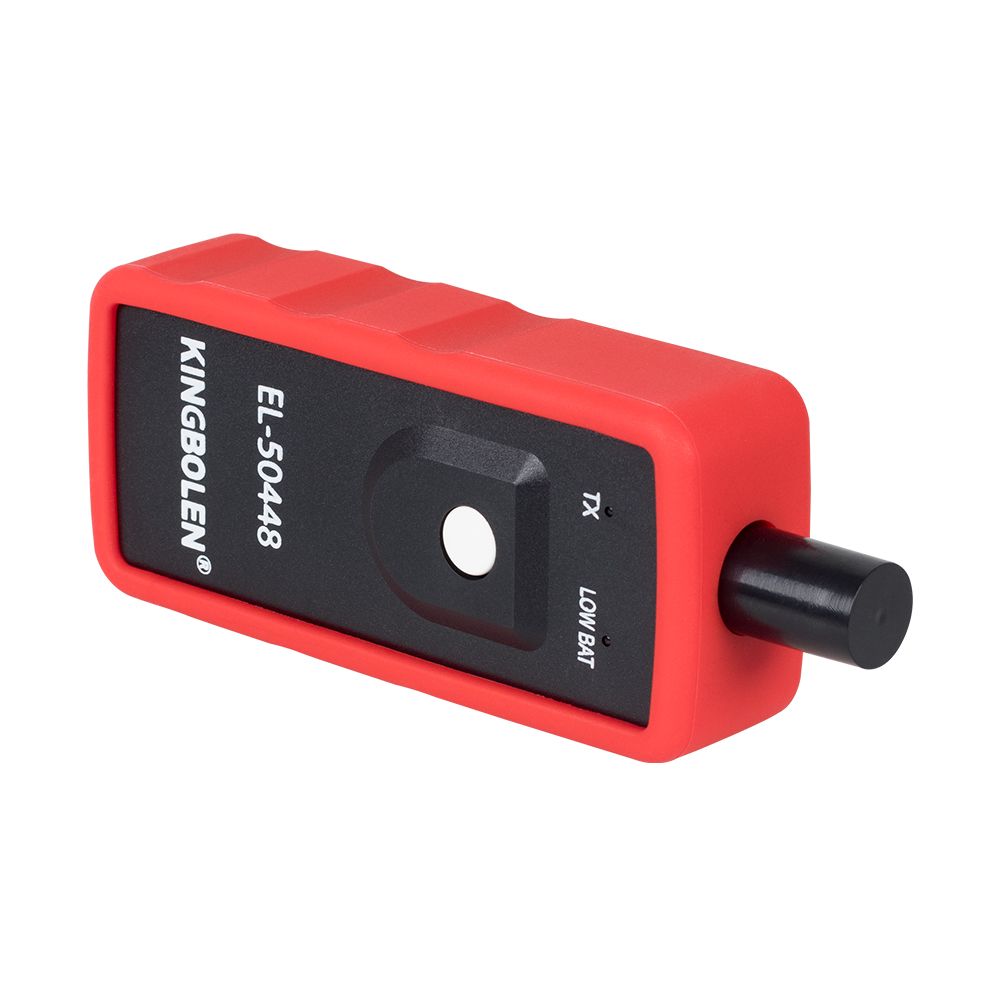

EL-50448 TPMS el 50448 Tire Pressure Monitor Sensor el-50448 OEC-T5 For GM Series Vehicles EL-50449 for Ford
EL-50448 TPMS Tire Pressure Monitor Sensor el-50448 OEC-T5 TMPS Activation Tool for GM Series Vehicles
EL-50448 TPMS el 50448 Tire Pressure Monitor Sensor Description:
For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448. Also works on 2014 GM models
Kindly Note:

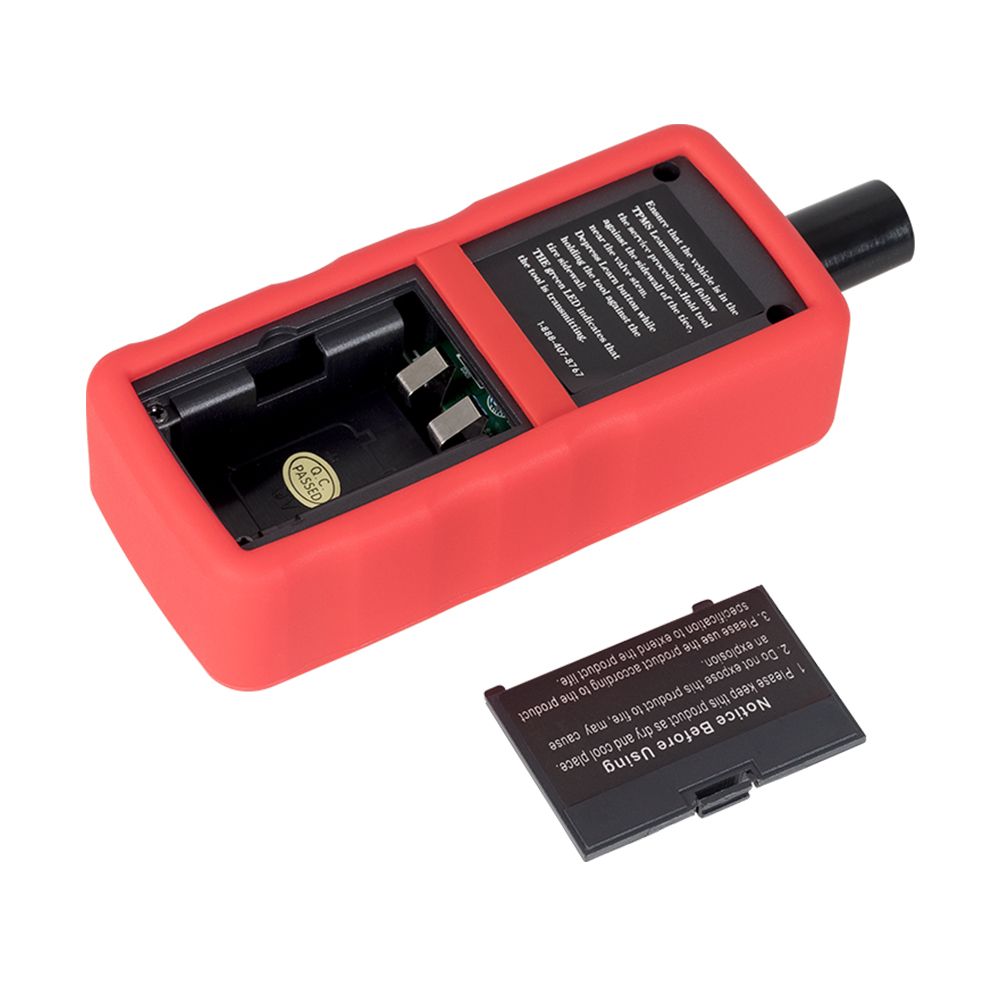

1. Package would not come with battery due to the rules of Russian Air and China Post, battery on the picture just for displaying.
2. Our EL-50448 Produced by high quality environmental plastic material. Better than other one.we offer 2 Years Warranty.
FOR GM TPMS Activation Tool OEC-T5 Intruduction:
The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools.
Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor.
And use the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor. Please refer to the specific methods as follows:
Step 1 - Enter leaning mode
Set the gearshift lever to "P"
Put the ignition switch to "ON"
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press "Set / Ctrl"
The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2 - Read tire pressure sensor information
Start from the front-left wheel,

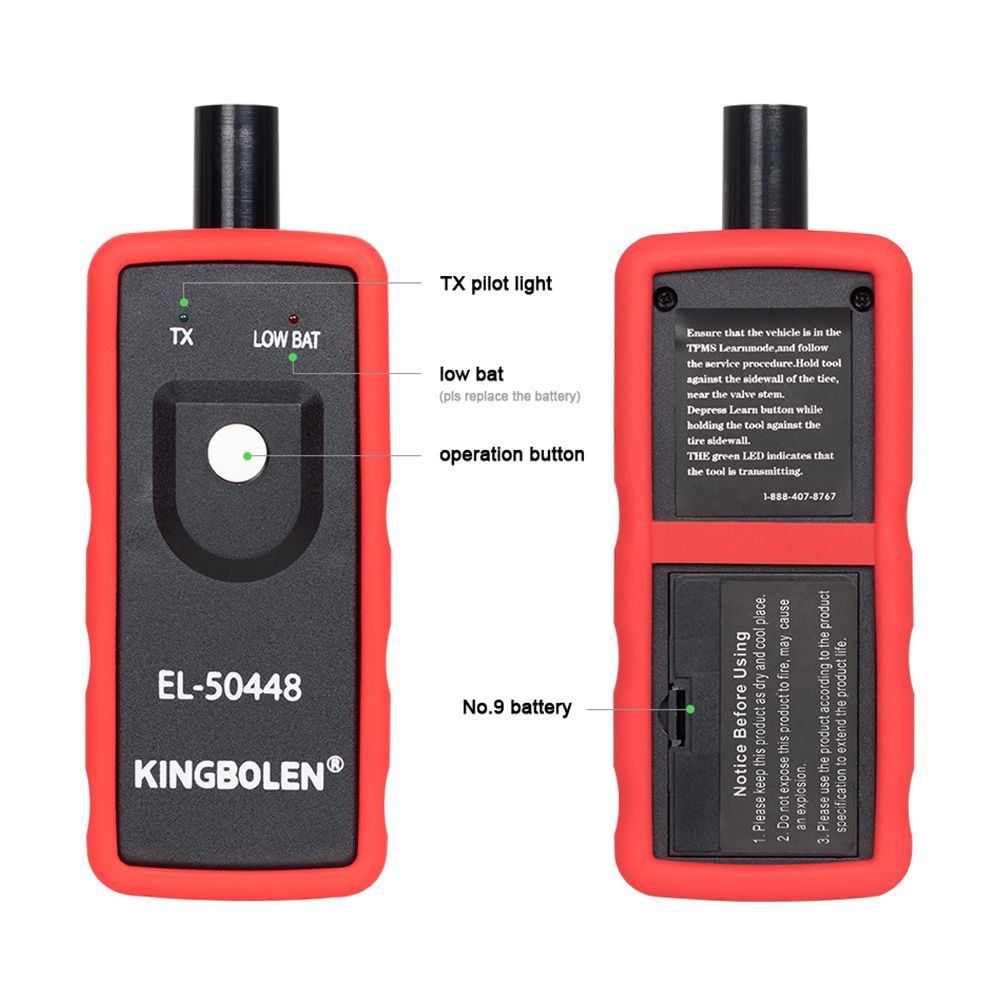

Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
El-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once
Step 3 - Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
EL-50448 TPMS Activation Tool OEC-T5 Supported Vehicle List:
2010 9-5
2010 for Acadia, Enclave, OUTLOOK, Traverse (VIN R/V)
2010 for Allure, LaCrosse (VIN G)
2010 for Antara, Captiva, Terrain, Winstorm
2010 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2010 for Aveo, G3, Barina (VIN S/T)
2010 for Buick Excelle
2010 for Buick Regal (China)
2010 for Camaro (VIN F)
2010 for Canyon, Colorado (VIN S/T)
2010 for Cobalt, G5 (VIN A)
2010 for Corvette (VIN Y)
2010 for Cruze (China)
2010 for Cruze
2010 for CTS (VIN D)
2010 for Daewoo Lacetti
2010 for DTS (VIN K)
2010 for Equinox, Terrain (VIN L)
2010 for Express, Savana (VIN G/H)
2010 for G6 (VIN Z)
2010 for H3/H3T (VIN N)
2010 for HHR (VIN A)
2010 for Impala (VIN W)
2010 for Insignia
2010 for LaCrosse (China)
2010 for Lucerne (VIN H)
2010 for Malibu (VIN Z)
2010 for Opel/Vauxhall Astra
2010 for Sierra, Silverado (VIN C/K)
2010 for SKY, Solstice (VIN M)
2010 for SRX (VIN N)
2010 for STS (VIN D)
2010 for VE/WM - Sedan, Sportwagon, Ute, Lumina, Caprice, HSV
2010 for VUE (VIN Z), Captiva Sport
2011 for Acadia, Enclave, Traverse (VIN R/V)
2011 for Alpheon
2011 for Antara, Captiva
2011 for Astra
2011 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2011 for Aveo, Barina (VIN S/T)
2011 for Buick Excelle
2011 for Buick Regal (China)
2011 for Camaro (VIN F)
2011 for Canyon, Colorado (VIN S/T)
2011 for Caprice PPV
2011 for Captiva Sport
2011 for Corvette (VIN Y)
2011 for Cruze
2011 for CTS (VIN D)
2011 for DTS (VIN K)
2011 for Equinox, Terrain (VIN L)
2011 for Express, Savana (VIN G/H)
2011 for HHR (VIN A)
2011 for Impala (VIN W)
2011 for Insignia
2011 for LaCrosse (China)
2011 for Lucerne (VIN H)
2011 for Malibu (VIN Z)
2011 for Orlando
2011 for Regal (VIN G)
2011 for Sierra, Silverado (VIN C/K)
2011 for SRX (VIN N)
2011 for STS (VIN D)
2011 for VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8
2011 for Volt
2012 for Acadia, Enclave, Traverse (VIN R/V)
2012 for Alpheon (2706)
2012 for Ampera, Volt (VIN R) (Europe)
2012 for Antara, Captiva
2012 for Astra-J (2857)
2012 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2012 for Aveo Classic, Barina Classic (VIN T)
2012 for Aveo, Sonic (2777)
2012 for Barina (2774)
2012 for Buick Excelle (2861)
2012 for Camaro (VIN F)
2012 for Canyon, Colorado (VIN S/T)
2012 for Caprice PPV
2012 for Captiva Sport
2012 for Chevrolet Cobalt (2809)
2012 for Colorado (Other IO), S10 (South America)
2012 for Corvette (VIN Y)
2012 for Cruze (2863)
2012 for CTS (VIN D)
2012 for Equinox, Terrain (VIN L)
2012 for Express, Savana (VIN G/H)
2012 for Impala (VIN W)
2012 for Insignia (2707)
2012 for LaCrosse (China) (2710)
2012 for LaCrosse (VIN G) (2709)
2012 for Malibu (VIN Z)
2012 for Opel Combo-D
2012 for Optra, Viva (VIN J)
2012 for Orlando (2859)
2012 for Regal (China) (2711)
2012 for Regal (VIN G) (2708)
2012 for Sierra, Silverado (VIN C/K)
2012 for Sonic (US/Canada) (2775)
2012 for SRX (VIN N)
2012 for VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, VXR8
2012 for Verano (US/Canada) (2816)
2012 for Volt (VIN R)
2012 for Zafira-C (2860)
2013 for Acadia, Enclave, Traverse (VIN R/V) (3206)
2013 for Alpheon (3094)
2013 for Ampera, Volt (VIN R) (Europe) (3211)
2013 for Antara, Captiva (5376555)
2013 for Astra-J Convertible/Coupe (5376567)
2013 for Astra-J (5376577)
2013 for ATS (VIN A) (3086)
2013 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K) (3088)
2013 for Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico) (5376711)
2013 for Aveo, Sonic (Europe) (5376704)
2013 for Barina (5376837)
2013 for Camaro (VIN F) (3106)
2013 for Caprice PPV (3105)
2013 for Captiva Sport (3101)
2013 for Cobalt (3107)
2013 for Colorado, Colorado 7, S10, Trailblazer (5392270)
2013 for Combo-D
2013 for Corvette (VIN Y) (3104)
2013 for Cruze (Global) (5377099)
2013 for CTS (VIN D) (3085)
2013 for Encore (China) (5377162)
2013 for Encore, Trax (North America) (5377181)
2013 for Equinox, Terrain (VIN L) (3100)
2013 for Excelle (5377155)
2013 for Express, Savana (VIN G/H) (3103)
2013 for Impala (VIN W) (3102)
2013 for Insignia (3098)
2013 for LaCrosse (China) (3095)
2013 for LaCrosse (VIN G) (North America) (3090)
2013 for Malibu (China) (3096)
2013 for Malibu (Europe, Other IO and South America) (2713)
2013 for Malibu (North America) (3093)
2013 for Mokka, Trax, Tracker (Europe) (5377179)
2013 for Onix (3166)
2013 for Orlando (Global) (5377530)
2013 for Regal (China) (3099)
2013 for Regal (VIN G) (North America) (3089)
2013 for Sierra, Silverado (VIN C/K) (3087)
2013 for Sonic (US/Canada) (5377994)
2013 for Spark (US/Canada), Barina Spark (Automatic Transmission) (5421555)
2013 for Spin
2013 for SRX (VIN N) (3201)
2013 for Trax, Tracker (Africa, Australia, Middle East, South America) (5377156)
2013 for VE/WM Ute, Caprice, Lumina
2013 for Verano (US/Canada) (5377996)
2013 for Volt (VIN R) (North America, Holden) (3210)
2013 for XTS (China) (3092)
2013 for XTS (North America) (3091)
2013 for Zafira-Tourer
Packing List:
1 x EL-50448 Tool.EL-50449 Auto Tire Pressure Monitor Sensor EL50449 TPMS Activation Tool For Ford
EL-50449 Instructions:
(1) Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; Training mode for the vehicle to start the state of the three consecutive dangerous alarm flash), if you hear the speaker sounded that the training mode has been enabled;
(2) Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light;
(3) When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear;
(4) When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and the body control module also exits the read mode.
4. Precautions:
(1) The new battery power lead to less than the standard launch power, after use, please charge about 2 hours;
(2) Is the position of the antenna to the tires of the antenna, between the tires and the wheels near the gas core,not wore the gas core.
EL-50449 Appendix (for models):
2007-2014 for Ford F-150
2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty
2007-2015 for Ford Mustang
2007-2014 for Ford Edge
2006-2015 for Ford Escape
2008-2015 for Ford Expedition
2006-2016 for Ford Explorer
2008-2015 for Ford Flex
2008-2015 for Ford Taurus
2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans
2008-2015 for Ford Fiesta
2008-2015 for Ford for Focus
2008-2015 for Ford Fusion
2008-2011 for Ford Crown Victoria
2011-2015 for Ford Transit Connect
2006-2011 for Ford Ranger
2007-2015 for Lincoln MKX
2007-2015 for Lincoln MKT
2008-2015 for Lincoln MKZ
2008-2015 for Lincoln MKS
2008-2015 for Lincoln Navigator
2008-2011 for Lincoln Town Car
2007-2008 for Lincoln Mark LT
2006-2010 for Mercury Mountaineer
2006-2010 for Mercury Monterey
2006-2011 for Mercury Mariner
2006-2011 for Mercuy Grand Marquis
2006-2011 for Mercury Milan
EL-50449 Package list:
1 x EL-50449 device ( Notice:The package does not include the charger and battery)
