Large Tyre Dismounting Machine

Name: Large Tyre Dismounting Machine
Brand: ibuyautoparts.com
SKU: 725128452
Availability: InStock
Rating: 5 (70 reviews)

Price:	US $ 5148/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Item name: large tyre dismounting machine
Item number: L5091

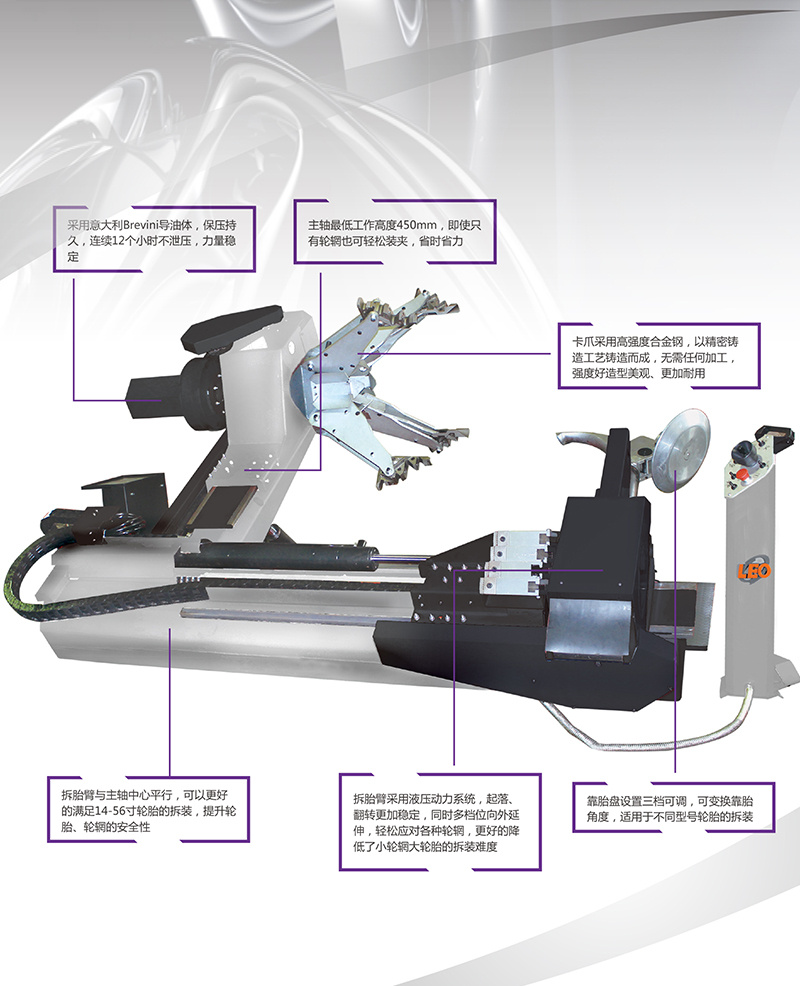

Product description:
1., using Italy design new oil guide Brevivi structure, keep pressure lasting, continuous 12 hours without pressure, strength stability,
2. spindle minimum working height of 450 mm, even if there are rims can work, save time and effort
3. claw with high strength alloy material, precision casting, without any processing, good strength, more durable
4. side tool box, larger space storage tools, patent design
5.41 mm six square shaft is more suitable for hard arm flat and all kinds of explosion-proof tire assembly and disassembly
6. , the disassembly and assembly mechanism ZD03 adopts pneumatic control to lift, improve the operation efficiency, make the work simple, save time and effort

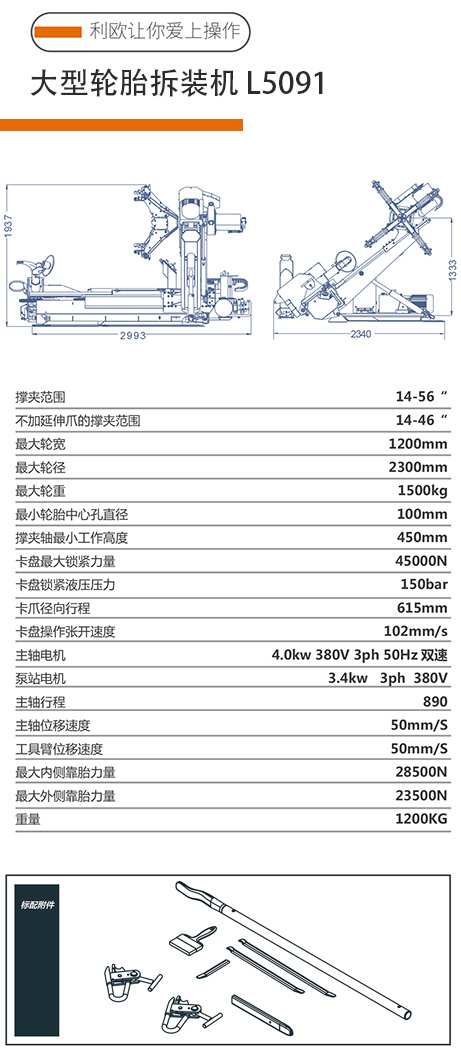

7. main technical parameters
(1) support clamp Rim: 14-56 inches,
(2) without extension of deep claw support clip, wheel rim range: 14-46 inches
(3) maximum tire width: 1200 mm
(4) maximum tire diameter: 2300mm
(5) maximum wheel weight: 1500KG
(6) minimum tire center bore diameter: 100 mm
(7) minimum working height of support clamp shaft: 450 mm
(8) chuck maximum locking force: 45000N.
(9) chuck locking hydraulic pressure: 150BAR
(10) claw radial travel: 615 mm
(11) chuck operating opening speed: 102 mm /S.
(12. spindle motor: 4.0KW/380V-3PH, 50HZ double speed
(13) pumping station press: 3.4KW/380v-50hz;
(14) spindle travel: 890 mm
(15) spindle displacement speed: 50 mm /S.
(16) tool arm displacement speed: 50 mm /S.
(17) maximum medial resting force: 28500N.
(18) maximal lateral resting force: 23500N
(11) net weight / gross weight 1200kg/1350kg
(12) standard accessories: see Icon

Prod Model:	FSD-L5091
Colour:	Red, Yellow, Green, Blue
Certification:	ISO
Condition:	New
