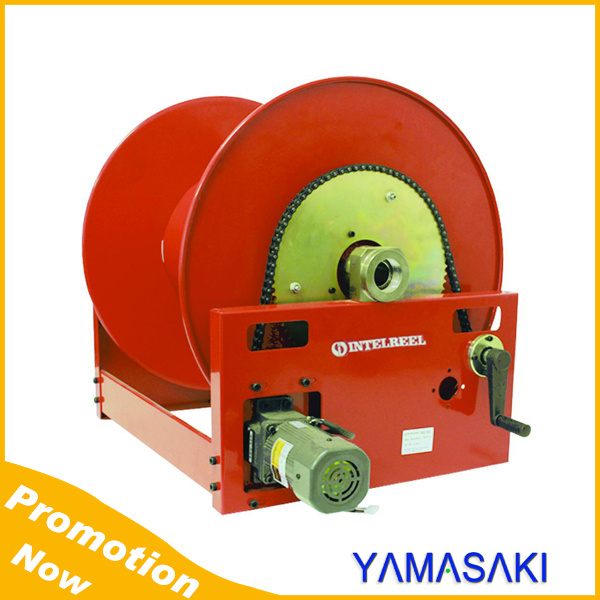

Large Frame Motorizen Driven Water Hose Reel

Name: Large Frame Motorizen Driven Water Hose Reel
Brand: ibuyautoparts.com
SKU: 768808545
Availability: InStock
Rating: 4.9 (42 reviews)

Price:	US $ 255-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Large frame reels
Filling in the areas of materials production line, high flow gas operations equipment, bulk cost oil collection and replacement of vehicles, sewer clean-up equipment, municipal sanitation vehicles, offshore oil drilling platform fire-fighting equipment, the 500 series products have good performance.

Fluid path: 1", 11/4", 11/2"
The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freez Air/Water/Oil	2(300)	25(1)	50(165)	1"	1"	-	500020700
Air/Water/Oil	2(300)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	500020800
Air/Water/Oil	2(300)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	500020900
Air/Water/Oil	8(1160)	25(1)	50(165)	1"	1"	-	500080700
Air/Water/Oil	6(870)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	500060800
Air/Water/Oil	5(730)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	500050900
Air/Water/Oil	2(300)	25(1)	50(165)	1"	1"	-	EM500020700
Air/Water/Oil	2(300)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	EM500020800
Air/Water/Oil	2(300)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	EM500020900
Air/Water/Oil	8(1160)	25(1)	50(165)	1"	1"	-	EM500080700
Air/Water/Oil	6(870)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	EM500060800
Air/Water/Oil	5(730)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	EM500050900

Prod Model:	Series 500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
