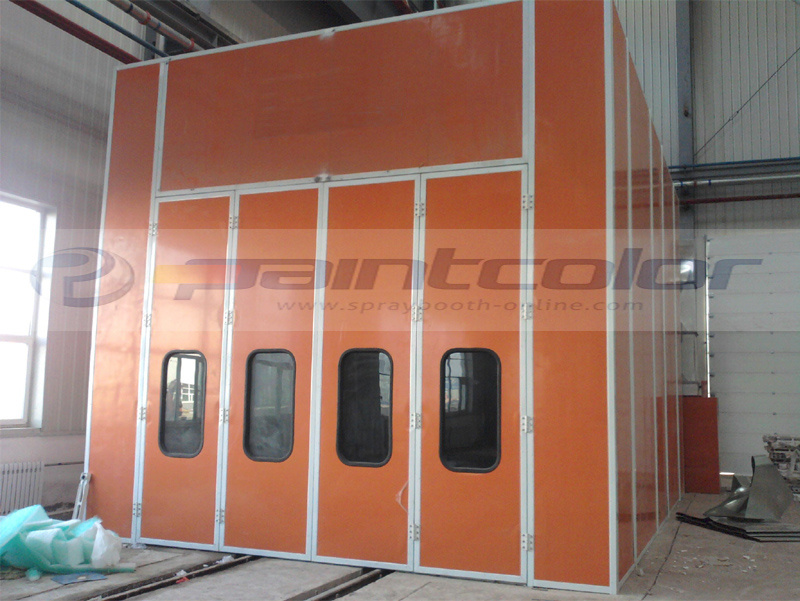

Large Auto Machine Coating Booth 25m X 5m X 5m
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
PC-LSB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White or Blue |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Large Spray Booth |
Product Description

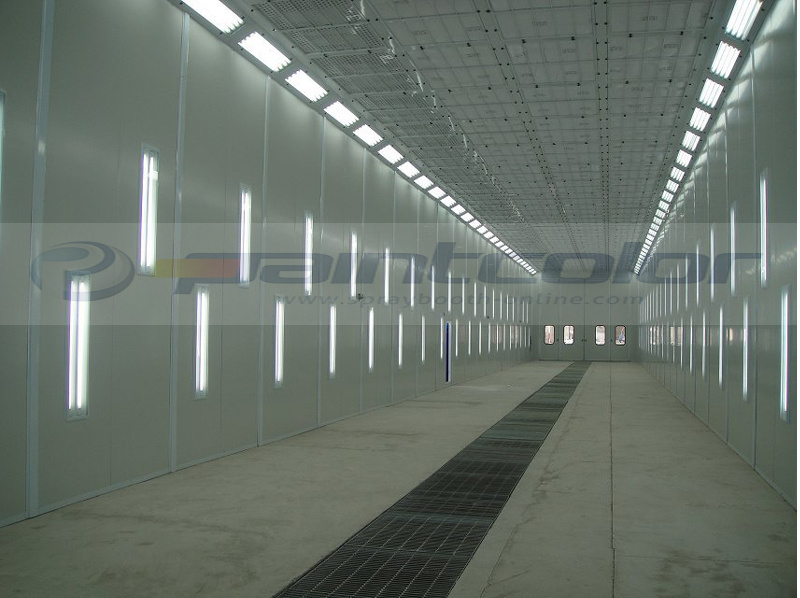

Paintcolor Spray Booth Bus and Large Painting Booth
Inner size: 25m X 5m X 5mAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.
Specification| technical parameter | External Dimensions(L×W×H) | 30150×8400×7300 | structure parameter | wallboard thickness(mm) | side wallboard 75mm, ceiling wallboard 50mm |
| Internal Dimensions(L×W×H) | 25000×5000×5000 | wallboard steel plate thickness(mm) | 0.5 |
| entrance door width(mm) | 4600 | core material | EPS |
| entrance door height(mm) | 5500 | grid | 30*4flatiron |
| load inside wind speed(m/s) | ≥0.25 | body framework | square steel tube+angle iron |
| noisy(dB) | ≤85 | support mesh material | square steel tube |
| total power(kw) | 122 | cabinet material | square steel tube+galvanized sheet |
| the highest temperature(ºC) | 80 | illumination parameter | top illumination | 36W×240 |
| dust content | 1.4mg/m3 | tube brand | Philips |
| burner parameter | gas burner style no. | Italy Baite | illumination(Lux) | ≥700 |
| the biggest heat(kcal/h) | 260000 | lamphouse glass | toughened glass |
| gas consumption(m3/h) | 13-25 | exhaust parameter | exhaust pipe dimension(mm) | 800×800 |
| heat exchanger material | stainless steel | exhaust pipe material(mm) | galvanized sheet |
| set | 5 | exhaust pipe height | straight pipe(20m)+5 elbows |
| inhaling ventilator patameter | inhaling ventilator style | YDW-5.6S | device parameter | device | imported electric parts |
| blower capacity(m3/h) | 15000 |
| power(KW) | 5.5 | color | selected: white/orange/ blue |
| set | 10 | paint processing mode | dry processing mode: glass fiber cotton filtering and active carbon |
| exhaust ventilator patameter | exhaust style | 4-82-6.3E |
| blower capacity(m3/h) | 30408 | voltage | 380V/3PH/50Hz |
| power(KW) | 11 |
| set | 5 |
