L Diesel Spray Room/Paint Box/Baking Oven

L Diesel Spray Room/Paint Box/Baking Oven
Price: US $ 4000-9800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: AUZ-Y 1001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Dimension: 7000 * 5400 * 3250mm
Inside Dimension: 6900 * 3900 * 2600mm
Front Door(mm): 2800*2500(W*H)
Service Door (mm): 1800*650(W*H)
Total Power: 15kw
Wall Panel: 50mm Rock-Wool Panel, 0.5 Steel
Basement: 300mm Depth with Grids
Lighting: Ceiling:8units*4; Side:8units*4
Heating Burner: Riello G20 Diesel Oil/Gas Burner
Color: Optional
Certification: ISO
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Brand: Captain

Product Description

Products Description

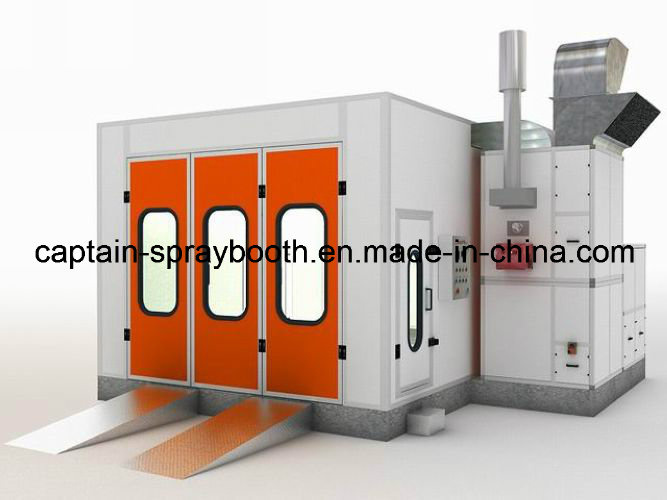

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.

Equipment Constituents

The equipment of this paint spraying/baking booth is composed of booth structure system, illumination System, air supply system, circulation system, air purification system, paint mist treatment system, pressure control devices, and electrical control system, etc.


Spraying Booth Benefits
1. The device through the action of the wind, water, gas mixture enhanced through the diversion gate, retaining plate, collecting tank, etc., to achieve water and gas separation, thereby overcoming the paint Fog clogging pumps and water systems, causing water system is not working properly shortcomings. As a result of the system without pump water saving devices, saving investment and reducing the footprint.
2. The device is in use, the mist through the water curtain, curtain and roll mixing water and gas passage, multiple classification purification efficiency improves the purification process.
3. Due to the mist and water collecting channel disposed between the diversion gate, both in the collection tank with pressure chamber between the retaining plate also has a diversion gate, to prevent the passage of water vapor mist directly from the collection tank and equalizing chamber is discharged, the purification efficiency improves.
4. Due to the water vapor mixing chamber provided with at least a pan of water board, so that water vapor mist air mixing chamber contains sufficient soluble in water, improve the purification efficiency.
5. Because of the water by adding a mist cleaning agents, paint mist undermine adhesion, cohesion so loose paint mist settling on the bottom for easy cleaning.
6. As in the collection tank with access doors for easy maintenance workers.


Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
Outside Dimension (mm)7000 * 5400 * 3250(L*W*H)Inside Dimension(mm)6900 * 3900 * 2600(L*W*H)
Front Door(mm)2800*2500(W*H)Service door (mm)1800*650(W*H)
Total Power15KW
Cabin systemWall panel  50mm rock-wool panel, double face steel sheet thickness: 0.5mm
 Ceiling panel Galvanized steel sheet.
 Basement300mm depth, patented circumferential diamond plate design, middle with grids.
 RampTwo 2000*900mm ramps
 Glass6mm safety tempered glass
 WindowsSquare glass Windows
Air Make-up SystemAir Inlet fan system2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h.
 Exhausted fan system1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h.
 Air Flowing speed0.45 m/s in empty booth, 0.35 m/s when painting.
 Exhausted ducting4 meters air duct, one anti-bird mesh
Purification SystemPre-filterG3 grade, Air Inlet filter
 Ceiling filterEU5 / F5
 Floor filterGreen fiber glass filter / G3 grade
 Exhausted fan FiltersFiber glass filter.
Heating SystemHeat ExchangerSUS304 material, argon arc welding.
 Heating burner:       Riello G20 diesel oil burner(gas burner for option)
 Heating productivity                            200000Kcal/h
 Chimney ducting3 meters stainless ducting and one chimney elbow
 Max heating temperature
Heating time
80 degree centigrade
4-6min(20-60 degree centigrade)
 fuel consumption5-6L /vehicle
Lighting SystemCeiling lights8 Units, each 4 x 36W Philips lamps, Total 1152 W
 Side lights8 Units, each 4 x 20W Philips lamps, Total 800 W
 Illumination 1200LUX
Controlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.

· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.

Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
