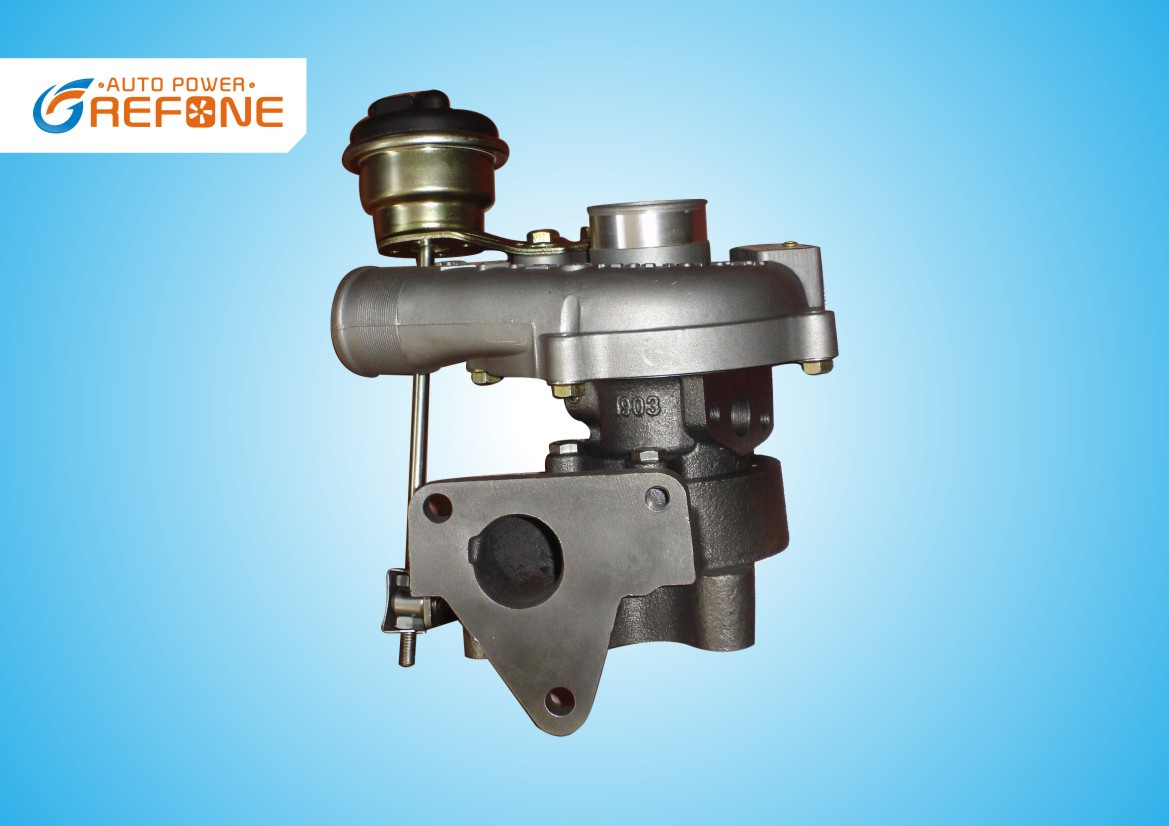

Δ KP35 5435970000 turbocharger specs
Part Number | 54359880000 |
Previous Version | 54359880002 |
OE Number | 14411BN700, 14411-BN700, 14411-00QAG, 1441100QAG, 8200022735, 8200351439, 8200409030, 8200119854 |
Description | RENAULT Clio II,Kangoo, Megane II, NISSAN Almera, Micra |
Manufacturer Part Number | 54359700002, 54359700000, 54359710002 |
CHRA | 54357100500 |
Turbo Model | KP35-1672CAA240.82ACAXD |
Engine | K9K-702, K9K-702 |
Displacement | 1.5L |
KW | 60 |
RPM Max | 4000 |
Fuel | Diesel |
Angle α (compressor housing) | 271 |
Angle β (turbine housing) | 292 |
Bearing Housing | 54391510010 |
Turbine Wheel | 54351208500/54351205006 |
Comp. Wheel | 54391232001 |
Back plate | 54391503000 |
Heat shield Number | 54351652000 |
Repair Kit | Major Kit, Service |
Turbine Housing | 54351009025 |
Compressor Cover | 54391015028 |
Turbine Housing AR | VTG |
Actuator | 58201104135 |
Gasket (turbine inlet) | 210598 |
Gasket (turbine outlet) | 210599 |
Gasket (oil outlet) | 210553 |
Δ Application
Nissan Micra, Kubistar with K9K-702, K9K-702 Engine
2000- Dacia Logan, Kangoo I 1.5L dCi with K9K-702, K9K-702 Engine
2000-05 Renault Clio II 1.5L dCi with K9K-702, K9K-702 Engine
2003- Renault Kangoo I 1.5L dCi with K9K-702, K9K-702 Engine
Δ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Δ KP35 turbocharger models
P/N | OEM No. | Application |
54359880000 54359880002 | 14411-BN700 14411-00QAG 8200022735 8200351439 8200409030 8200119854 | Nissan Micra, Kubistar Dacia Logan, Kangoo I 1.5L dCi 00-05 Renault Clio II 1.5L dCi 03-Renault Kangoo I 1.5L dCi
03- Renault Kangoo I 1.5L dCi |
54359880018 54359700018 | 55202637 93191833 | 2005-07 Fiat 1,25 2005- Fiat Qubo 1.3 JTD 2005-09 Fiat Punto III 1.3 JTD 2005- Fiat Grande Punto 1.3 JTD 2005- Fiat Panda 1.3 JTD 2005- Fiat Cinquecento SJTD 2007- Fiat 500 1.3 D Multijet |
54359880005 54359700005 | 73501343 71784113 5860030 93191993 | 2003- Fiat Doblo 1.3 JTD 2003- Fiat Idea 1.3 JTD 2003- Fiat Punto II 1.3 JTD 2003- Fiat Qubo 1.3 JTD 2003- Lancia Musa 1.3 16V 2003- Lancia Ypsilon 1.3 2005- Opel Corsa D 1.3 CDTI Engine:SJTD, 16V Multijet, Z13DTJ |
54359880009 54359700009 54359880001 54359880007 | 9648759980 0375G9 9643574980 9643675880 9643675880 2S6Q6K682AA 2S6Q6K682AB 1219456 1488986 2S6Q6K682AD 1348618 2S6Q6K682AC 0375K0 | 2001-11 Citroen C3 2001-05 Ford Fiesta 1.4 TDCi 2009- Mazda 2 2002-11 Peugeot 206 1.4 HDi
Engine: DV4TD |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
