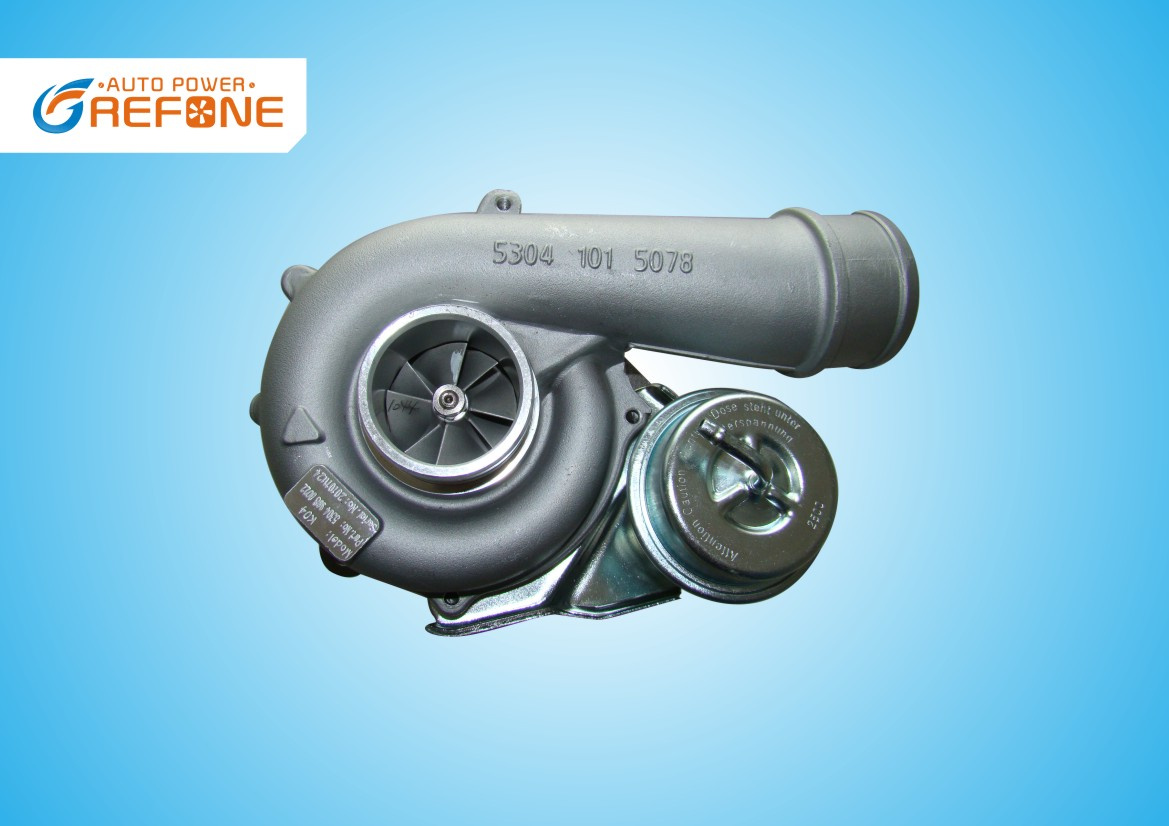

Δ K04 53049880022 turbocharger specs
Part Number | 53049880022 |
Previous Version | 5304-988-0022, 5304 988 0022 |
OE number | 06A145704P |
Year | 1999-12 |
Description | Cars TT / S3 |
Manufacturer Part Number | 53049700022, 5304-970-0022, 5304 970 0022 |
CHRA | 53047100507 (5304-710-0507) |
Turbo Model | K04-2275ECD5.82KCAXH |
Displacement | 1.8L V5 quer / transverse |
Engine | AMK, AMK APX |
KW | 155 |
RPM Max | 5900 |
Fuel | Gasoline |
Angle α (compressor housing) | 305 |
Angle β (turbine housing) | 190 |
Bearing housing (water-cooled) | 53041500015 |
Turbine Wheel | 53041205015 |
Comp. Wheel(milled titanium) | 53041232015/53041232013/53041232203 |
Back plate | 53041515708 |
Heat Shield | 53041652000 |
Repair Kit | 53037110000 |
Turbine Housing | 53041008003 |
Compressor Cover | 53041015030 |
Turbine Housing AR | 5 |
Actuator | 58251104082 |
Settings Waste gate (pressure) | 0.50 bar |
Settings Waste gate (lift shaft) | 5.50 mm |
Gasket (turbine inlet) | 210646 |
Gasket (turbine outlet) | 210676 |
Gasket (oil outlet) | 210317 |
Δ Application
1999-12 Audi S3, TT with AMK Engine
Δ What we do
Refone Auto Power Co., ltd is professional manufacturer and exporter of auto spare parts turbochargers, turbo parts&accessories and other engine pars.
Our team are excellent technical engineers and experienced sales. We work as designers, researchers, quality controllers and sales service
We are looking forward to build long business relationship with international friends.
Δ Why choose us
1.We have been in turbochager business for many years to meet the customer various reuqest of turbocharger and parts ,with the most competitive price & quality.
2.All turbocharger and cartridges balance tested by the "TURBO TECHNICS" imported from the UK.
3.Developing new turbo or parts according to customer's samples
4.Sample order accepted and we have warranty for official orders.
Δ K04 turbocharger models
P/N | OEM No. | Application |
53049880022 53049880020 | 06A145704P | Audi S3, T |
53049880001 53049700001 | 914F6K682AF 914F6K682AG 914F6K682AC 914F6K682AB 1057139 1113104 1057139 914F6K682AG 914F6K682AB 6611235 | 1991-09 Ford Transit IV 2.5 TD Engine: FT 190 4EB/4EA/4EC |
53049880015 53049700015 | 53049880015 53049700015 | 1996- Audi A4 Upgraded 1.8L -5V longs/along |
53049880023 53049700023 | 06A145704Q 06A145704QX 06A145704QV | 2000-09 Audi S3, TT 2000- Audi S3 1.8 T 2000- Audi TT 1.8 T (8N) 2003-05 Seat Leon 1.8 T Engine:BAM, BAM BFV |
53049880025 53049700025 | 078145701M 078145703M 078145703MX 078145703MV | 2000-2005 Audi RS4 V6 2000-2005 Audi A3 Engine : ASJ/AZR |
53049880026 53049700026 | 078145704M 078145702M 078145704M 078145704MX 078145704MV | 2000-2005 Audi RS4 V6 2000-2005 Audi A4 V6 Engine: AZR/ASJ |
53049880032 53049700032 | 03L253019H, 070145701E, 070145701EX, 070145701EV | 2002-12 Volkswagen Commercial Transporter(T5) Engine : AXD |
53049880028 53049700028 | 077145703P, 077145703PX, 077145703PV | 2002-2004 Audi RS 6 (C5) Engine BCY Biturbo |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
