Prod Model: |
K03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
K18 Shaft and Wheel |
Bearing Housing: |
Oil Cooled |
Chra: |
53037100533 |
Fuel: |
Diesel |
Gross Weight: |
10 Kg |
Packing Size: |
20*20*20cm |
Engine Model: |
Ep6cdt |
Delivery Method: |
DHL, FedEx, TNT, UPS, EMS, by Air, by Sea |
Certification: |
SGS |
Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
Body Material: |
Iron |
Brand: |
Refone |

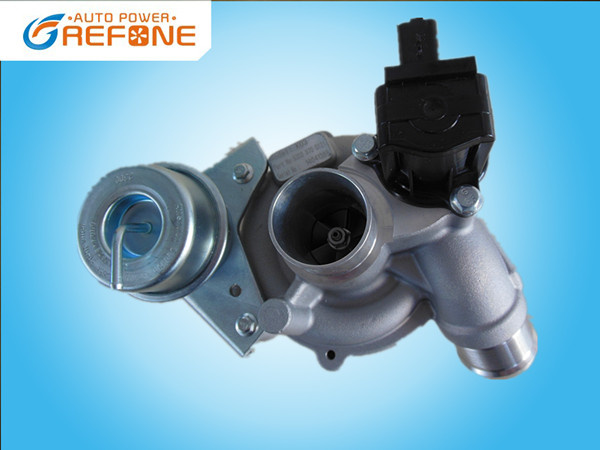

Product Description
Δ Product Specs
Part Number | 53039880121 |
Previous Version | 53039880104, 53039880120, 5303-988-0104, 5303-988-0120 |
OE Number | V75807898001, 0375L0, V75466758005, V75649448002, A7F003L01A, 0375N7, A7F003L01A |
Year | 5-07 |
Manufacturer Part Number | 5303-970-0121, 5303-970-0120, 5303-970-0104, 53039700121, 53039700120, 53039700104 |
CHRA | 53037100533 (5303-710-0533) |
Turbo Model | K03 |
Engine | EP6DT, EP6DT 5FX |
Displacement | 1.6L, 1598 ccm |
KW | 115/110 |
RPM Max | 5500 |
Fuel | Gasoline |
Engine speed | 5500 |
Angle α (compressor housing) | 345 |
Angle β (turbine housing) | 57 |
Bearing Housing | 53031500022 |
Turbine Wheel | 53031208501 |
Comp. Wheel | 53041232032 |
Back plate | 53041515716 |
Turbine Housing | 53031009149 |
Compressor Cover | 53041014910 |
Actuator | 58251105097 |
Turbine Housing AR | VTG |
NOTE | Intercooler; watercooled bearing housing |
Δ Applications
2010- Peugeot RCZ 1.6 THP 16v 156
2009- Peugeot 5008 1.6 THP 155
2007- Peugeot 308 1.6 THP 150
2009- Peugeot 3008 1.6 THP 155
2009- Peugeot 3008 1.6 THP 150
2005- Peugeot 207 1.6 THP 150
2009- Citroen DS 3 1.6 THP 150
2009- Citroen C 4 THP Engine
2005- Citroen DS 3 1.6 THP 150
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
Δ REFONE electronic turbocharger models
Model | Part number | OEM number | Application |
CT16V | 17201-0L040 | 17201-30160 17201-30100 17201-30101 | Toyota Hilux 3.0L Engine : 1KD-FTV |
K03 | 53039880169 53039700169 | | |
K03 | 53039880106 53039700106 | 06D145701D, 06D145701H, 06D145701G, 06D145701E, 06D145701J | Audi A4 Audi A6 Audi S4 Audi S6 |
K03 | 53039880169 53039700169 | 03L253010, 03L131111Q, 03L131111E | Volkswagen (VW) Golf Volkswagen (VW) Jetta Engine: CR-US07 (TR4) |
| 17201-30150 | | |
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.
The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
