| Prod Model: |
K03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
K18 Shaft and Wheel &Aluminium Alloy |
| Bearing Housing: |
Water Cooled |
| Fuel: |
Diesel |
| Gross Weight: |
10kg |
| Packing Size: |
20*20*20cm |
| Engine Model: |
2.0 Tfsi Along |
| Enterprise Type: |
Manufacturer |
| Certification: |
SGS |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Brand: |
Refone |
Product Description

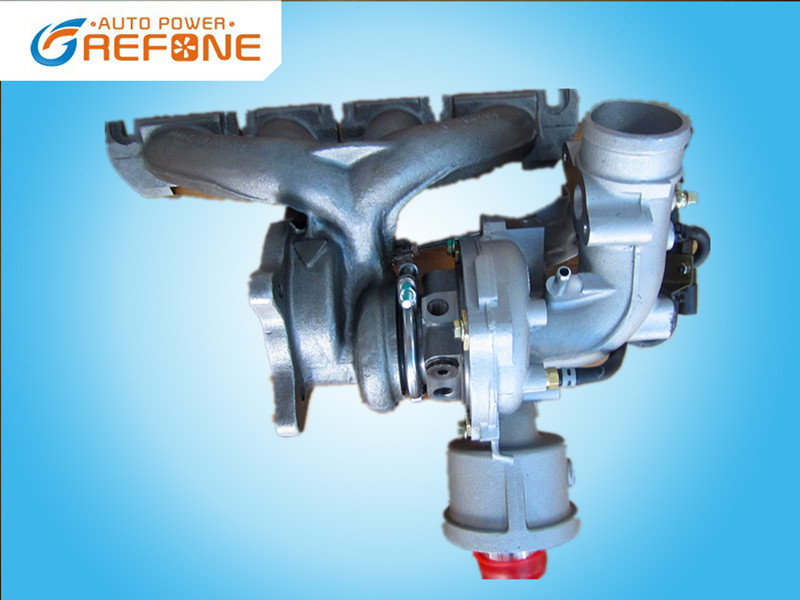

Δ 53039880106 Turbocharger Specs
| Part Number |
53039880106
|
| OE number |
06D145701D, 06D145701H, 06D145701G, 06D145701E, 06D145701J
|
| Year |
2005-2011
|
| Manufacturer Part Number |
53039700106
|
| CHRA |
53037100526
|
| Turbo Model |
K03
|
| Displacement |
2.0L, 1984 ccm
|
| KW |
147/200
|
| RPM Max |
6000
|
| Fuel |
Gasoline
|
| Engine |
2.0 TFSI along
|
| Bearing Housing (water-cooled) |
53031500003
|
| Turbine Wheel |
53031205036
|
| Comp. Wheel |
53041232036
|
| Compressor back plate (O-ring type) |
53041515716
|
| Heat shield Number |
53031652009/53031652022/53031652021
|
| Repair Kit |
53037110000
|
| Turbine housing with manifold |
53031009531
|
| Compressor Cover |
530410095032
|
| Turbine Housing AR |
5.0
|
| Actuator |
58251104169
|
| Frequency valve (electronic) |
59001170401
|
| Compressor recirculation valve (electrical) |
59001107018/59001107074/59001107044
|
Applications
05-08 Audi A4
05-08 Audi A4 Avant
07-09 Audi A4 Cabriolet
07-09 Audi A4 Quattro
05-08 Audi A4 Quattro Avant
2009-2011 Audi A6, Avant, Quattro
2009 Audi S4
07-08 Audi S4 4.2L
05-08 Audi S4 Avant 4.2L
2009 Audi S4 Cabriolet
07-08 Audi S4 Cabriolet 4.2L
2009-2011 Audi S6
Δ Why choose us
1) The products have passed the balancing test and the high speed GHRA balancing test
2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.
3) The clients can have their own forwarders to ship the products to the destination
4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable
5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive
Δ Our service
1. Quality Warranty: 12 months for official orders
2. Developing all turbo or turbo parts according to customer's samples
3. Quick delievery and reliable aftersale support
Δ REFONE electronic turbochargers
| Model |
Part number
| OEM number | Application |
| CT16V |
17201-0L040
|
17201-30160
17201-30100
17201-30101
| Toyota Hilux SW4
Toyota Landcruiser
Engine : 1KD-FTV |
| K03 |
53039880121
53039880104
53039880120
|
V75807898001
0375L0
V75466758005
V75649448002
A7F003L01A
0375N7
| Peugeot RCZ 1.6
Peugeot 5008 1.6
Peugeot 308 1.6
Peugeot 3008 1.6
Peugeot 207 1.6
Citroen DS 3 1.6
Citroen C 4 |
| GT1749V |
756047-5005S
753556-0002
753556-0006
756047-0002
756047-0004
756047-0005
756047-5002S
756047-5004S
| 9662301280
9682778680
0375K1
9654919580
9663201280
9658673480
0375K9 | Citroen C 4 2.0L HDi
Citroen C 5 II 2.0L HDi
Peugeot 307 2.0L HDi
Peugeot 308 2.0L HDi
Peugeot 407 2.0L HDi
Peugeot 607 2.0L HDi
Engine: DW10BTED4S |
| CT |
17201-30180
17201-30150
|
1720130180
1720130150
| TOYOTA HiLux, VIGO, LandCruiser
Engine: D-4D |
| BV43 | 53039880169
53039700169 |
03L253010
03L131111Q
03L 131 111 E
| Volkswagen (VW) Golf
Volkswagen (VW) GTI
Volkswagen (VW) Jetta |
