Jzj-9500 Water-Based Paint Spray Booth for Sales

Name: Jzj-9500 Water-Based Paint Spray Booth for Sales
Brand: ibuyautoparts.com
SKU: 774445465
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 10000/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-9500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	for Customers Choice
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Jzj

Product Description

Outside Dimension (mm)	700655463450(LWH)	Inside Dimension(mm)	690040002650(LWH)

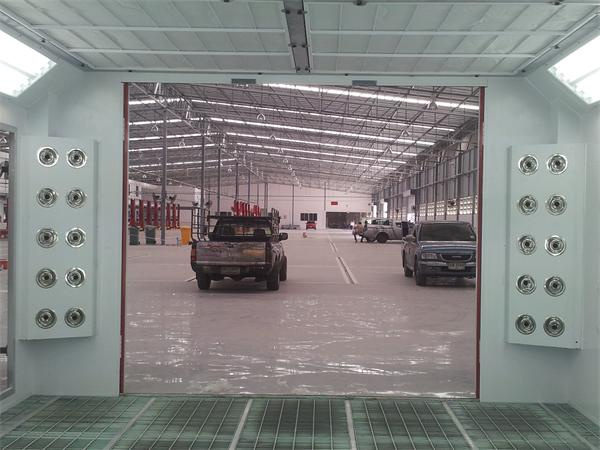

Front Door(mm)	30002600(WH)	Service door (mm)	1800650(WH)
Total Power	20KW
Cabin system	Wall panel	50mm EPS sandwich panel, steel sheet thickness: 0.426mm
	Ceiling panel	50mm rock-wool panel.
	Basement	300mm depth, full galvanized grids basement
	Ramps	Three pieces 2000*900mm ramps
	Glass	4mm safety tempered glass
	Windows	Square glass windows
Air Make-up System	Air Inlet fan system	1*7.5kw turbo fan, proof-explosion motor, Ex rated
	Exhausted fan system	1*7.5KW turbo fan, proof-explosion motor, Ex rated
	Ai capacity for fresh air	25000m³/h
	Air Flowing speed	0.3m/s in empty booth
	Air ducting	8meters straight ducting, one flop damper and one weather hood.
Water- based system	Ceiling nozzles	36pcs stainless nozzles

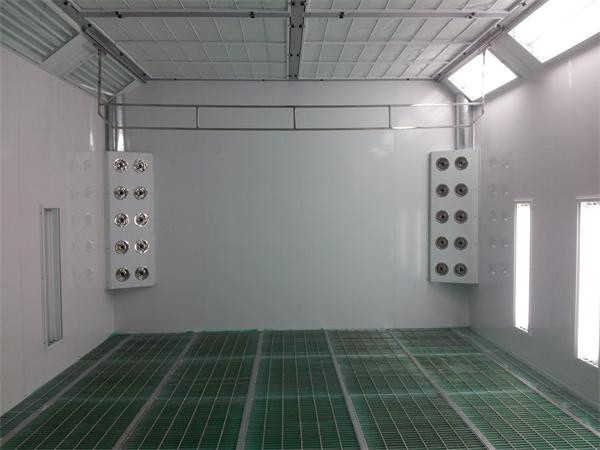

	Corner dryers	2pcs with 0.18KW motor
	Ceiling fan	2 x 1.5KW, air capacity: 4500m³/h
Purification System	Pre-filter	G3 grade, Pockets filter.
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	green fiber glass filter and active carbon
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	RielloG20 diesel oil burner(gas burner for option)
	Heating productivity	180000Kcal/h
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	3 meters stainless ducting and one chimney elbow
	Max heating temperature	80ºC
	fuel consumption	6-8L /vehicle
Lighting System	Ceiling lights	8 Units, each 4 x 36W Philips lamps, Total 1152 W
	Side lights	8 Units, each2 x 36W Philips lamps, Total 576W
	Illumination	1000LUX
Controlling system	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Please feel free to contact us call +86 13810297322 . we can supply you 24months quality warranty spray booth.
