| Fitting Position: | Front Axle |

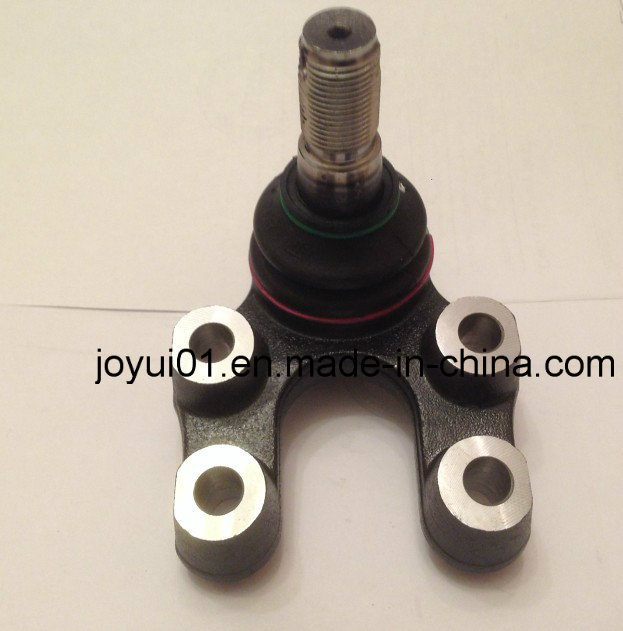

| JOINT KIT-BALL 401609X50B for | NISSAN Cabstar f24 |
| Certification: | ISO9001,TS16949. |
| Size: | Normal Size. |
| The Payments: | T/T , 30% in advance,balance before shipment. |
| MOQ: | 100 pcs |
| delivery time: | 45-55days |
| Packaging Details: | Standard packing or according to the requirements. |
On modern vehicles, ball joints are the pivot between the wheels and the suspension of an automobile. They are today almost universally used in the front suspension, having replaced the kingpin/linkpin or kingpin/trunnion arrangement, but can also be found in the rear suspension of a few higher-performance autos. Ball joints play a critical role in the safe operation of an automobile's steering and suspension.
Many currently manufactured automobiles worldwide use MacPherson strut suspension, which utilises one ball joint per side, between the lower end of the strut and the control arm, with the necessary small amount of articulation at the top of the strut being usually provided by an elastomeric bearing, within which is a ball bearing to allow free rotation about the steering axis. So, there are commonly only two ball joints in the suspension, however there will be at least four (track rod ends and rack ends) in the steering linkage.
In non-MacPherson strut automobile suspension, the two ball joints are called the "upper ball joint" and "lower ball joint". Lower ball joints are sometimes larger and may wear out faster, because the fore and aft loads, primarily due to braking, are higher at the bottom ball joint. (Torque reaction and drag add at the bottom joint, and partly cancel at the top joint.) Also, lateral cornering loads are higher at the bottom joint. Depending on the suspension design, the vertical load from the suspension spring may be handled entirely by the top ball joint, or entirely by the bottom ball joint. The damper load, (which is low in normal conditions, zero when stationary, but in peak bump or rebound rate may be almost as large as the spring load) is usually, but not always, taken on the same ball joint as the spring load. The anti-roll bar loading is often, but not always, taken on the bottom ball joint. It may be taken by the top ball joint, or directly from the steering knuckle by ball-jointed drop links.
Hangzhou Joyui Auto Parts Co., Ltd., understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
T&J Driveline International Co., Ltd. is one of the leading manufacturers and traders of the driveline parts in China. We have been specialized in the automotive industry for more than ten years. Our leading products include wheel hubs, center support bearings, universal joints, drive shaft, driveline components, C. V. Joints, engine bearing, etc, which are mainly exported to Europe, USA, South America and Middle East. With the rapid growing of our business in the world market, so far we have established following factories invested by our Group company.
Driveline components Factory. It has a strong R&D team which enables us to develop any new parts according to customer's requirements and it manufactures a big variety of driveline parts with more 5000 items for different cars, consisting of Drive shaft, Center yoke, Companion flange, Coupling, End yoke, Flange yoke, Slip yoke, Stub shaft, Weld yoke, etc.
Wheel hubs Factory. It has a strong capability of research and development as well as perfect production management system which guarantees our good quality and timely delivery. Its production capacity reaches up to 20, 000 sets per month.
Center Bearing Factory. It specializes in manufacturing bearings and related repair kits mainly for European and US trucks. In order to increase our business in the market, we will continuously develop new items so as to meet customer's different demands.
C. V. Joint Factory. Under the request of our customers, we just set up our C. V. Joint factory last year. We are confident that we will be able to provide our customers with good quality, rapid new products development as well as timely delivery. We are looking forward to establishing a long term business relationship with the customers al l around the world.
