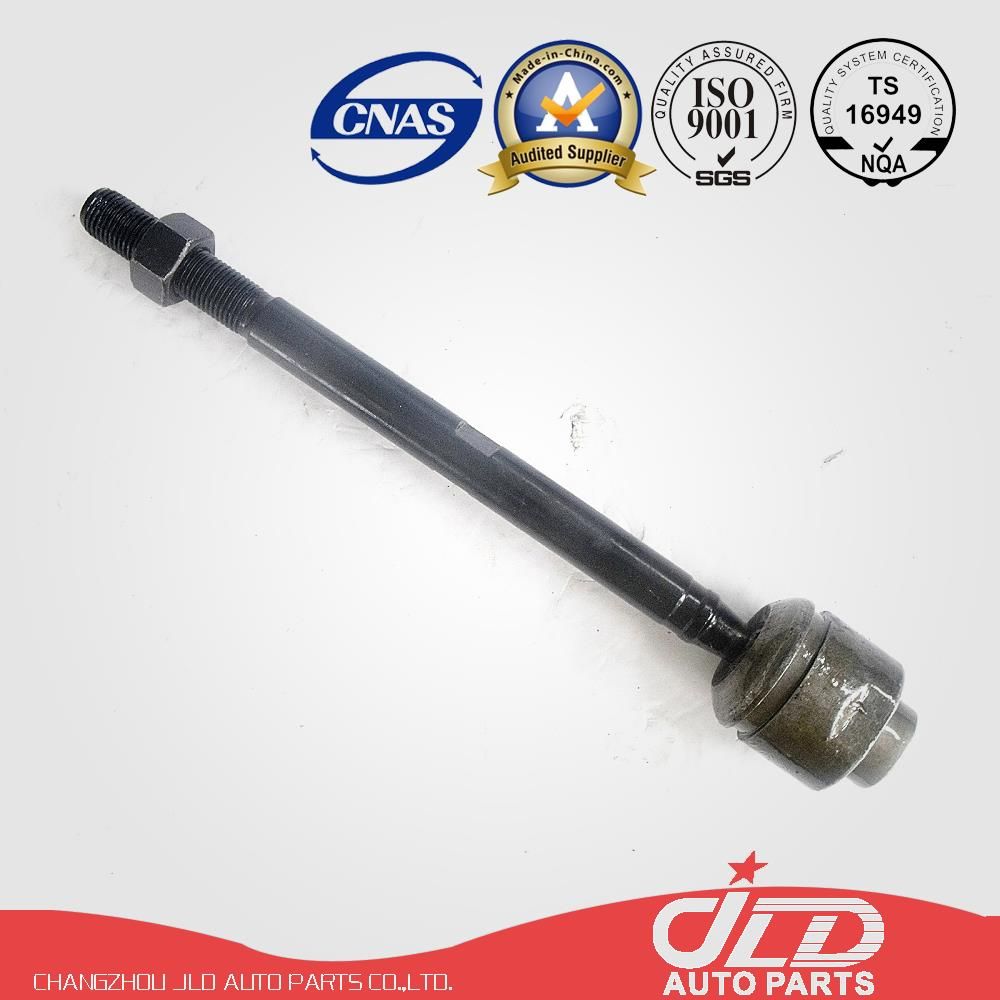

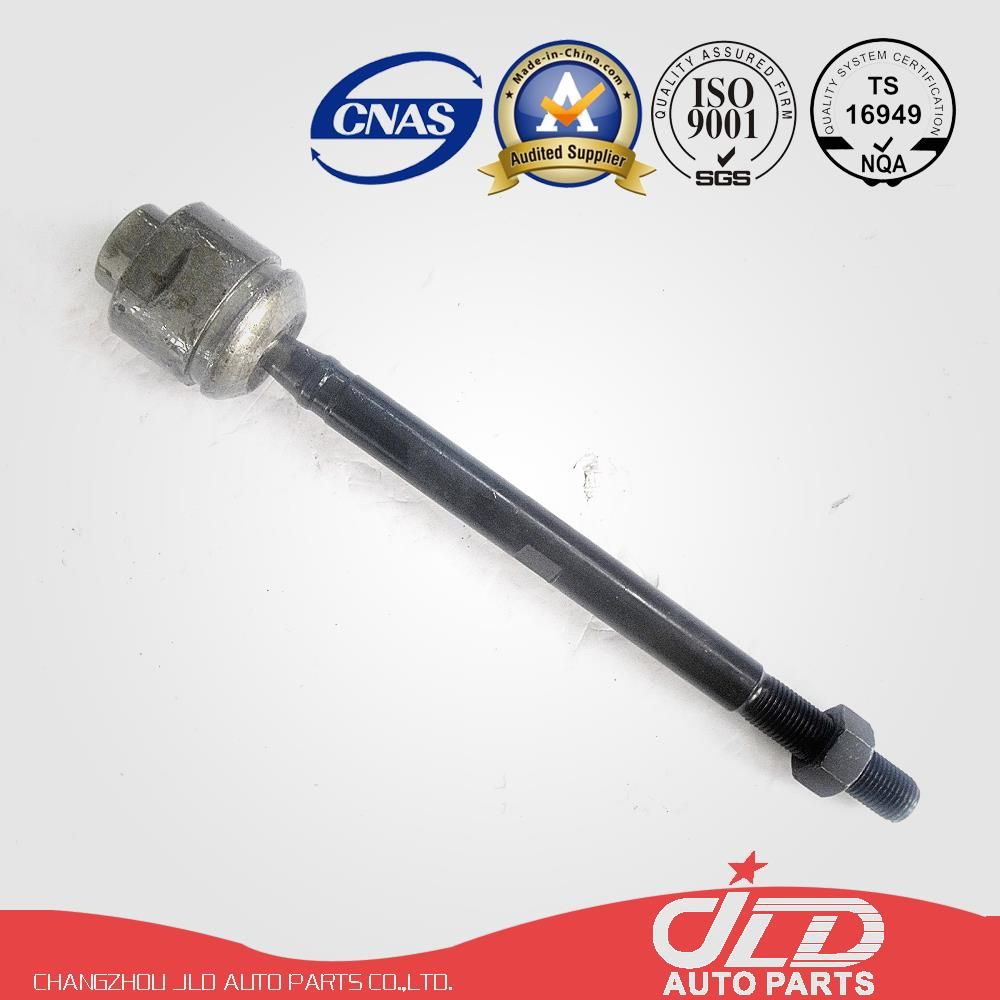

Jld Suspension Tie Rod End (5-44350-095-3) for Isuzu
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
5443500953 ES2143R RD-999 G1-936 85132A2101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Isuzu |
| Type: |
Tie Rod End |
| Material: |
Steel |
| Standard: |
Standard |
| Condition: |
New |
| Automatic: |
Automatic |
| Certification: |
Ts16949 |
Product Description
JLD SUSPENSION TIE ROD END (5-44350-095-3) FOR ISUZU
Detailed production description
(1)Good quality and competitive price
(2)Customized sample
(3)Long lifetime
(4)The best choice of replacement to OEM parts
(5)Powerful production and R&D capability
(6)Certification: ISO 9001: 2008| Application |
| ISUZUBIGHORN (UBS)198301 - 199112 |
| Body | Engine | CC | KW | HP | Cylinder | Type | Year |
| 2.8 TD (UBS55) | Diesel | 2772 | 71 | 97 | 4 | Closed Off-Road Vehicle | 198710 - 199112 |
| 2.8 TD (UBS55) | Diesel | 2772 | 78 | 106 | 4 | Closed Off-Road Vehicle | 198810 - 199112 |
| 2.2 D 4x4 | Diesel | 2238 | 39 | 53 | 4 | Closed Off-Road Vehicle | 198405 - 198912 |
| 2.6 CLS Plane 4x4 | Otto | 2559 | 66 | 90 | 4 | Closed Off-Road Vehicle | 198611 - 199107 |
| ISUZUBIGHORN Open Off-Road Vehicle (UBS)198301 - 199112 |
| Body | Engine | CC | KW | HP | Cylinder | Type | Year |
| 2.3 (UBS16) | Otto | 2254 | 66 | 90 | 4 | Open Off-Road Vehicle | 198511 - 199112 |
| 2.6 i (UBS17) | Otto | 2559 | 85 | 116 | 4 | Open Off-Road Vehicle | 198710 - 199112 |
| 2.2 TD (UBS52) | Diesel | 2238 | 53 | 72 | 4 | Open Off-Road Vehicle | 198403 - 199112 |
| 2.2 (UBS13) | Otto | 1949 | 58 | 79 | 4 | Open Off-Road Vehicle | 198301 - 198512 |
| 2.2 D (UBS52) | Diesel | 2238 | 45 | 61 | 4 | Open Off-Road Vehicle | 198301 - 198312 |
| 2.2 D 4x4 | Diesel | 2238 | 39 | 53 | 4 | Open Off-Road Vehicle | 198405 - 198907 |
| 2.6 CLS Plane 4x4 | Otto | 2559 | 66 | 90 | 4 | Open Off-Road Vehicle | 198611 - 199107 |
| 2.8 TD 4x4 | Diesel | 2771 | 81 | 110 | 4 | Open Off-Road Vehicle | 198611 - 199107 |
| OEM NO. | 5-44350-095-3 5-44350-095-2 |
| Other Numbers | SR-5150 CRIS-2 E2143R |
| Linked Vehicles | | CAR NAME | MODEL | YEAR | POSITION | REMARKS | | BIG HONR | UBS | 81- | R/L | FM14X1.5RHT | | FASTER 4WD | KB40,KB41,KB42,KB46,KB47 | 79 | | MM14X1.5RHT | | (CHEVROLET-LUV) | | | | |
|
| JLD Code | RE-5150 | JLD NO. | JLD-0502-1365 |
| DIMENSIONS (mm) |
| Metallic housing thread size(a) | FM14X1.5 | Pivot pin thread size(c) | MM14X1.5 |
Specific of metallic housing
: | K2-21.4 | Pivot pin*Length
* | Φ15X225.5 |
Pivot pin Length*diameter
* | Φ40*48 | Other body size(c) | 113
235 |
| Accessory | |
| Fittings |
| Rear Cover | / | Nut | PLM-M14X1.5 | Plastic Cover | QB-24-1 |
| Rubber Boot | / | Spring | / | Plastic Bag | 350*150 |
| BOX | RE-12 | Weight | 0.576KG | | |
| Remark | |
Our company supplies different kinds of products. High quality and favoroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Detailed production description
(1)Good quality and competitive price
(2)Customized sample
(3)Long lifetime
(4)The best choice of replacement to OEM parts
(5)Powerful production and R&D capability
(6)Certification: ISO 9001: 2008
CHANGZHOU JLD AUTO PARTS Co., LTE - A professional manufacturer specialized in automotive chassis steering and suspension parts.
What we offer: With more than 7000 kinds of products which includes Pitman Arm, Inner Arm Shaft Kit, Ball Joint, Stabilizer Link(sway bar link), Tie Rod End, Drag Link, Idler Arm, Rack End, Control Arm, Side Rod Assy, Cross Rod & Center Link etc.,
Advantage
Full Line Coverage
On Time Delivery
Technical Support: OEM and ODM provide
Samples Available
Manufacturing Quality and Consistence
ISO 9001(2008) certification and plan to
Management system: We adopted modern production management system which is from production and inspection to after-sale service of the product. We also have complete quality management system and acquired certificates of ISO 9001(2008) plan to make TS 16949
Our market:
Most of the products have been exported to South America, Eastern Europe, Southeast Asia, the Middle East area and other countries while good reputation achieved from customers.
OEM & ODM are provided
