Original JDiag Elite J2534 Diagnostic and Coding Programming Tool with JDiag Tablet and Software Preinstalled Free Update Online
The JDiag offers a wide range of capabilities to help you grow your business and retain customers including:
Module Programming
Diagnostic Functions
Key programming
Data monitoring
Notice:
1.There are three types of connection methond,via USB,WIFI and LAN Cable.But now , It can not support Wifi becasue the network card is out of stock now,we will update the notice if it can support Wifi later.
2.There are 3 systems on the computer,two win7 and one WIN8.1,which are all 64Bit,it will display a hint to ask you to choose system when you turn on the computer.
The systems are all well installed already
Reprogramming:
JDiag is an advanced J2534-1 product for reprogramming. Use the OEM's software to offer J2534 reprogramming with ALL OEMs.
JDiag offers extra J2534-2 support that expands reprogramming beyond just Engine/Trans support for Ford, GM, Toyota, Volvo, BMW,
and some others.Technicians can use JDiag for Security Key systems/programming on Ford, GM, and Toyota vehicles.
Diagnostics:
Using the OEM's own software, JDiag is compatible with Toyota Techstream, Honda HDS, Mercedes Benz Passthru, VAG ODIS,
Nissan Consult, GM GDS2, BMW ISPI NEXT, and Volvo VIDA for factory diagnostics.
As J2534 continues to grow, the number of OEM's offering a factory diagnostic solution will likewise grow.
Technical Support:
JDiag Tech offers free telephone and email support for all of it's J2534 products. When you need help,
call on our experts that use and support reprogramming every day.
In addition to live Tech support, Drew Tech offers it's users videos, FAQs, support aids, and other online
technical support thru the J2534 toolbox included with each JDiag Tools.
Technical Specifications:
Bus Protocols:
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
KWP2000 (ISO9141/14230)
Chrysler SCI (J2610)
PC Interfaces:
USB Cable
Wired RJ45 Ethernet
Wireless Card (Optional)
Other
Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) SAE J2534-2 (Dec 2014)
Compliant to ISO 22900-1 MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash slot (must be configured when ordering)
Optional external Compact Flash slot
Computer Configuration:
Name: JDiag Tablet
CPU: Intel 1037U
RAM: 4G
HDD: 500G
Screen: 11.6 Inch
Condition: NEW
Software: 36 brands well installed
Vehicle List:
JDiag is compatible with many brands cars all over the world, and more brands is still under developing.
List brands are tested:
USA: (7 Cars)
GM, OPEL, SAAB, ISUZU, SUKUZI, Ford (USA), Mazda
Europe: (20 Cars)
BMW, BMW MINI, Rolls-Royce, VW, Audi, Skoda, Seat, Lamborghini, Bentley, Jaguar , Land Rover, Volvo, Bugatti, Mercedes-Benz, Smart, FUSO, Maybach, Setra, Cobus, , Ford (EU)
Japan: (9 Cars)
Honda, Acura, Toyota, Lexus, Scion, Nissan, infiniti, GTR, Subaru (immo and programming only)
Product Specifications:
Operating voltage: 7-26 Volts
VCI Size: 20cm (L) x 14cm (W) x 4.5cm (H)
Operating Temperature: Commercial Range (0 to +70 C)
ISO22900 Compliant for GM's Tech2WIN software

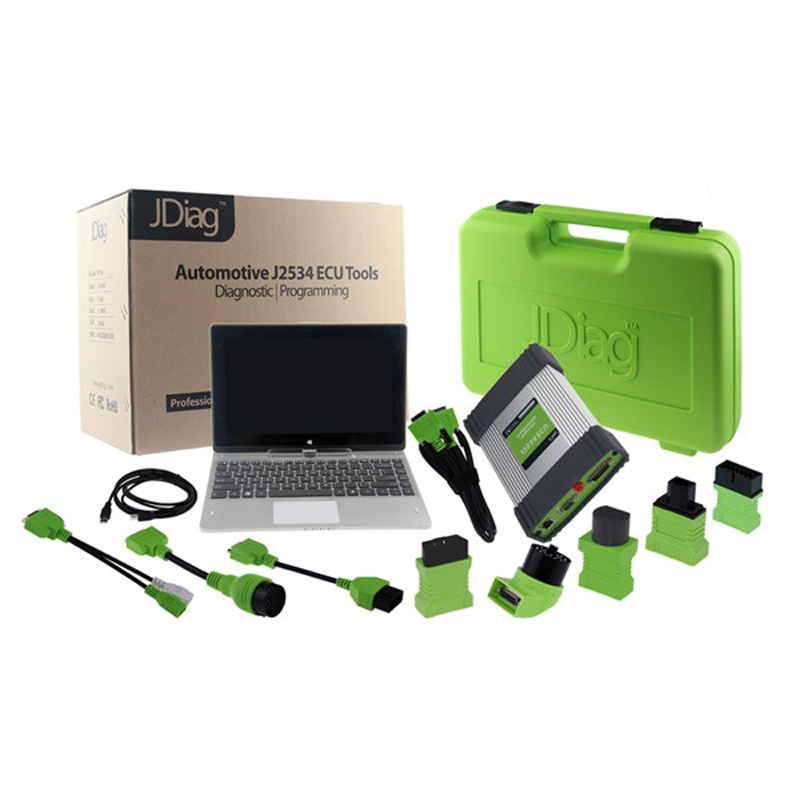

Package Including:
1x JDiag VCI
1x Main Cable
1x USB Cable *1
1x Wireless Card (Option)
7x Adapter for old cars
1x OBDII adapter
1x Laptop with full software
1x Laptop charger
1x Plastic Case
| Operating voltage | 7-26 Volts |
| VCI Size | 20cm (L) x 14cm (W) x 4.5cm (H) |
