JDiag BT-100 Battery Tester BT-100 Electrical System Circuit Tester With Automotive Tools /Auto Voltage Vgate PT150 Support 12V Cars 24V Trucks
JDiag BT100 Battery Tester is a new product from Jdiag company, it can test car battery voltage, AC and DC voltage, resistance, resistance, leakage, short circuit, components activation etc.
General Description:
It is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. After a simple hook-up of the tool to the vehicle's battery, you can:
1. Tetermine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests. The tool is also short-circuit protected, its internal circuit breaker will trip if it becomes overloaded.
5. Follow and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Jdiag Series New item JDiag BT100 Battery Tester Features:
1. Tiny deviation and more precise testing data
2. Can protect the circuit when power supply is reversed
3. Support wide input voltage range from 9V to 70V
4. Multi-languages, minority languages also can be customized
5. Large battery clip, can carry more load

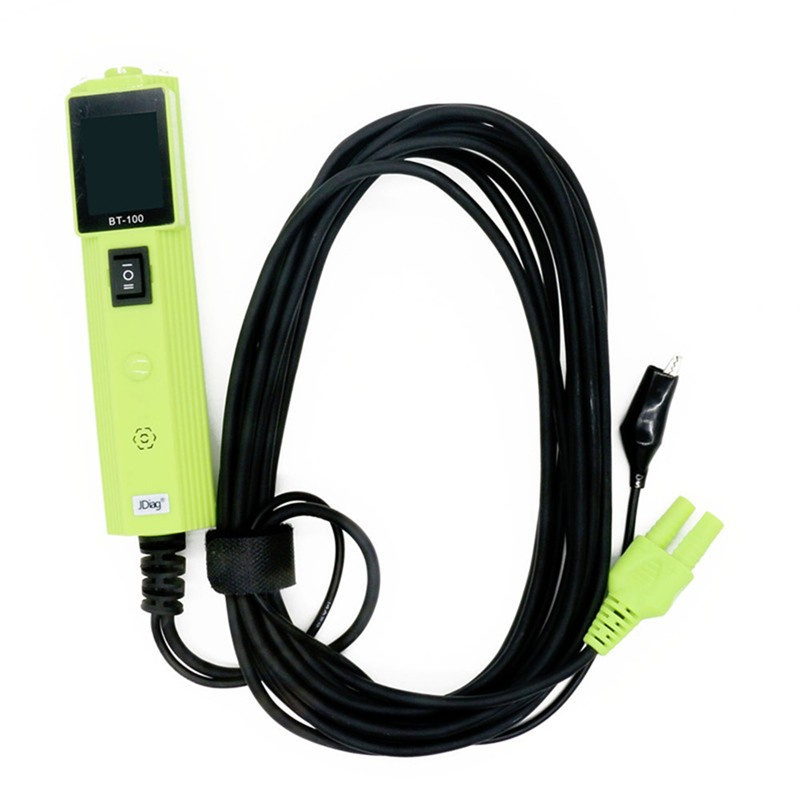

6. 10 meter diagnostic cable, environmental protection material, Not pungent
7. Support 12V cars and 24V trucks
8. Overload protection, reset automatically after overload, no need operation

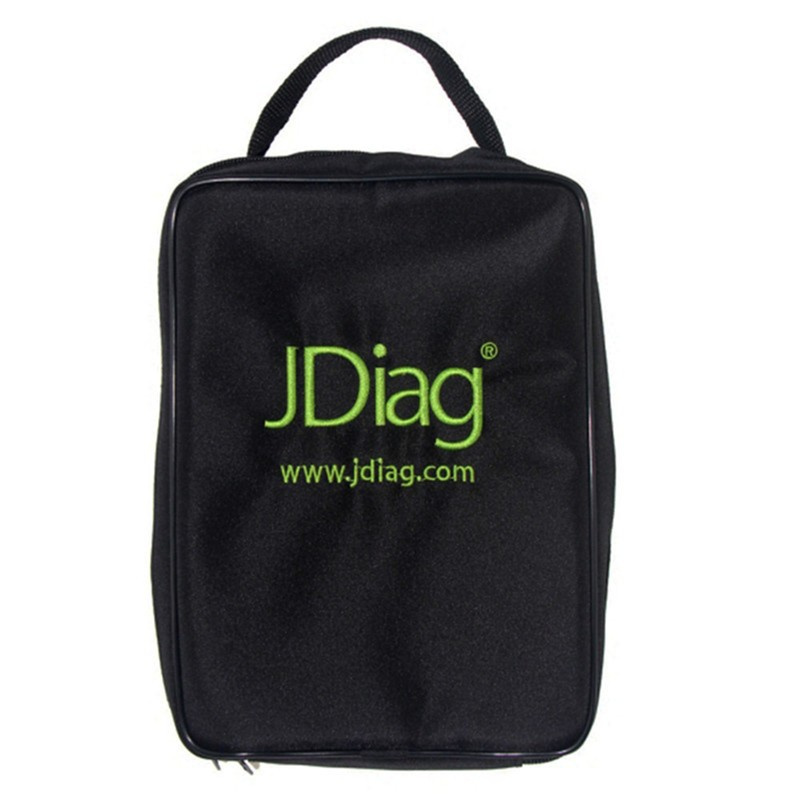

9. Nylon waterproof and oil proof Portable bag
10. Completely independent of personalized exquisite appearance
11. Low power consumption, high performance
12. Support personalized customization and OEM orders.
Specifications

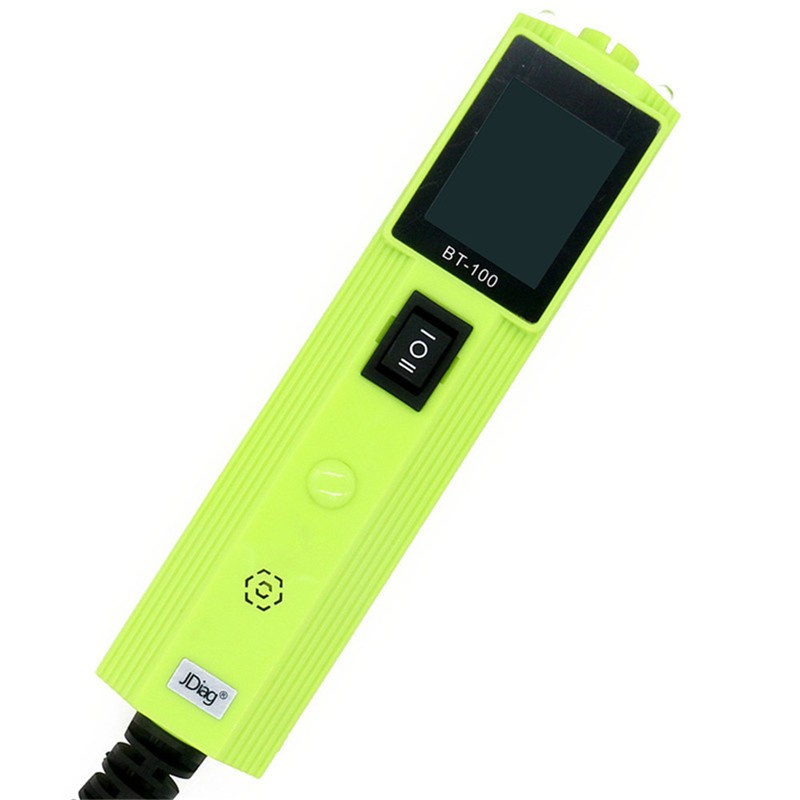

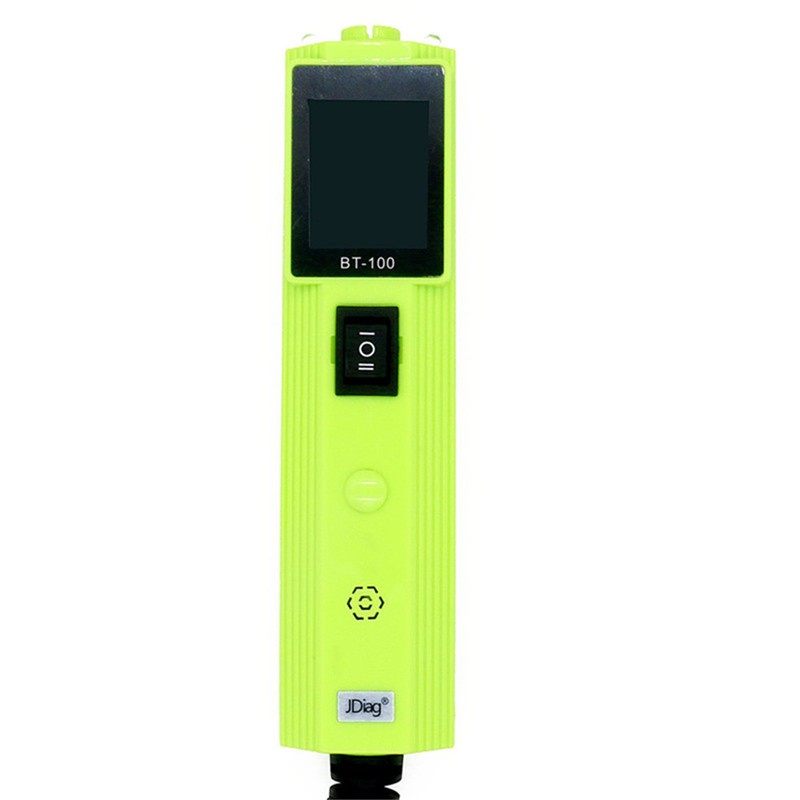

1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)
4. External Power: 12.0 or 24.0 V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm
Test Tool Specifications
DC voltage range : 0-65V +1 digit
Resistance range : 0 - 200 K?
Frequency response of tone pass through
0Hz to 10Khz.
Circuit Breaker
Rating current: 1 - 10 Amp
Testing Standard
100% current : no trip
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.
