J1962 Obdii 16p Male Connector

J1962 Obdii 16p Male Connector
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T

Product Description

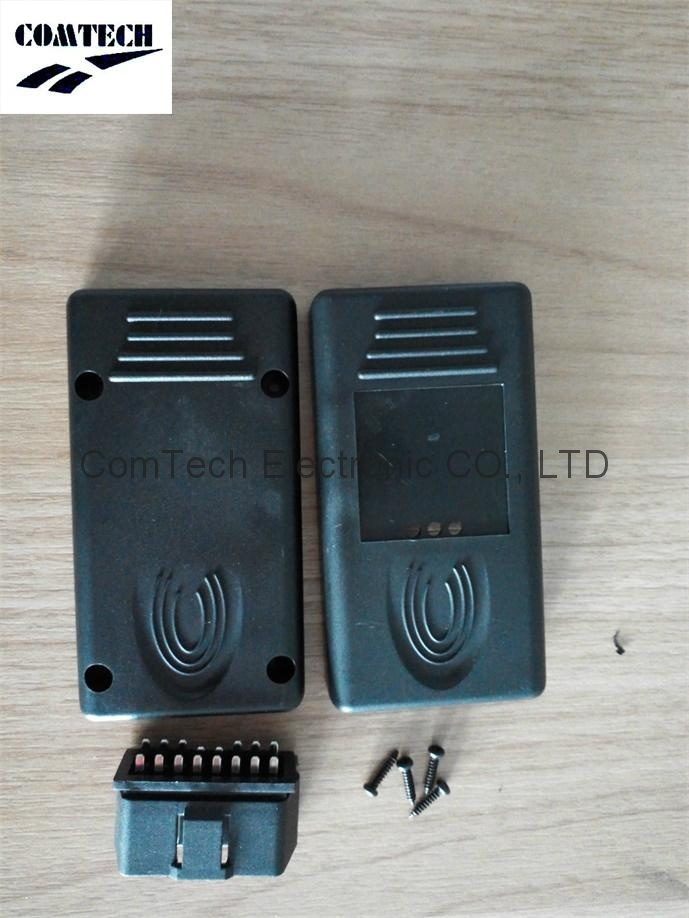

Fully equipped plug inclusive shells and break protection for the building of own diagnose cables.
Corresponding to nach SAE J1962 / ISO 15031-3 Norm with centre bar type A (passenger cars) and with hurrying ahead ground pins.


Elongated housing (without plug ca. 9 x 4,5 cm)
Hole for 5 mm LED
Screw-socket for PCB
All 16 pins are included
Pins for soldering
Tension relief
Housing bowls for screwing (4 screws incl.)
Ideally for the self-'s building of diagnostic adaptersPinBeschreibung
2J1850 Bus+
4Fahrzeug Masse
5Signal Masse
6CAN High (J-2284)
7ISO 9141-2 K Ausgang
10J1850 Bus
14CAN Low (J-2284)
15ISO 9141-2 L Ausgang
16Batterie-Spannung +12V
