| Prod Model: |
CAPTAIN-500B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7100X5350X3400 |
| Inside Dimension: |
7000X4000X2650 |
| Main Door: |
3-Folds:3000X2600 |
| Personal Door: |
1-Fold:1800*750 |
| Wallboard: |
50mm EPS Panel |
| Intake Fan: |
2*3kw |
| Exhaust Fan: |
Optional |
| Certification: |
CSA |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |

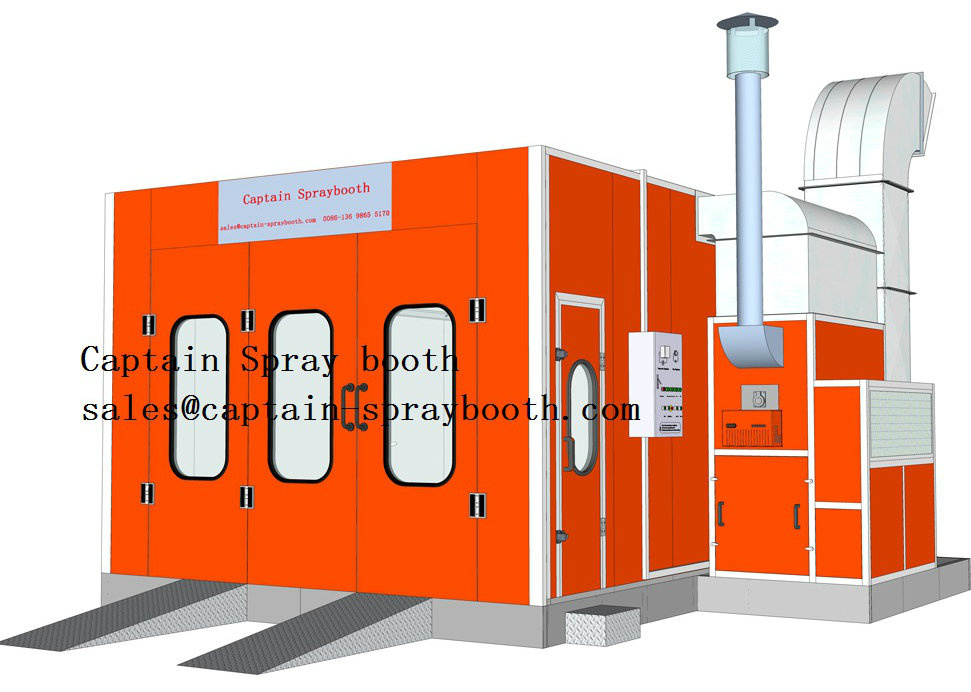

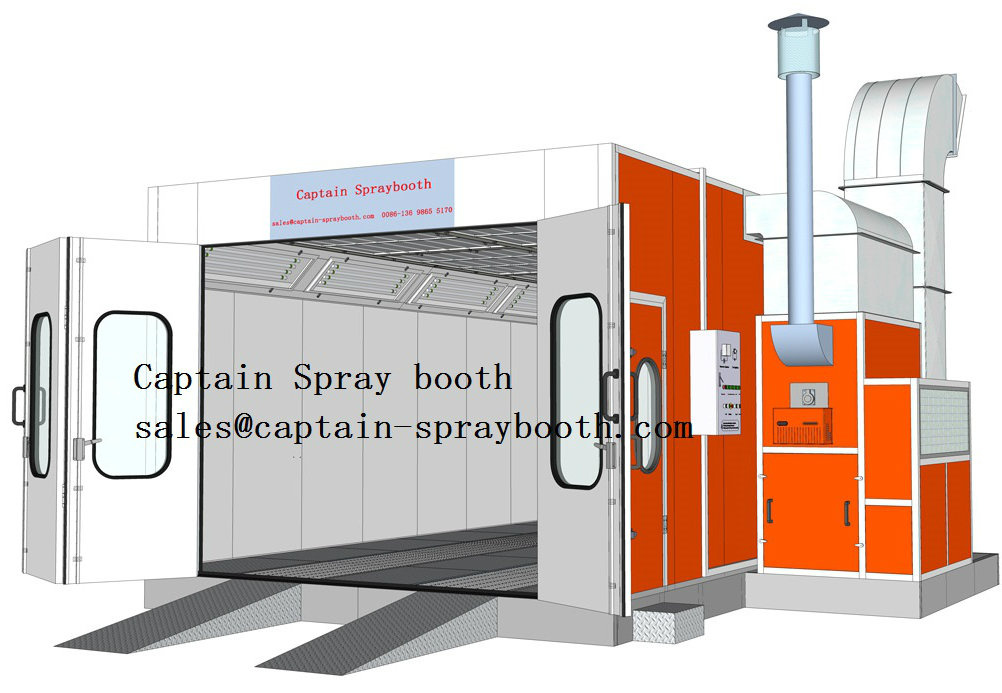

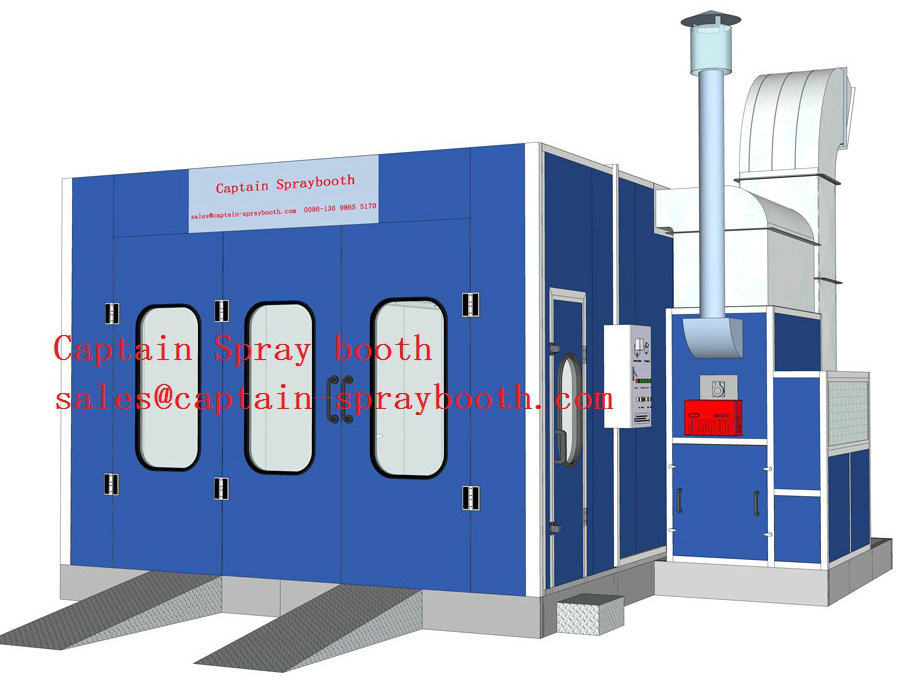

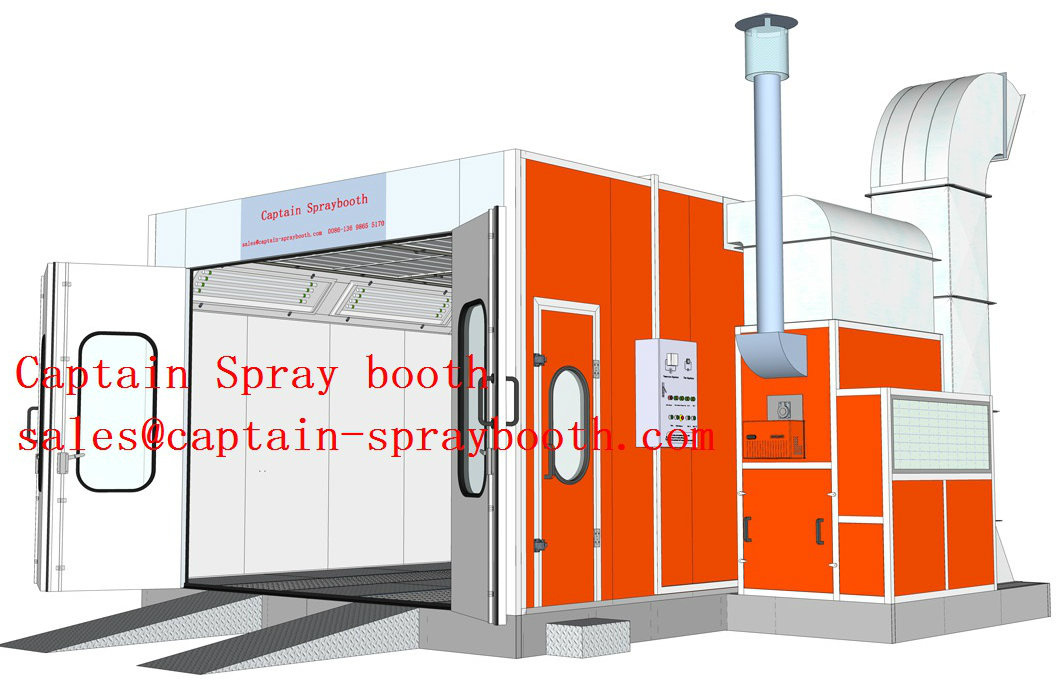

Product Description
| Inside Size(mm) | 7000x4000x2650 | Outside Size(mm) | 7100x5350x3400 | Front Door(mm) | 3000x2600(WxH) | Total Power | 33kw |
| Basement | 3 rows of diamond plate, 2 rows of grilles, made by 30mm x 4mm flat steel, 2 embossed steel ramp, 1 piece stairs. |
| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure; The watching window is with 5mm white glass. Aluminum alloy hinge and extra position bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 3kw YDW4.5L centrifugal fans for supplying, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with reinforcing ribs. |
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger is made of δ=1.2mm sus304 stainless steel by argon arc welding. |
| Purification System | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
Small paint booth(economy model, CE, German Technology)
1. CE approved
2. German Technology
3. Spray booth professional manufacturer
4. Factory price, energy saving
5. High quality, best sell service, timely delivery
6. We can meet at customer's special requirement
ItemsSpecOutside Dimension7000× 5000× 3200mm(L× W× H)Inside Dimension6900× 3900× 2600mm(L× W× H)Main Door3-folds: 2800× 2500mm (W× H), aluminium alloy door frame Personal Door1-fold: 650× 1800mm (W× H), aluminium alloy door frame Wallboard50mm double skinned EPS heat preservation wall panel with tongue and groove joints, steel 0.36mm thickBasement & FloorComplete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 520× 2000mm (W× L)/pc
Lighting SystemInclined ceiling lights: 3Pcs/teamX8team, Waist light 3Pcs/teamX4team, total 1440W. Generator SettingIntake air from side back direction, quadrate steel frame, colourful coated steel plateIntake Fan2set 4 Kw centrifugal fan, direct drive, air capacity is 36000m³ /hExtract FanOptionalNumber Of Air Changes (times/hour)320Wind Velocity At Full Load Inside The Room(M/S)0.36m/sHeating System1set Riello or Baltur BT14 brand diesel oil burner, maximum heat productivity is 200, 000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle.
Maximum Working Temperature80Heating Rate(/min 20--60)4-6Filtering SystemPrimary filter, high efficiency filter, activated carbon filter. Control PanelSpraying, heat spraying, baking temperature, time setting, failure indicator, lighting switchFilter Efficiency≥ 98%Noise(db)≤ 75ColourBlue, red, whiteTotal power(Kw)11KW
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
