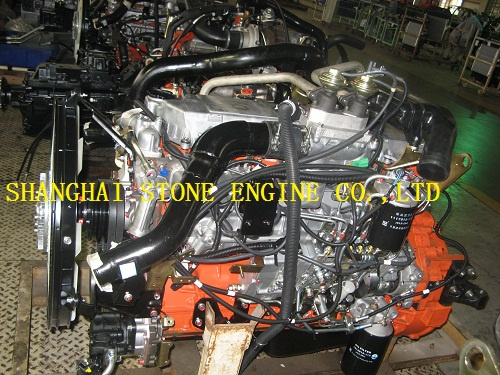

Shanghai STONE DIESEL ENGINE Co., Ltd CAN SUPPLY ISUZU DIESEL ENGINE 4BD1 4BD1T 6BD1 6BD1T DIESEL ENGINE MODEL 4JB1-TC 4KH1-TC 4HJ1 4JB1-NA 4JB1-T1 4ZE1-MPI 4ZE1-MPI 6VD1 6HH1 6HK1 6HK1-TC 6SD1-TC 4HV1 CNG 6HK1-TC CNG 4H EURO3 150PS 4H EURO3 180PS 6H EURO3 230PS 6H EURO3 260PS P430 EURO3 340PS P430 EURO3 380PS
CYLINDER NO. BORE*STROKE 4-95.4*104.9 4-115*120 4-93*102 4-92.6*95 6-93.4*77 6-115*132 6-115*125 6-120*145 6-115*110 6-115*125 4-115*125 6-115*125 6-120*145 6-120*145
COMPRESSOR RATIO 18.1 18.3 18.5 18.2 8.3 9.4 18.5 17.5 16.9 16.5 12.5 11.3 18.5 18.5 17.5 16.9
NET WEIGHT kg 256-5 269-5 375-5 229-5 250-5 169-5 169-5 525 614 625 350 614 400 400 614 625 840 840
DISPLACEMENT L 2.771 2.999 4.985 2.771 2.771 2.559 3.165 8.266 7.79 7.79 9.839 4.57 7.79 5.193 5.193 7.79 7.79 9.839 9.839
ENGINE POWER kW/r/min 70/3400 96/3400 115/3100 58.8/3800
4HK1X with Intercooler Turbo
Displacement 5, 193CC
CYL. Number: 4
Bore*Stroke: 115.0mm*125.0mm
Combustion type: DI
Valve Arrangement: 4 Valve OHV
Rated Output: 122kW/1800min-1-147kW/2100min-1
Max. Torque: 677-686Nm/1500min-1
Size(L*W*H): 1009.2mm*726.9mm*918.0mm
Fuel Injection System: Common rail HP3 type
EGR System: Cooled EGR
6HK1X with Intercooler Turbo
Displacement: 7, 790CC
CYL. Number: 6
Bore*Stroke: 115.0mm*125.0mm
Combustion type: DI
Valve Arrangement: 4 Valve OHV
Rated Output: 161-212kW/2000min-1
Max. Torque: 677-1050Nm/1500min-1
Size(L*W*H): 1357mm*995.4mm*1162.5mm
Fuel Injection System: Common rail HP4 type
EGR System: Cooled EGR
4JG1(T)
Displacement: 3, 059CC
CYL. Number: 4
Bore*Stroke: 95.4mm*107.0mm
Combustion type: DI
Valve Arrangement: OHV
Rated Output: 39.1kW/2100min-1-55.2kW/2150min-1
Max. Torque: 188-255Nm/1800min-1
4BG1T
Displacement: 4, 329CC
CYL. Number: 4
Bore*Stroke: 105.0mm*125.0mm
Combustion type: DI
Valve Arrangement: OHV
Rated Output: 69.6kW-89.3kW/2200min-1
Max. Torque: 338Nm/1600min-1-449Nm/1800min-1
Fuel Injection System: In-line Bosch ADS Type
6BG1T
Displacement: 6, 494CC
CYL. Number: 6
Bore*Stroke: 105.0mm*125.0mm
Combustion type: DI
Valve Arrangement: OHV
Rated Output: 110kW-125kW/2100min-1
Max. Torque: 550-638Nm/1800min-1
Size(L*W*H): 1026mm*814.6mm*996mm
Fuel Injection System: In-line Bosch Type
6HK1X
Displacement: 7, 790CC
CYL. Number: 6
Bore*Stroke: 115.0mm*125.0mm
Combustion type: DI
Valve Arrangement: OHV
Rated Output: 183.9kW/2000min-1
Max. Torque: 872.8Nm/1700min-1
Size(L*W*H): 1332mm*995.4mm*1142.7mm
Fuel Injection System: In-line Bosch Type
C240PKJ-30
Displacement: 2, 369CC
CYL. Number: 4
Bore*Stroke: 86mm*102mm
Combustion type: IDI
Valve Arrangement: 2 Valves
Rated Output: 34.3kW/2500min-1
Max. Torque: 137.7Nm/1800min-1
Size(L*W*H): 693mm*550.5mm*689mm
Fuel Injection System: VE Pump
4HK1(X)
Displacement: 5, 193CC
CYL. Number: 4
Bore*Stroke: 115.0mm*125.0mm
Combustion type: DI
Valve Arrangement: 4 Valve OHV
Rated Output: 64.3kW/2200min-1-125kW/2000min-1
Max. Torque: 302Nm/1600min-1-635.3Nm/1500min-1
Size(L*W*H): 1009.2mm*726.9mm*918.0mm
Fuel Injection System: Common rail HP3 type
EGR System: Cooled EGR
C240PKJ-20
Displacement: 2, 369CC
CYL. Number: 4
Bore*Stroke: 86mm*102mm
Combustion type: IDI
Valve Arrangement: 2 Valves
Rated Output: 34.3kW/2500min-1
Max. Torque: 137.7Nm/1800min-1
Size(L*W*H): 693mm*550.5mm*689mm
Fuel Injection System: VE Pump
4JG2PE
Displacement: 3, 059CC
CYL. Number: 4
Bore*Stroke: 95.4mm*107mm
Combustion type: DI
Valve Arrangement: OHV
Rated Output: 45kW/2450min-1
Max. Torque: 184.7Nm/1700min-1
Size(L*W*H): 718.6mm*572mm*745.5mm
Fuel Injection System: VE Pump
Shanghai STONE DIESEL ENGINE Co., Ltd
|
4HK1X with Intercooler Turbo |
|
Displacement |
5,193cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
115.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
4 Valve OHV |
|
Rated Output: |
122kW/1800min -1 /147kW/2100min -1 |
|
Max.Torque: |
677/686Nm/1500min -1 |
|
Size(L*W*H): |
1009.2mm*726.9mm*918.0mm |
|
Fuel Injection System: |
Common rail HP3 type |
|
EGR System: |
Cooled EGR |
|
|
|
|
6HK1X with Intercooler Turbo |
|
Displacement: |
7,790cc |
|
CYL.Number: |
6 |
|
Bore*Stroke: |
115.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
4 Valve OHV |
|
Rated Output: |
161/212kW/2000min- 1 |
|
Max.Torque: |
677/1050Nm/1500min -1 |
|
Size(L*W*H): |
1357mm*995.4mm*1162.5mm |
|
Fuel Injection System: |
Common rail HP4 type |
|
EGR System: |
Cooled EGR |
|
|
|
|
|
|
|
4JG1(T) |
|
Displacement: |
3,059cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
95.4mm*107.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
OHV |
|
Rated Output: |
39.1kW/2100min -1 /55.2kW/2150min -1 |
|
Max.Torque: |
188/255Nm/1800min -1 |
|
|
|
|
4BG1T |
|
Displacement: |
4,329cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
105.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
OHV |
|
Rated Output: |
69.6kW/89.3kW/2200min -1 |
|
Max.Torque: |
338Nm/1600min -1 /449Nm/1800min -1 |
|
Fuel Injection System: |
In-line Bosch ADS Type |
|
|
|
|
6BG1T |
|
Displacement: |
6,494cc |
|
CYL.Number: |
6 |
|
Bore*Stroke: |
105.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
OHV |
|
Rated Output: |
110kW/125kW/2100min -1 |
|
Max.Torque: |
550/638Nm/1800min -1 |
|
Size(L*W*H): |
1026mm*814.6mm*996mm |
|
Fuel Injection System: |
In-line Bosch Type |
|
|
|
|
6HK1X |
|
Displacement: |
7,790cc |
|
CYL.Number: |
6 |
|
Bore*Stroke: |
115.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
OHV |
|
Rated Output: |
183.9kW/2000min -1 |
|
Max.Torque: |
872.8Nm/1700min -1 |
|
Size(L*W*H): |
1332mm*995.4mm*1142.7mm |
|
Fuel Injection System: |
In-line Bosch Type |
|
|
|
|
C240PKJ-30 |
|
Displacement: |
2,369cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
86mm*102mm |
|
Combustion type: |
IDI |
|
Valve Arrangement: |
2 Valves |
|
Rated Output: |
34.3kW/2500min -1 |
|
Max.Torque: |
137.7Nm/1800min -1 |
|
Size(L*W*H): |
693mm*550.5mm*689mm |
|
Fuel Injection System: |
VE Pump |
|
|
|
|
4HK1(X) |
|
Displacement: |
5,193cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
115.0mm*125.0mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
4 Valve OHV |
|
Rated Output: |
64.3kW/2200min -1 /125kW/2000min -1 |
|
Max.Torque: |
302Nm/1600min -1 /635.3Nm/1500min -1 |
|
Size(L*W*H): |
1009.2mm*726.9mm*918.0mm |
|
Fuel Injection System: |
Common rail HP3 type |
|
EGR System: |
Cooled EGR |
|
|
|
|
C240PKJ-20 |
|
Displacement: |
2,369cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
86mm*102mm |
|
Combustion type: |
IDI |
|
Valve Arrangement: |
2 Valves |
|
Rated Output: |
34.3kW/2500min -1 |
|
Max.Torque: |
137.7Nm/1800min -1 |
|
Size(L*W*H): |
693mm*550.5mm*689mm |
|
Fuel Injection System: |
VE Pump |
|
|
|
|
4JG2PE |
|
Displacement: |
3,059cc |
|
CYL.Number: |
4 |
|
Bore*Stroke: |
95.4mm*107mm |
|
Combustion type: |
DI |
|
Valve Arrangement: |
OHV |
|
Rated Output: |
45kW/2450min -1 |
|
Max.Torque: |
184.7Nm/1700min -1 |
|
Size(L*W*H): |
718.6mm*572mm*745.5mm |
|
Fuel Injection System: |
VE Pump |
As a leading manufacturer and supplier in China, Shanghai Stone Diesel Engine Co., Ltd is specialized in complete engine DEUTZ/KHD, CUMMINS, ISUZU and CATERPILLAR. We are also the supplier spare parts. Such as crankshaft, camshaft, con rod, cylinder head, cylinder block, cylinder liner, piston, piston ring, engine valve, engine bearing, oil nozzle, oil seal, oil pump, fuel pump, water pump, turbocharger, and so on.
Our products have exported many countrys.
Shanghai Stone Diesel Engine Co., Ltd supply the China products which are made by joint venture with international engine and engine parts, for example MAHLE IZUMI, Mahle, Elring, Bosch, Payen, Federal-mogul, TP, Holset, S. Valeo, Garrett, Borg-Warner, KKK, ZF, Eaton, Fuller, GKN, Thomson products which made in China under strict quality control and international quality standards.
We aim to be a top class supplier for worldwide OEM and aftermarket!
Hope build good business relationship with all company which is do business in this field.
