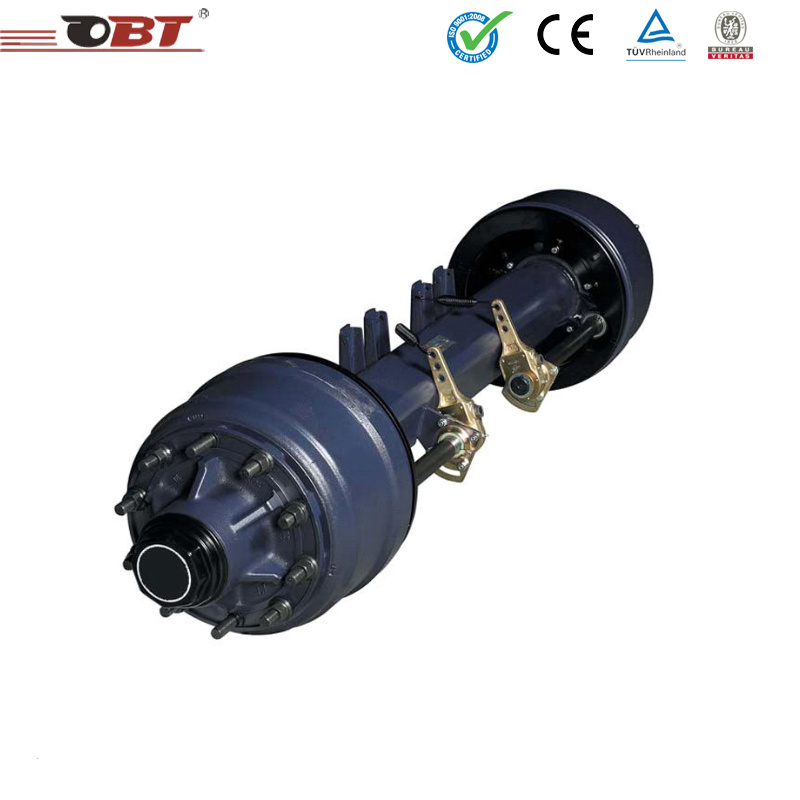

ISO Certification Obt German Type Trailer Truck Lift Axle
Price: |
US $ 535-600/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

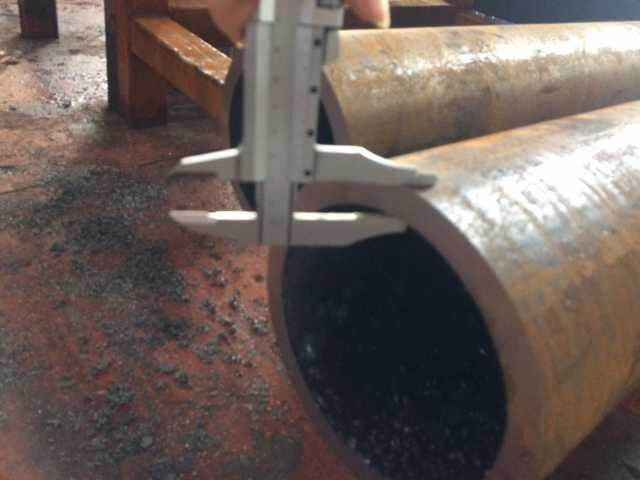

German Type Trailer Truck Lift AxleOBT axle Features:1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle.
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.Semi Trailer Axle Specification:German Axle |
Model | 105km /H Max. Load (kg) | "S"cam Brake Series φ× Width mm | Track TR mm | GM mm | Axle Beam mm | Spring Seat LM mm | Wheel Fixing | Total Length LP mm | Bear ing | Weight (kg) | Recomm ended Wheel |
Stud mm | P.C.D mm | φH mm |
OBT 180 | 9000 | S420 ×180 | 2040 | 622 | Ο127 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2146 | 33213 33118 | ∽364 | 7.50V-20 |
OBT 181 | 12000 | S420 ×200 | 2040 | 622 | Ο127 | 1180 | 10-M22× 1.5 ISO | 335 | 281 | ∽2356 | 33213 3118 | ∽375 | 7.50V-20 |
OBT 182 | 12000 | S420 ×180 | 1840 | 420 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2156 | 33213 33118 | ∽372 | 7.50V-20 |
OBT 183 | 12000 | S420 ×200 | 1840 | 354 | ◊150 | 900 | 10-M22× 1.5 ISO | 335 | 281 | ∽2156 | 33213 33118 | ∽96 | 7.50V-20 |
OBT 184 | 14000 | S420 ×180 | 1840 | 422 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2188 | 33215 32219 | ∽402 | 8.0V-20 |
OBT 185 | 14000 | S420 ×200 | 1840 | 354 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2188 | 33215 32219 | ∽416 | 8.0V-20 |
OBT 186 | 14000 | S420 ×220 | 1840 | 354 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2188 | 33215 32219 | ∽430 | 8.0V-20 |
OBT 187 | 16000 | S420 ×200 | 1850 | 356 | ◊150 | 900 | 10-M22× 1.5 ISO | 335 | 281 | ∽2242 | 32314 32222 | ∽468 | 8.0V-20 |
OBT 188 | 16000 | S420 ×220 | 1850 | 376 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2242 | 32314 32222 | ∽474 | 8.0V-20 |
OBT 189 | 18000 | S420 ×200 | 1850 | 356 | ◊150 | 900 | 10-M22× 1.5 ISO | 335 | 281 | ∽2242 | 32314 32222 | ∽478 | 8.0V-20 |
OBT 190 | 18000 | S420 ×220 | 1850 | 376 | ◊150 | 980 | 10-M22× 1.5 ISO | 335 | 281 | ∽2242 | 32314 32222 | ∽484 | 8.0V-20 |

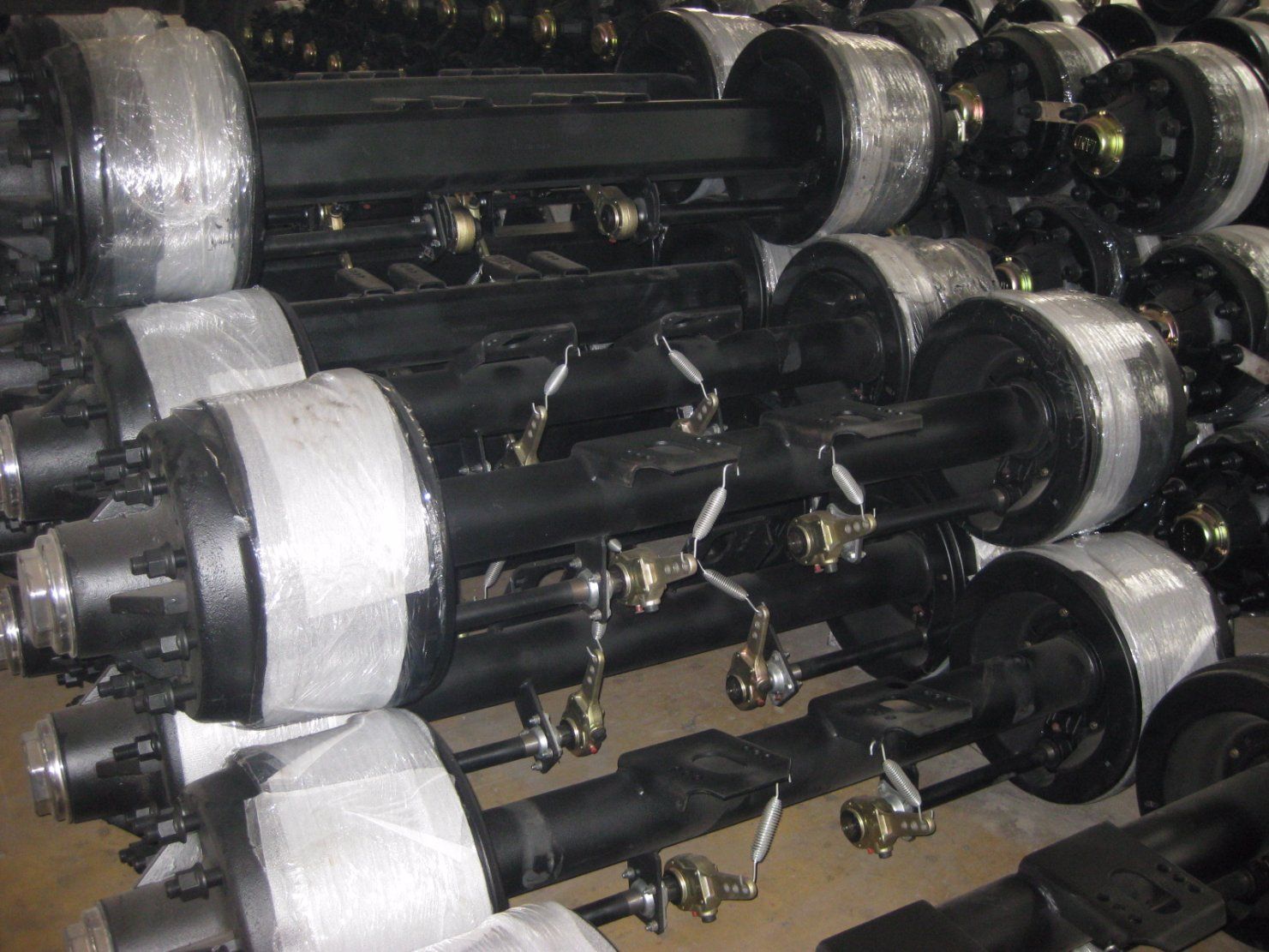

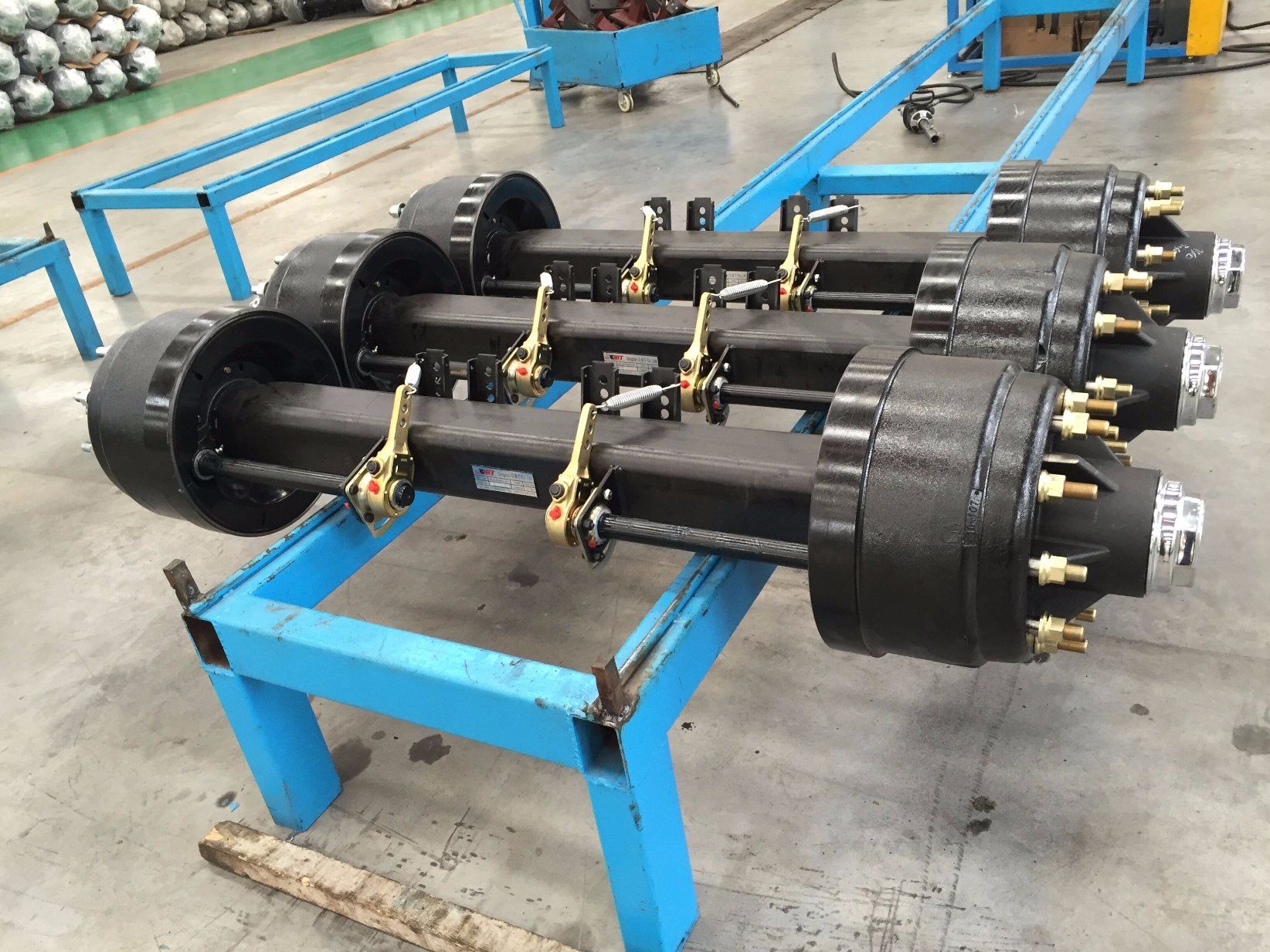

Semi Trailer Axle Photos:Packaging & Delivery:1. Standard package for shipping in containers.
2. Naked or pallet.
3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.
4. Support transit report with pictures.One-stop Service: 1. Professional Production Team:
More than 300 Experinced workers, provide clients high assembling for fast quality delivery.
2.Customize:
Professional design team provide suitable programs and customized, support local adaptive trailer.
3. 7*24h Service
7*24h service provide professional fast response.
4. Parts Support:
Abundant parts supply provide lasting support for worldwide clients.
5. DDP Logistic Transport:
Deliver to client anywhere in the worldby best logistic supplier. Company information: OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In
2007,we merged the company CSRS for air springs ,also in 2007,built our trailer company B&C in Australia in 2010,we
built our branch company SCG in Singapore in 2012, in order to expand our business areas ,we build our tyre branch
ZERMATT in 2013,special for tires. After 18 years of pioneering spirit, it has developed into an important vehicle and
auto parts production base and export base. Please contact:
Prod Model: |
OBT German type lift axle |
Brand: |
Obt® |
Product Name: |
ISO Certification Obt German Type Trailer Truck Li |
Model: |
Single Tyre/Twin Tyre/Inboard/Outboard |
Certificates: |
ISO/Ts16949 |
Axle Beam: |
Round Beam/Square Beam |
Track Sp(mm): |
1840/1850/2040 |
Lm(mm): |
980/1180 |
GM: |
Optional |
Stud: |
Optional |
Lp(mm): |
Optional |
Type: |
Rear/Front |
OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In 2007, we merged the company CSRS for axle and suspension, built our trailer company B&C in Australia in 2010, we build our tyre branch ZERMATT in 2013, special for tires, in order to expand our business areas, we built our branch company SCG in Singapore in 2014, and also in 2014, we merged the Ocean Navy Logistics to perfect our transportation system. After 18 years of pioneering spirit, it has developed into an important vehicle and auto parts production base and export base.
OBT Group now has three independent Division---- Production Sector, Trade Sector and Singapore sub-sectors, involved in transportation, trailer and agriculture machine manufacturing, parts production and international trade fields.
With most-to-up technology and top designers from Singapore and Germany we successfully design and manufacture for Shell, BP, ExonMobil, Singapore Fire, Canada Fire, and Turkey moving company, etc.
We accept any kind of technique cooperation including to offer full exclusive custom design manufacture and service
With the combination of modern equipment and advanced processing technology and perfect quality control system, we always adhere to the principle of "Top quality, reasonable price and good after service"
