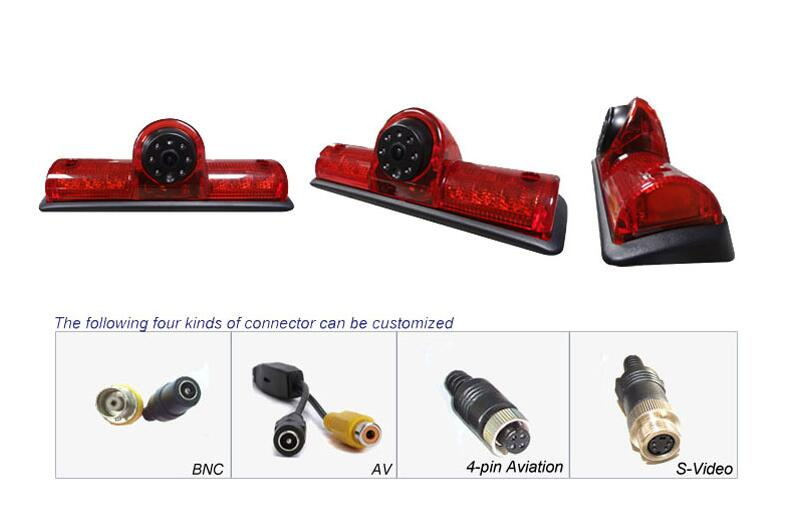

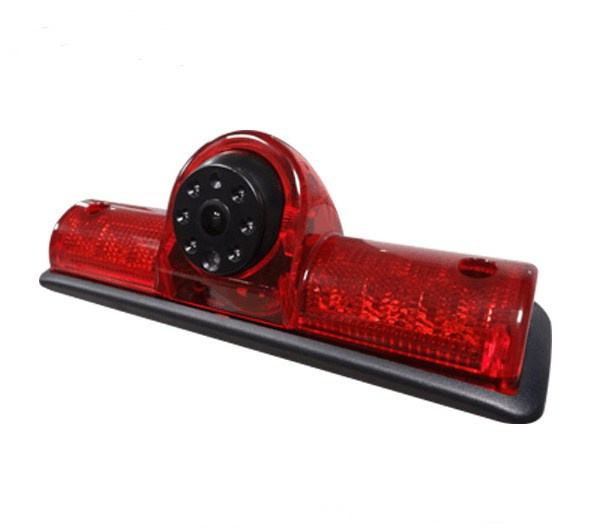

Car Brake Light Rear View Camera LED Brake Light IR 6-LED Rear View Camera Parking Camera for RAM Promaster Cargos Van
Product Description 1) Dustproof, waterproof, hydrochloric acid prevention, explosion prevention.
2) Build in Microphone: collects the environmental sound around the camera.
3) The third brake light bring more safe driving.
4) High position rearview camera bring you more video angle.
5) The shell of camera is using the best whole PC material
6) Self heating: The cameras will entry the self-heating mode when the environmental working temperature is lower than -5C. And it will automatic stop heating when the temperature reaches 30C.
Product Specification
700TV High Resolution Sony CCD Brake Lights Backup Camera For Dodge RAM Promaster Cargos Van KT-924
Package Details:
1xCamera
1x10M Video cable Mini 4PIN Waterproof Connector
1x3M Glue
1xAdapter(4Pin to RCA)
1x1bag screws
1xWhite box
Sharp CCD/Sony CCD for clients choose
Camera Specifications:
| TV system | PAL/NTSC (Optional) |
| Image Sensors | 1/3 Sony CCD/1/4 Sony CCD/1/3 Sharp CCD/CMOS |
| TV Lines | 560TV/650TV/700TV |
| View angle | 120degrees/90degrees |
| Ip Rating | IP67~IP68 |
| Voltage | DC 12V |
| Effective Pixel | 648*488pixels/648*520pixels/720*480pixels/720*576pixels/728*582pixels/728*512pixels |
| Minimum illumination | 0LUX (IR ON) |
| Operating temperature | -20-50 |
| Video Output | 1.0V pp at 75ohm |
| Scanning System | 525 Lines. 60 Field /Sec |
| B.L.C | Back light Compensation(Auto) |
| White Balance | Auto White Balance (Auto) |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Built-in Lens | f : 2.97 (Option) |
| Cable | Standard 1M RCA/DC jack(optional) |
| Special Service | Offer OEM/ODM Order |
| After-Sale Service | Free Replace All defect goods within 14months Warranty time,Clients can resell it. |
| Warranty | 14months |
1/3 Sony CCD
Specifications
optical Format:1/4-inch
TV System NTSC/PAL
IP Rating IP68
Resolution 700TV Lines
Lens Angle 120Degrees
Active Array:NTSC:752(H)x494(V)/PAL:752(H)X582(V)
Imaging Area:3.54mm(H)X2.69mm(V)
Speed/Output
Frame Rate:30 fps NTSC/25fps PAL;
60 fps digital at full resolution
Date Rate:27 Mb/s
Master Clock:27MHz
Date Format:NTSC/PAL/digital progressive scan
Sensitivity
Pixel Size:5.6umx5.6um
Pixel Dynamic Range:82dB
Responsivity:11.5V/lux-sec(550nm)
Power Supply:DC12V
Sharp CCD 1/3
Ip rating Ip68
Images Sensors 1/3 Sharp CCD
TV System PAL/NTSC
Effective Pixels 720X582/720X512
Sensing Area(mm) 4.9X3.7
Resolution(TV Lines)480
Min.IIIumination(Lua/F1.2)0
Horizontal Sync.Frequency(KHZ) 15.625/15.734
Vertical Sync.Frequency(HZ) 50/60
Video Output:75 Ohm
Gamma Consumption:0.45
AGC:Auto
BLC :Auto
S/N ratio :Better than 48dB
Lens:F=1.9mm/F=2.0
Lens Angle(Deg.) : 120°
Current Consumption(mA) :300
Power Supply(DCV)12
Operating Temperature(Deg.C):-20+75(RH95% Max.)
Storage Temperature(Deg.C) :-40+85(RH95% Max .)
Note:waterproof,shockproof,high temperature resistance,humidity resistance,high definition

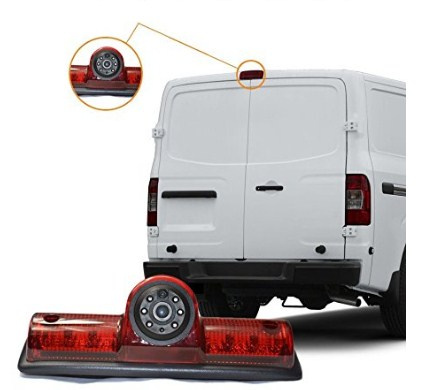

Installation:loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera(Subject to loading the actual effect)
competitive advantage
1.Stable quality
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:14months
7.OEM,ODM welcome
