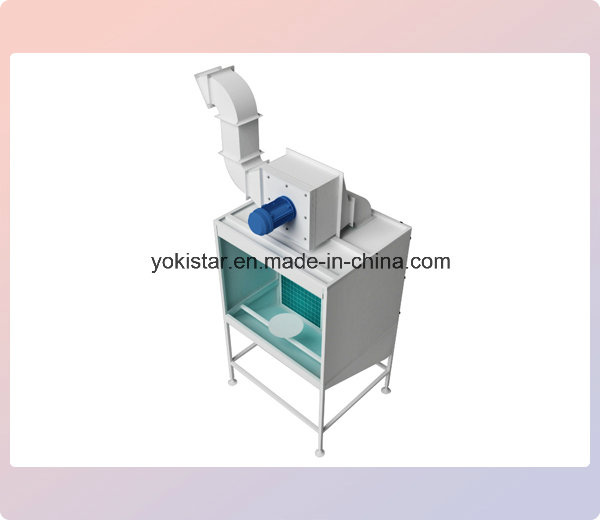

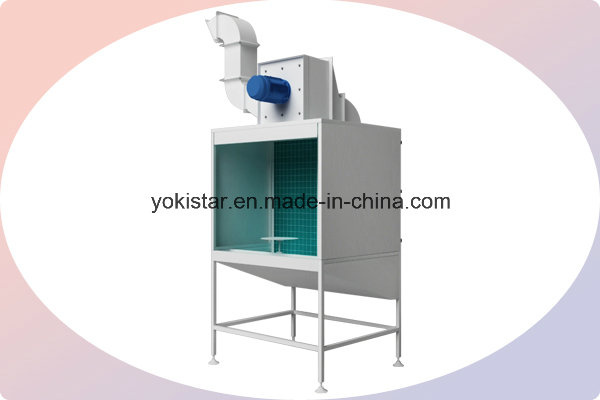

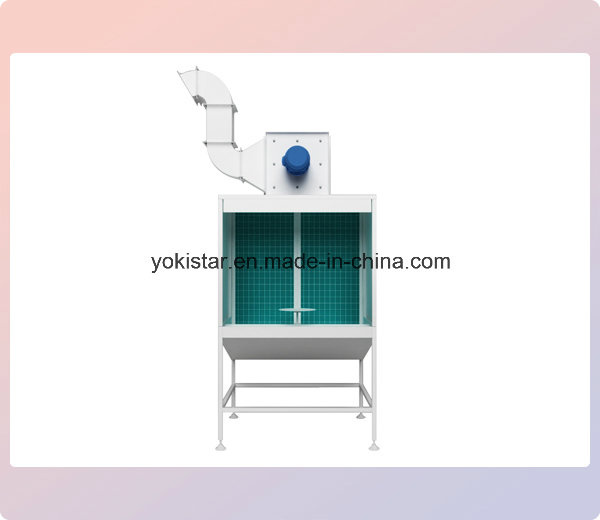

Intake Centrifugal Fan Bench Spray Booth
| Price: |
US $ 1320-1720/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Model: YS-B3
Outside dimention: 1200x1000x1850mm(LxWxH)
Any Size Requirements Can Be Met.
Applied for automotive parts spraying
A. Bench spray booth are a great solution for individuals or businesses that use conveyorized and batch-type production systems.
B. Having an open front and relatively small in size, multiple booths can be used as workstations to complete various stages of paint coatings.
C. A bench spray booth is designed like an open front spray booth, with a single intake centrifugal fan or axial fan installed in the top to exhaust fumes and overspray.
D. Bench spray booth can be applied to woodworking, ceramics and automotive parts fields.
Warranty
The goods are guaranteed for 12 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
| Outside Dimension | 1200x1000x1850mm(LxWxH) |
| Body | Wall Panel: 1.2mm Galvanized bending steel, powder coated. The rear panel can be took off for cleaing.
Roof Panel: 2.0mm Galvanized bending steel, powder coated. |
| Lighting system | 1units× 1pc=1pc20W anti-explosion lamp. |
| Ventilation system | The fresh air comes into the room by from the outside naturally.Exhaust air from the top side, with anti-explosion axial fan, air capacity: 3000m3/h. |
| Filtering System | Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
| Control System | Voltage: 1x220V,50HZ, Switch: Power,Lighting,Fan. |
| Prod Model: |
YS-B3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Exhaust: |
Anti-Explosion Axial Fan |
| Heating: |
Infrared Curing Lamps(Optional) |
| Voltage: |
1X220V,3X380V,Your Special Voltages Are Accepted |
| Optional Colour: |
White, Blue, Orange and Red |
| Port: |
Huangpu Port or by Your Order |
| Certification: |
CE |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
Steel & Aluminum |
| Brand: |
Yokistar |
| Coating: |
Painting & Powder Coating |
| Airflow Direction: |
Full Downdraft Airflow Way |
| Heating Mode: |
Infrared Curing Lamps(Optional) |
