Innovative Design Heavy Load Industrial Reels

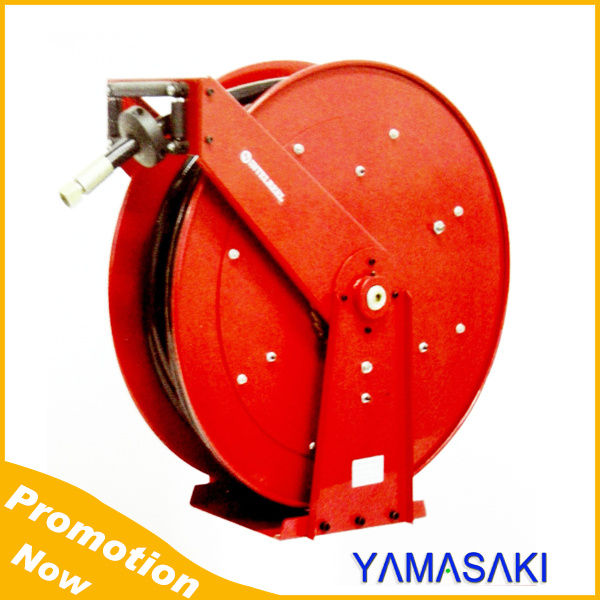

Name: Innovative Design Heavy Load Industrial Reels
Brand: ibuyautoparts.com
SKU: 767003515
Availability: InStock
Rating: 4.5 (92 reviews)

Price:	US $ 245-500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Series 600
Series 600 spring retractable reels dual pedestal, with high quality ball bearing, precise and
reliable swivel transition device, and optional inlet on both sides of the unique innovation design
results. These reels are all-steel construction and a baked-on powder coat finish combine
to produce a rugged corrosion-resistant, which have dual pedestal base and reinforced guide arm.
The product can store up longer hoses so that it is suitable for a wide variety of heavy duty
applications, it still has very excellent performance using in relatively poor condition of mining,
construction machinery, off -shore areas, etc.
This model also feed on both sides to maintain a selector and innovative design.

Fluid path: 3/8", 1/2",3/4",1"

The Specifications:

App.	Pressure rating	Hose inner dia.	Hose length	Reel inlet	Reel outlet	Pin No. With hose
Air / Water / anti-freeze	2(300)	10(3/8)	25(82)	3/4"	3/8"	600020325
	2(300)	10(3/8)	30(100)	3/4"	3/8"	600020330
	2(300)	12(1/2)	25(82)	3/4"	1/2"	600020425
	2(300)	12(1/2)	30(100)	3/4"	1/2"	600020430
	2(300)	19(3/4)	15(50)	3/4"	3/4"	600020615
	2(300)	19(3/4)	20(65)	3/4"	3/4"	600020620
	2(300)	19(3/4)	25(82)	3/4"	3/4"	600020625
	2(300)	25(1)	15(50)	1"	1"	600020715
Oil / Water	14(2030)	12(1/2)	20(65)	M2×1.5	M22×1.5	600140420
	14(2030)	12(1/2)	25(82)	M2×1.5	M22×1.5	600140425
	8(1160)	19(3/4)	15(50)	M2×1.5	M27×1.5	600080615
	8(1160)	19(3/4)	25(50)	M2×1.5	M27×1.5	600080625
Grease	28(4060)	10(3/8)	20(65)	M2×1.5	M18×1.5	600280320
Grease	28(4060)	10(3/8)	30(100)	M2×1.5	M18×1.5	600280330

The advantagues of using reels

The application scenes

Prod Model:	Series 600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
