Infrared Lamp Spray Baking Booth Wld6000

Name: Infrared Lamp Spray Baking Booth Wld6000
Brand: ibuyautoparts.com
SKU: 692740575
Availability: InStock
Rating: 4.6 (113 reviews)

Price:	US $ 5000-18500/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

WLD6000 Infrared Lamp Spray Baking Booth Specifications:

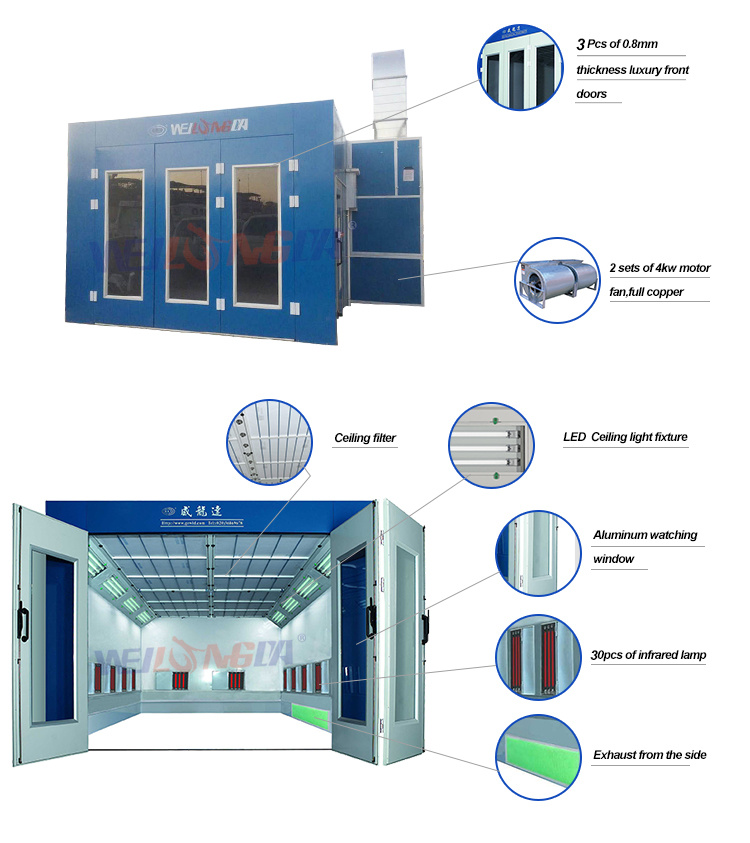

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.326mm thickness. Blue white, Red and Orange Colors are available. Galvanized steel roof panel.

Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2550(h). 1 pc of emergency door.Watching window with aluminum frame.

Air Circulation System: 2x4kw intake fan. Manual damper.

Heat System: consist of 10set,each set have a cover, a stainless steel mirror reflector and 3 tubes, total 30 tubes. Infrared Heat radiation have a feature of high penetration, efficient, no noise, pollution free etc.

Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 800 Lux.

Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

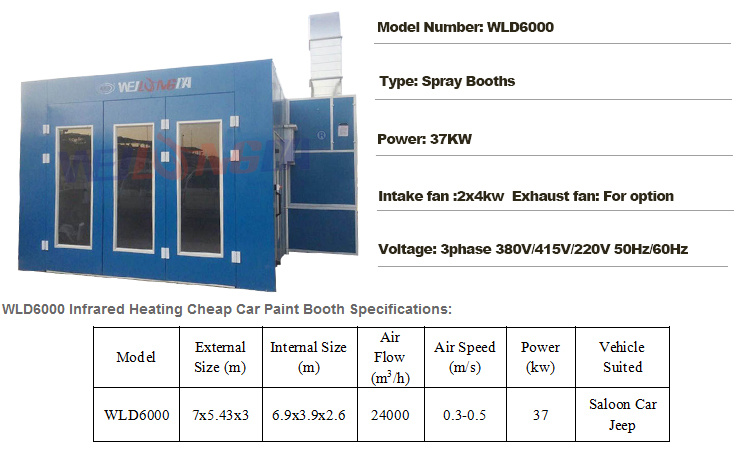

Prod Model:	WLD6000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Wld6000
External Size:	700054503000mm
Internal Size:	690039002600mm
Main Door Size:	3000*2550mm
Total Power:	37kw
Air Flow:	24000m3/H
Air Speed:	0.3-0.5m/S
Fuel Consumption:	0kg/Vehicle
Vehicle Suited:	Saloon Car/Jeep/SUV
Certification:	SGS, TUV
Condition:	New
Heating Mode:	Infrared;Diesel, Natural Gas
Substrate:	Steel and Aluminum
Paint Mist Treatment:	Dry Type, Filtered
Airflow Direction:	Downdraft Type
Brand:	Weilongda

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
