SPECIFICATION:
| Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2650 | Front Door(mm) | 3000x2600(WxH) | Total Power | 31kw |
| Basement | δ=0.8mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.5mm; 3 rows of diamond plate, 2 rows of grilles, made by 30mmx4mm flat steel, then paint. δ=2.5mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. |
| Cabin System | 50mm EPS panel, double 0.326mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. |
| Ventilation System | 2 sets 3kw YDW4.5L centrifugal fans for supplying, air capacity is 22000m3/h; The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with reinforcing ribs. |
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=0.8mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. |
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=800Lux. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. |
| Heating System | 3kw x 8 groups of fixed short infrared lamps on both sides, total is 24kw. |
| Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist. |
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. |
| Optional | Wall Panel | 50mm rock wool panel, with double steel 0.376/0.426mm steel, density is >=100kgs |
| | Side Lights | 20pcsx30w in vertically embedded into the wall. The light box is with powder coating. |
| | Environmental Cabin | 1x4kw centrifugal fan with floor filter and active carbon filter. in Draw-out type plate structure |
Room system
1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets.
2. Main door frames are made of bending section, emergency door at the main door.
3. Room frames are fixed by galvanized sheet.
4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates.
5. Inside ramps construction.
Air circulation system
1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h
2. Air generator group consist of painted section bar and galvanized sheets.
3. Exhaust air duct consist of galvanized sheets and flanges.
4. On-load air velocity: 0.35m/s, air change rate: 320times/h
Purification system
1. Inlet air filter is high quality filter, it can catch 10um dust particle.
2. Roof filter is high-efficient filter, it can catch 5um dust particle.
3. Floor filter is fiber glass filter.

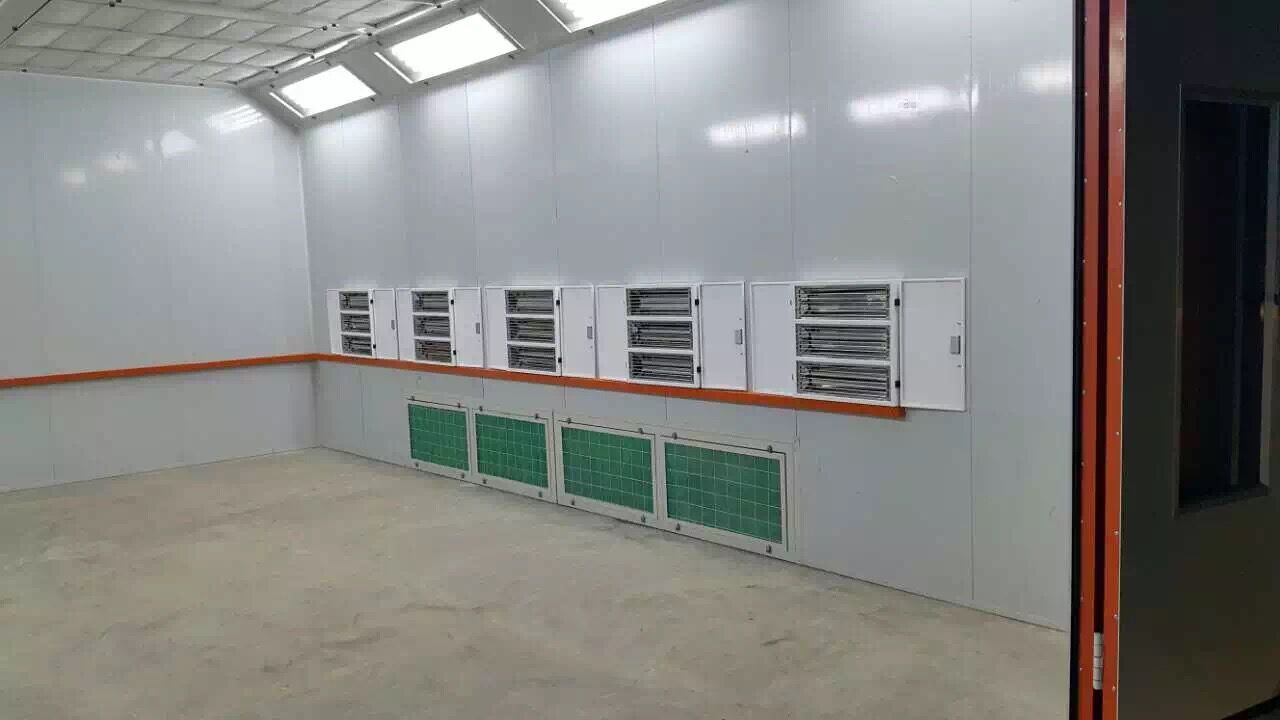

Heating system
Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps.
Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately.
Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C).
Lighting system
1. Roof lighting: 24pcs*36w Philips lamps.
2. Illuminance: 700Lux
3. Side lighting system is optional
Control system
1. It adopts high-quality electronic components, Major loop set Multiple protection.
2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc.
Exhaust gas disposal
1. Direct exhaust
2. Exhaust fan is optional
20'/40'HQ PCS
1 set/20'GP, 3 sets/40HQ
