Introduction

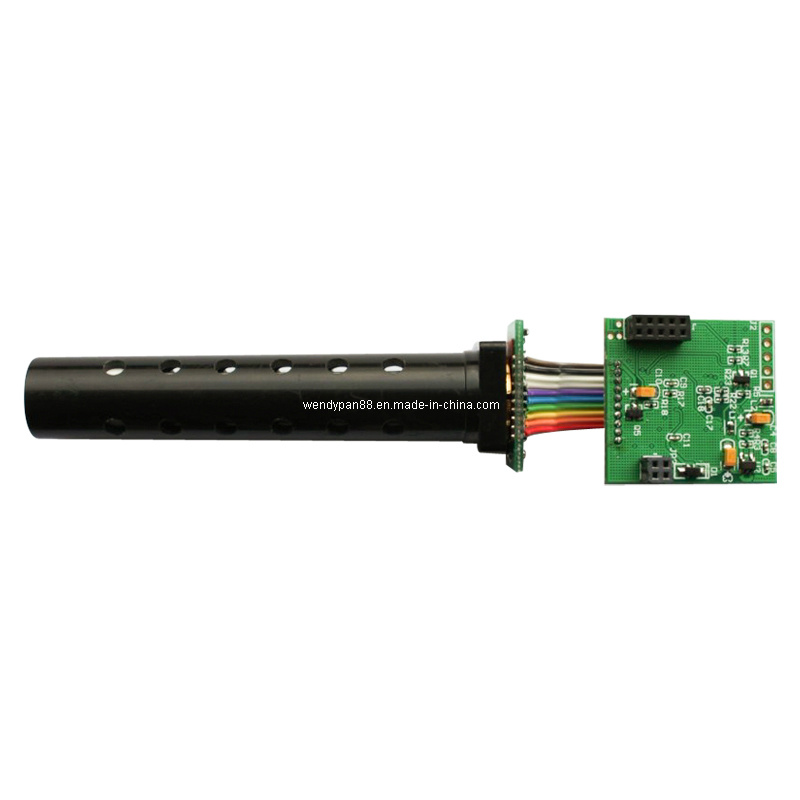

IRM203 is one of the general NDIR CO2 gas modules, which adopting NDIR principle, consists of patented light chamber, precise electric circuit and intelligent software. With the help of single light source, dual channel detector, and microprocessor, IRM 203 can perform the gas concentration signal in different ways. In this product, temperature compensation has been realized as well as the revision of the nonlinear relationship. It has all the advantages from NDIR products, such as good selectivity,high sensitivity, long life and independence to O2.
IRM203 is suitable for the test in flexible occasion, and its calibration possibility in clean air makes it a good choice in portable instrument, for example educational apparatus. All the products can be customized according to your requirement.
| Description | Symbol | Value | Unit |
| Storage temperature | Tstg | -20 to 80 | °C |
| Working temperature | TA | -10 to +50 | °C |
| Working humidity | HA | 0 to 95 | % RH |
| Working pressure | PA | 0.8 to 1.2 | ATM |
Electric characteristics
| Description | Symbol | Min. | Typical | Max. | Unit |
| Supply power | Vs | 4.5 | 5 | 5.5 | V |
| Light current | Iavg | 50 | 60 | 70 | mA |
| Frequency | f |
| 1 |
| Hz |
| Preheat time | twarm |
| 30 |
| Sec |
Performance characteristics
| Description | Min | Typical | Max | Unit |
| Detection range |
| 5000 | 100000 | ppm |
| Detection accuracy | - | 1000 ±60
1500 ±95
2000 ±125
3000 ±175
5000±280
50000±3000
100000±8000 | - | ppm |
| T90 | diffusing | - | 45 | 60 | Sec |
| pumping | - | - | - | Sec |
| Repeatability | Zero |
| <±80 |
| ppm |
| 50% FS | - | <±8% FSD | - |
|
| Lifetime | 3 | 5 | 10 | Year |
