Industrial Welding Double Hose Reel

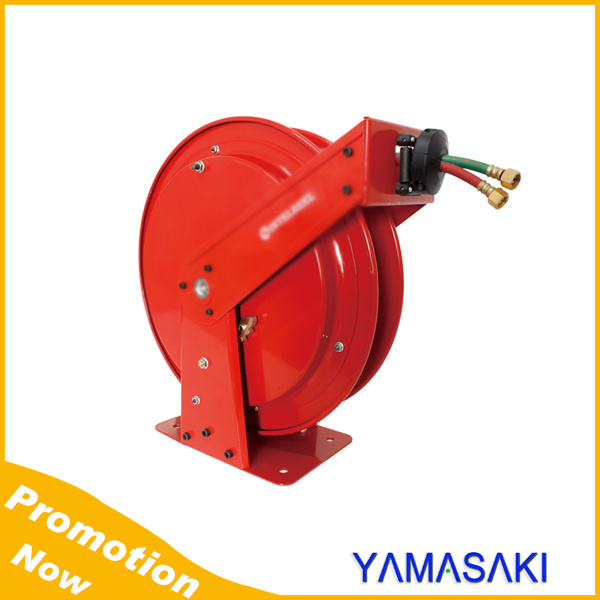

Name: Industrial Welding Double Hose Reel
Brand: ibuyautoparts.com
SKU: 772194405
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 255-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

410 series reel is in full on the basis of user feedback visits designed,
light weight, the successful development of the series greatly facilitate
the user experience.Series 410 reels are economical reel
Fluid path: 1/4", 5/16", 3/8", 1/2",3/4"
The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freeze	2(300)	6 (1/4)	70(229)	1/2"	M22×1.5	-	410020100
Air/Water/Anti-freeze	2(300)	8 (5/16)	50(164)	1/2"	M22×1.5	-	410020200
Air/Water/Anti-freeze	2(300)	10(3/8)	40(131)	1/2"	M22×1.5	-	410020300
Air/Water/Anti-freeze	2(300)	12(1/2)	30(98)	1/2"	M22×1.5	-	410020400
Air/Water/Anti-freeze	2(300)	19(3/4)	20(65)	3/4"	M30×1.5	-	410020600
Oil/Water	19(2780)	6 (1/4)	60(196)	M22×1.5	M22×1.5	-	410190100
Oil/Water	15(2280)	10(3/8)	50(164)	M22×1.5	M22×1.5	-	410150300
Oil/Water	14(2030)	12(1/2)	30(98)	M22×1.5	M22×1.5	-	410140400
Oil/Water	8(1160)	19(3/4)	20(65)	M27×1.5	M30×1.5	-	410080600

Prod Model:	DW 400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
